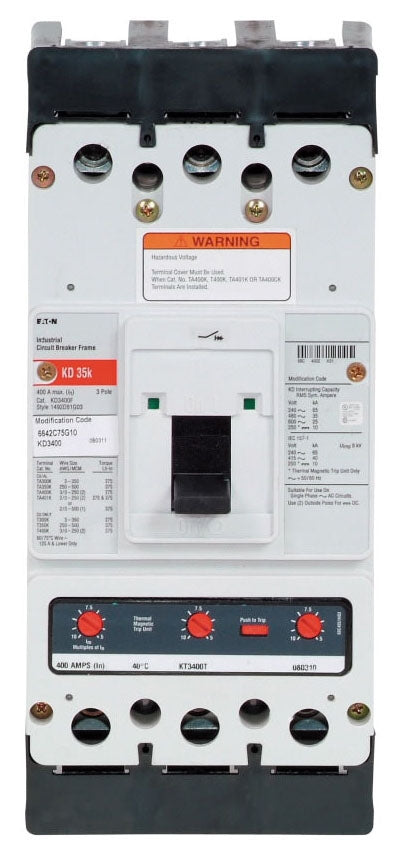

KD3400KX02Y18 - Eaton 400A 600VAC/250VDC 3-Pole K-Frame Molded Case Circuit Breaker Series C Fixed Thermal Magnetic Trip

KD3400KX02Y18

KD3400KX02Y18 is an Eaton Series C molded case circuit breaker designed for reliable protection in electrical distribution systems.This 3-pole circuit breaker features a K-frame with a fixed thermal and fixed magnetic trip unit, rated for 400 amperes at 600 VAC and 250 VDC. It offers an interrupt rating of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, suitable for demanding industrial applications. The breaker is UL Listed and supports optional line or load terminals.

• Amperage Rating: 400 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: Three-pole
• Frame Type: K-Frame
• Series: Series C
• Trip Type: Fixed thermal, fixed magnetic
• Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
• Frequency Rating: 50 to 60 Hz
• Certifications: UL Listed
• Terminals: Optional line or load
• Mounting Type: Molded case switch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KD3400KX02Y18
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KD
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Frame Size : K Frame
• Protection : Non-Automatic

Product Data

• UPC : 786685365596
• GTIN : 00786685365596
• Country of Origin : Dominican Republic
• Dimensions : 1 in x 1 in x 4.1 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL Listed
