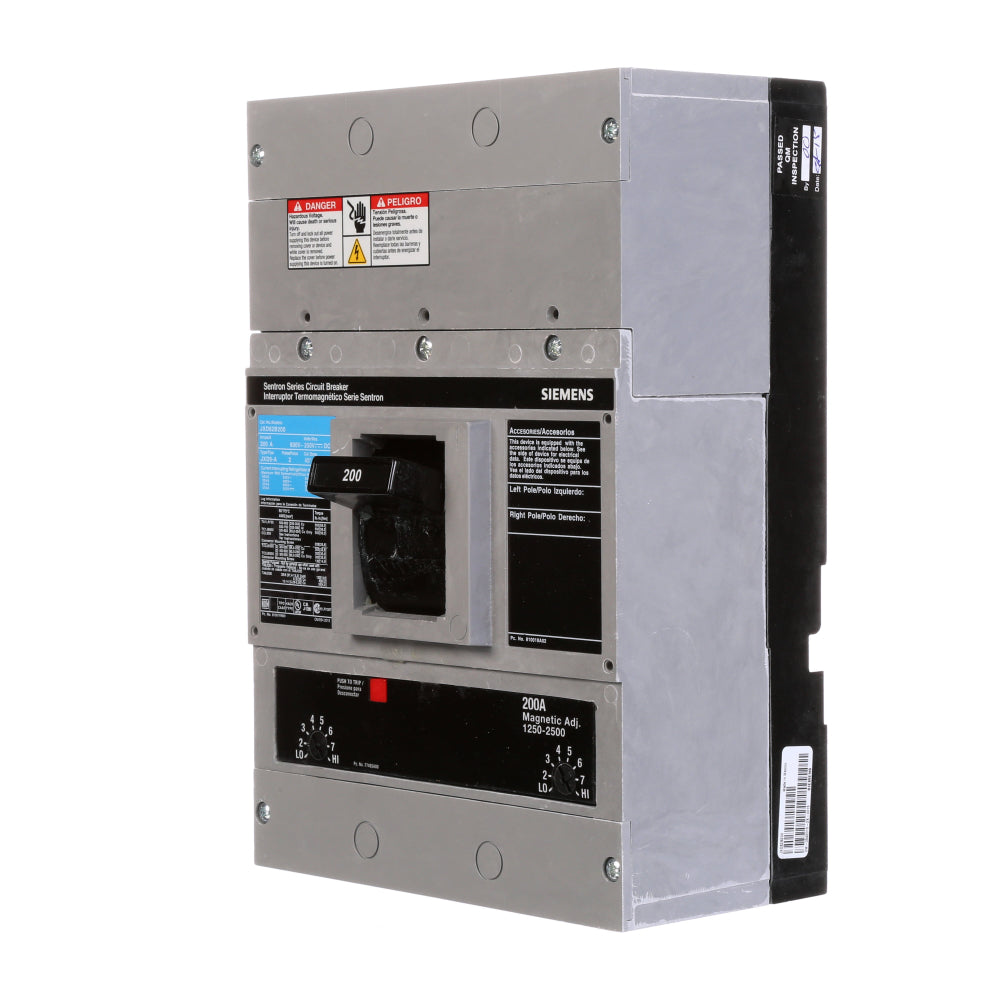

JXD62B200 - Siemens 200A 600V 2-Pole Molded Case Circuit Breaker JD Frame

JXD62B200

JXD62B200 is a Siemens 2-pole molded case circuit breaker rated for 200 amps and 600 volts, designed for reliable circuit protection.This Siemens JXD62B200 breaker features a JD frame with a 2-pole configuration, 200 amp trip rating, and a voltage rating of 600 volts AC. It has a bolt-on mounting type and a thermal magnetic trip unit. The interrupt rating is 25,000 amps at 600 volts AC, suitable for industrial and commercial applications. This breaker is non-interchangeable and meets industry certifications for safety and performance.

Key Specifications
• Amperage: 200A
• Voltage Rating: 600V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 600V AC
• Frame/Series: JD Frame
• Trip Unit: Thermal Magnetic
• Non-Interchangeable Trip
• Phase: Single
• Certifications: Industry Standard Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: JXD62B200
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : JXD
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : JD Frame
• Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643212985
• GTIN : 00783643212985
• Country of Origin : Mexico
• Dimensions : Width 7.5" Height 11" Depth 4"
• Weight : 15.201
• Standards : RoHS
• Certification : UL, IEC
