JRA36250U44X - Schneider Electric PowerPact J 250A 3 Pole 600VAC 100kA I-Line Molded Case Circuit Breaker

JRA36250U44X

JRA36250U44X is a Schneider Electric PowerPact J-Frame molded case circuit breaker designed for reliable overcurrent protection and switching in industrial and commercial AC power systems. This breaker features a 3-pole configuration, 250A rated current, and is rated for 600VAC with a 100kA interrupt rating, making it suitable for demanding applications.Engineered for I-Line plug-in mounting, the JRA36250U44X includes a Micrologic 6.2A trip unit with LSIG protection functions, providing advanced monitoring and protection capabilities. The breaker is built to meet industry standards for safety and performance in high-capacity electrical environments.

• Part Number: JRA36250U44X
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact J
• Rated Current: 250A
• Rated Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 100kA @ 600VAC
• Mounting Type: I-Line Plug-In
• Phase: 3
• Trip Unit: Micrologic 6.2A
• Protection Functions: LSIG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JRA36250U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• Country of Origin : United States

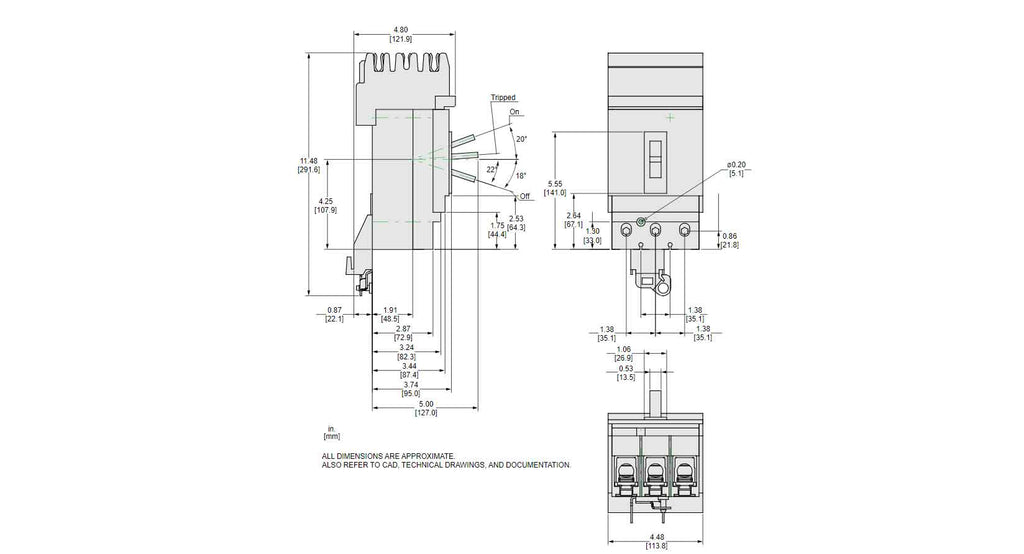

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
