JRA36250U43X - Schneider Electric 250A 3 Pole 600VAC I-Line Plug-In Circuit Breaker 100kA PowerPact J

JRA36250U43X

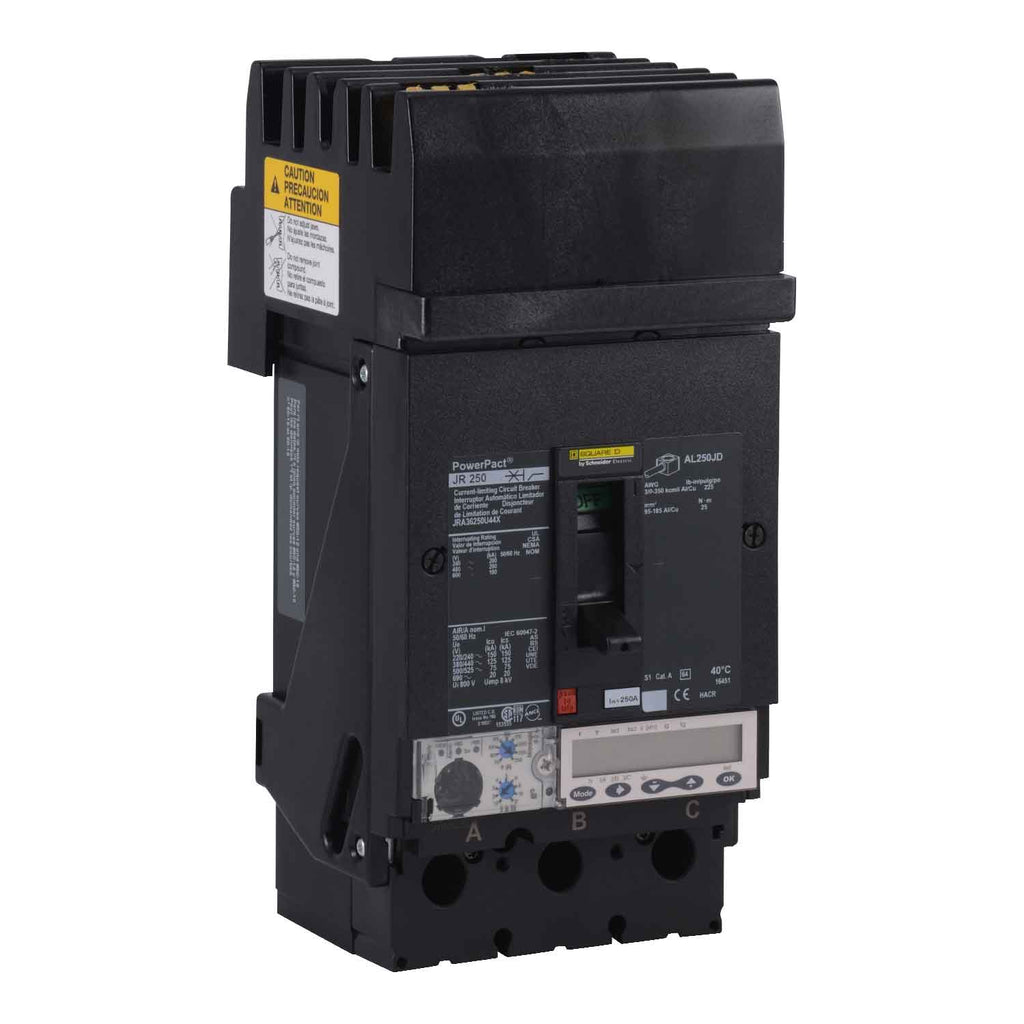

JRA36250U43X is a Schneider Electric PowerPact J circuit breaker with a 250 amp rating, 3 poles, and 600VAC voltage capacity designed for I-Line plug-in mounting.This circuit breaker features a 100kA interrupt rating at 600VAC, providing robust overcurrent protection and switching capabilities for AC systems. It includes a Micrologic 5.2A trip unit with 80% rated protection and an ABC trip curve, suitable for a wide range of industrial and commercial applications.

• Manufacturer: Schneider Electric
• Series/Frame: PowerPact J
• Amperage: 250A
• Poles: 3
• Voltage: 600VAC
• Interrupt Rating: 100kA
• Mounting Type: I-Line Plug-In
• Trip Unit: Micrologic 5.2A, 80%, ABC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JRA36250U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JRA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
