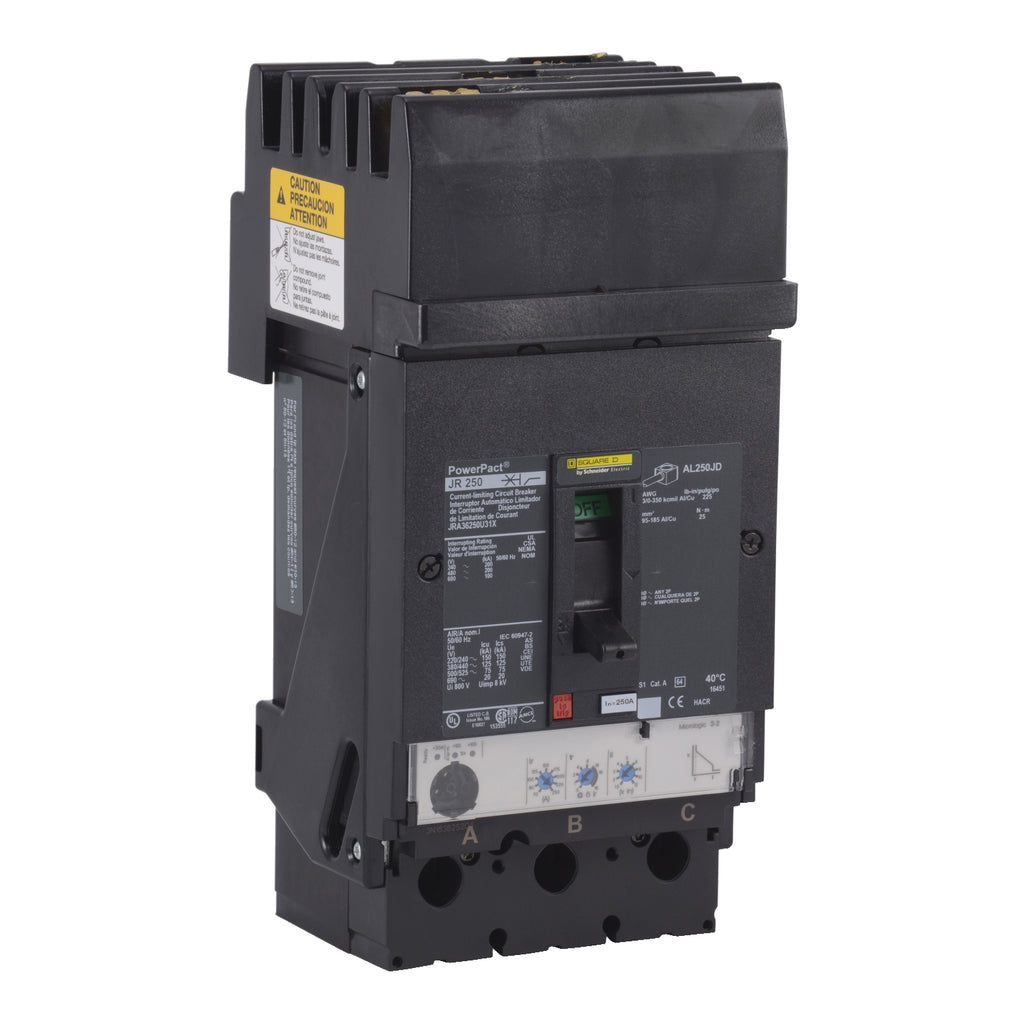

JRA36250U33X - Square D 250A 3-Pole 600VAC PowerPact J Circuit Breaker I-Line Plug-In 100kA Micrologic 3.2S

JRA36250U33X

JRA36250U33X is a Square D PowerPact J molded case circuit breaker rated for 250 amps, 3 poles, and 600 volts AC with a 100kA interrupt rating.This circuit breaker features an I-Line style plug-in mounting, a Micrologic 3.2S trip unit with LSI function, and is designed for three-phase power distribution applications. It provides reliable protection with an 80% rated current setting and is suitable for industrial and commercial electrical systems.

• Amperage: 250A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 100kA at 600VAC
• Series/Frame: PowerPact J
• Trip Unit: Micrologic 3.2S with LSI
• Mounting Type: I-Line Style Plug-In
• Phase: 3
• Rated Current Setting: 80%
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JRA36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JRA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 606486283557
• GTIN : 03606490000000
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
