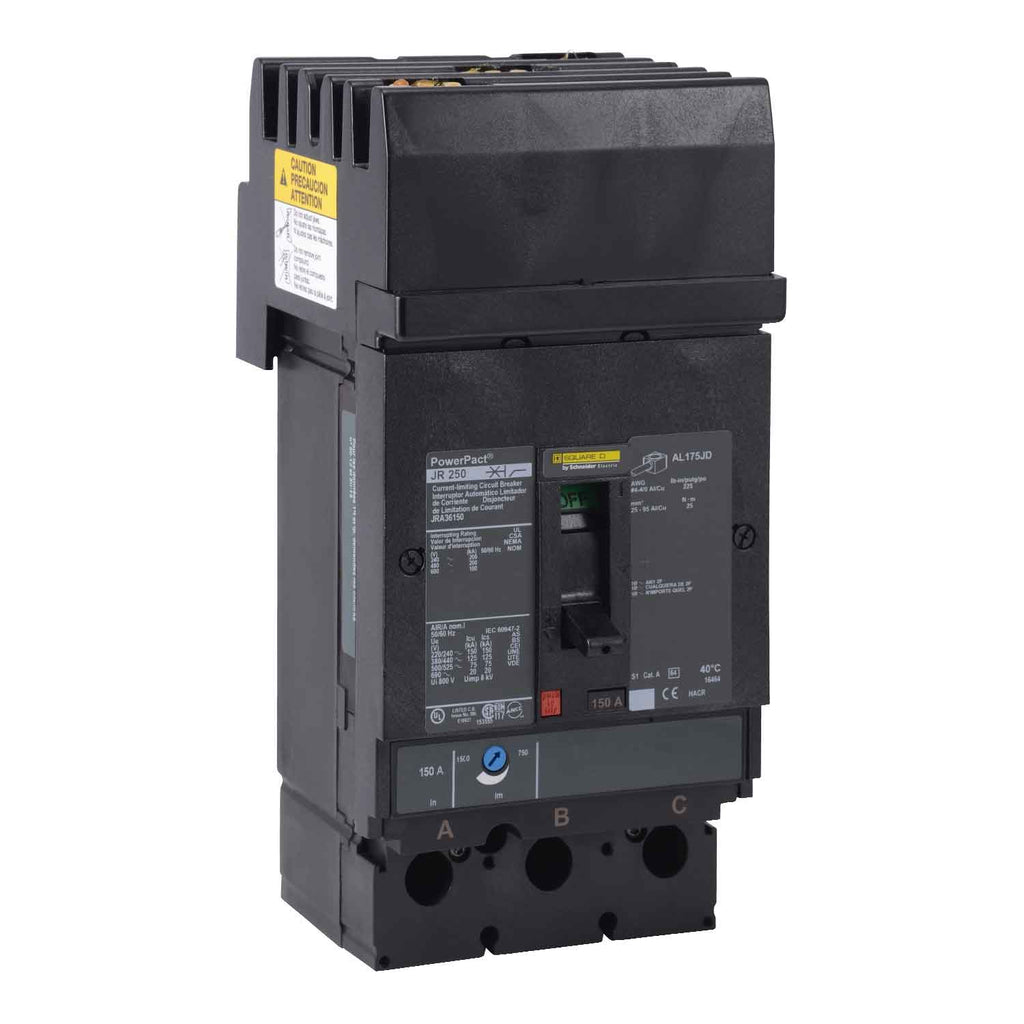

JRA36150 - Square D 150 Amp 3 Pole 600V Molded Case Circuit Breaker

JRA36150

JRA36150 is a Square D molded case circuit breaker designed for I-Line style plug-in installation with 150 amp rated capacity at 600 volts. This 3-pole breaker provides thermal-magnetic overcurrent protection suitable for industrial and commercial power distribution applications. The breaker features a 250 amp frame rating and accepts 4-4/0 AWG wire connections.

• Amperage Rating: 150 Amp
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Size: 250 Amp
• Interrupt Rating: 150 kA at 600V
• Mounting Style: I-Line Plug-In
• Tripping Mechanism: Thermal-Magnetic
• Terminal Connection: I-Line Lug
• Wire Size: 4-4/0 AWG
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JRA36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Temp Rating : 28-158 °F (-2-70 °C)

Product Data

• UPC : 060648628354
• GTIN : 03606486283547
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
