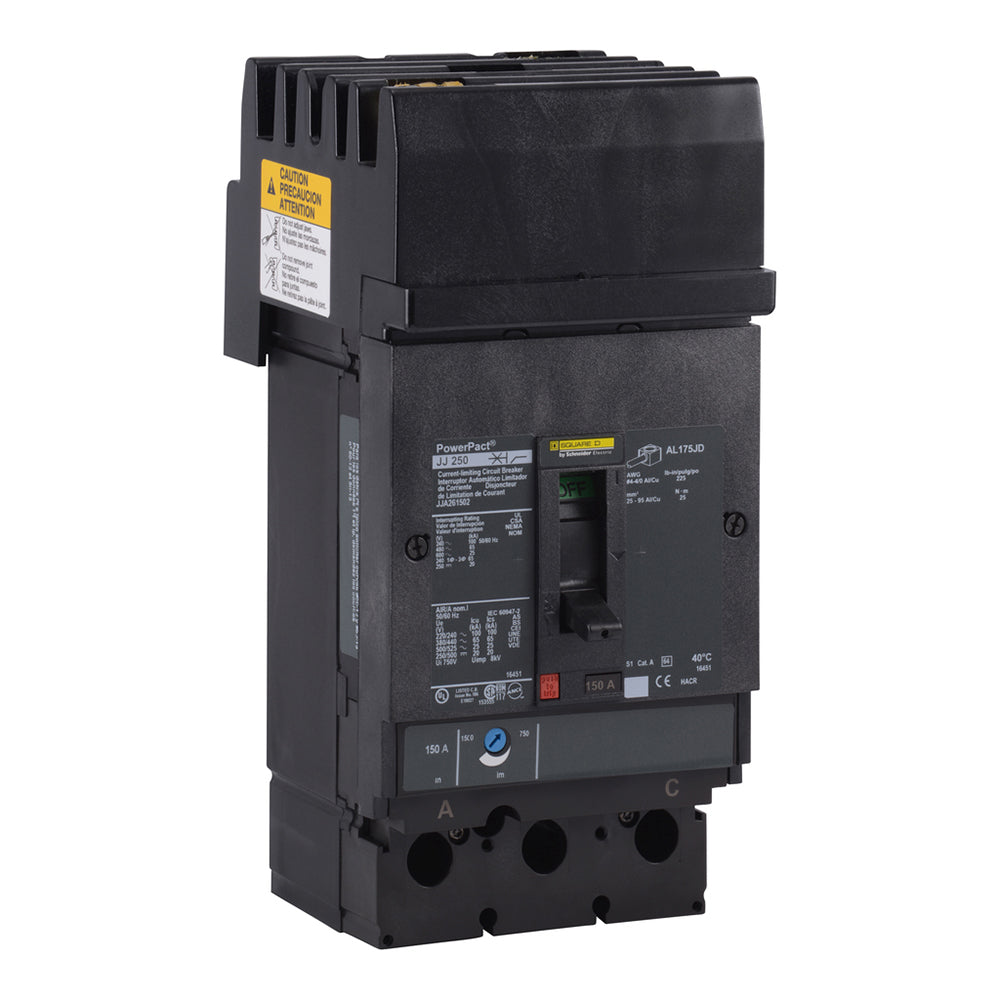

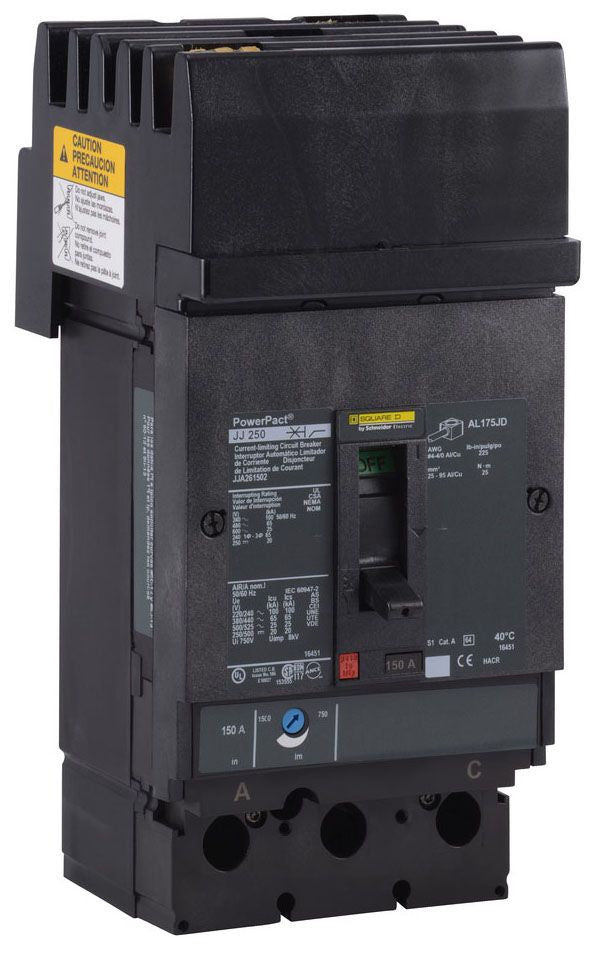

JJA262254 - Square D 225 Amp 2 Pole 600V PowerPact J-Frame I-Line Circuit Breaker

JJA262254

JJA262254 is a Square D PowerPact J-Frame circuit breaker designed for industrial power distribution applications.This 2-pole breaker has a rated current of 225 amps and is rated for 600 volts AC. It features a thermal-magnetic trip unit and is designed for I-Line mounting. The breaker has interrupt ratings of 100 kA at 240 VAC, 65 kA at 480 VAC, and 25 kA at 600 VAC, providing reliable protection against overloads and short circuits. It complies with UL, CE, CSA, and IEC certifications.

Key Specifications
• Manufacturer: Square D
• Part Number: JJA262254
• Amperage: 225 A
• Voltage Rating: 600 V AC
• Poles: 2
• Frame Type: J-Frame
• Mounting Type: I-Line
• Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed, CE, CSA, IEC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJA262254
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901442295
• GTIN : 00785901442295
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
