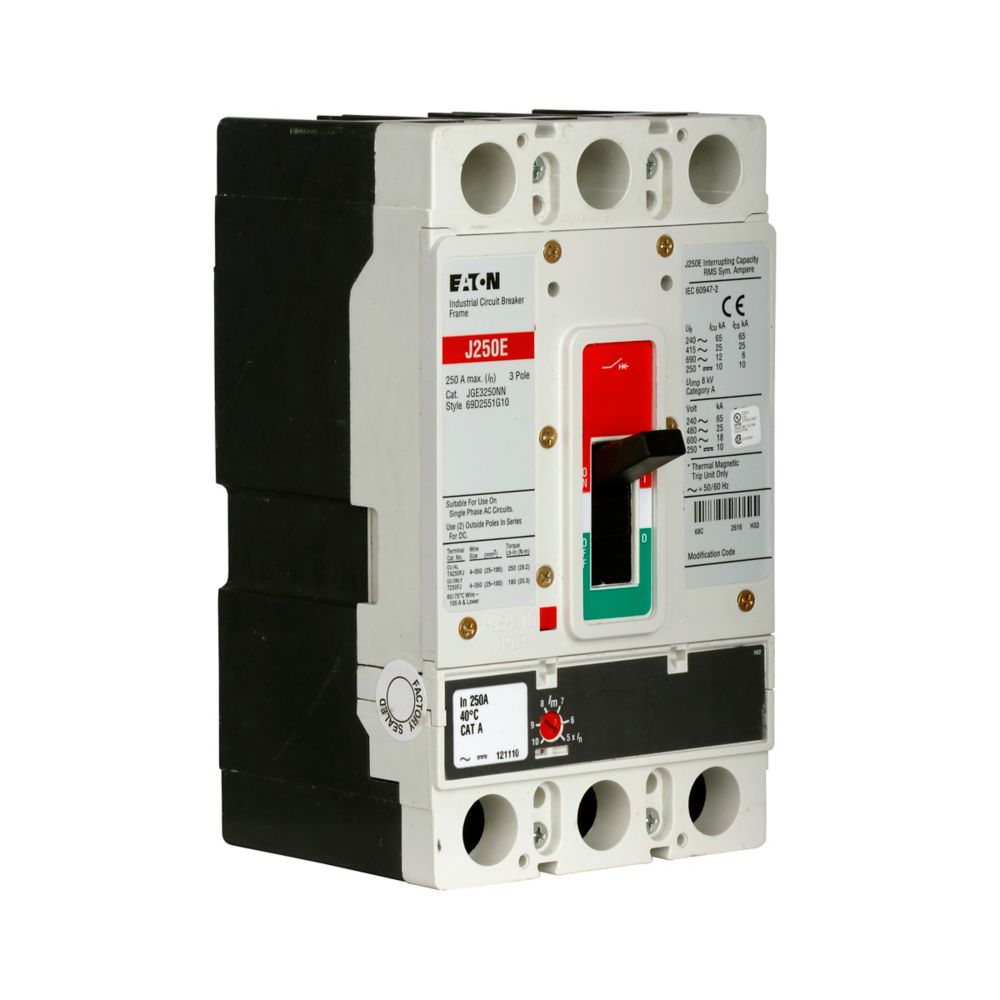

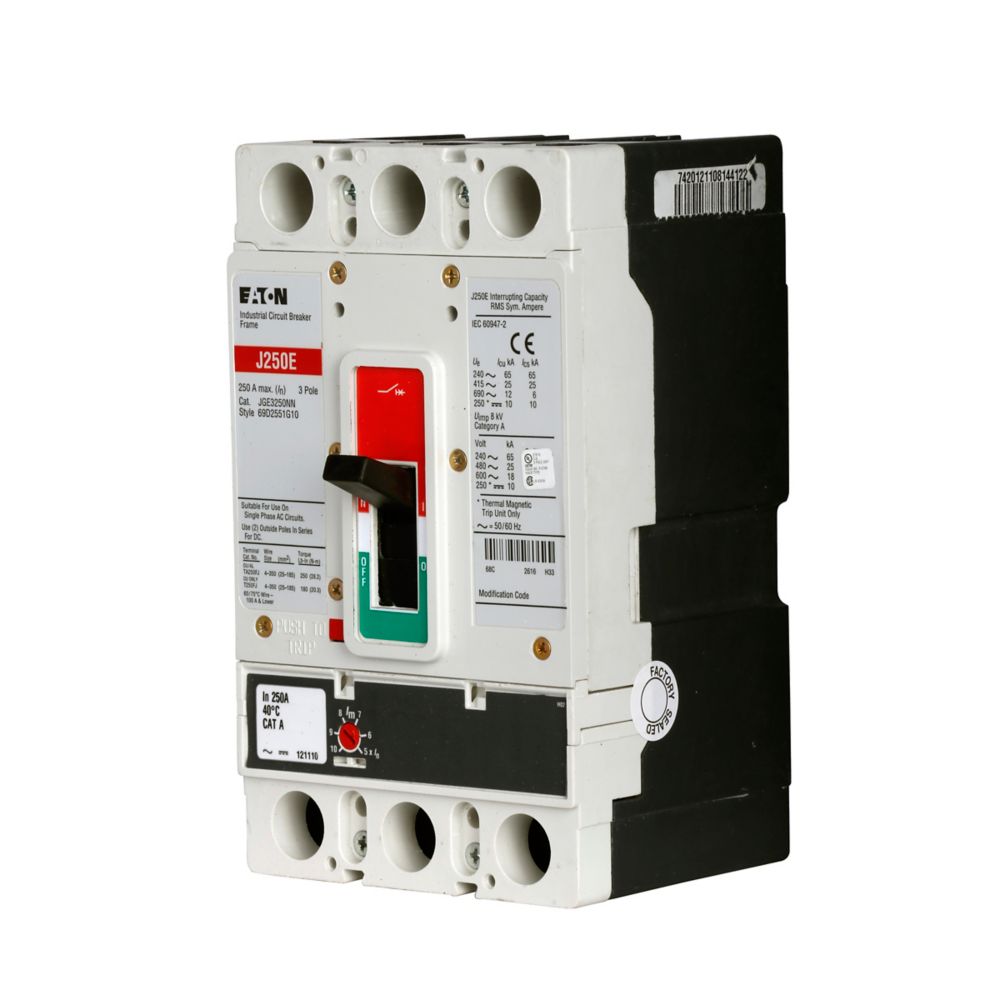

JGE325033G - Eaton 250A 600V 3-Pole Series G Molded Case Circuit Breaker Electronic LS Trip

JGE325033G

JGE325033G is a 250 amp, 600 volt, 3-pole molded case circuit breaker from Eaton's Series G with an electronic LS trip unit.This Eaton JGE325033G breaker features a 3-pole configuration with a 250A amperage rating and is designed for 600 VAC applications. It includes line and load terminals, metric mounting hardware, and an electronic long-time/short-time (LS) trip mechanism. The breaker has an interrupt rating of 65 kAIC at 240V AC, 25 kAIC at 480V AC, and 18 kAIC at 600V AC, ensuring reliable protection. It measures approximately 5 inches in height and width and 9 1/4 inches in length. The product is UL and IEC certified and carries Eaton's standard warranty.

• Amperage: 250A
• Voltage: 600 VAC
• Poles: 3
• Series/Frame: Series G
• Trip Unit: Electronic LS (Long-time/Short-time)
• Interrupt Rating: 65 kAIC @ 240V, 25 kAIC @ 480V, 18 kAIC @ 600V
• Mounting: Metric hardware
• Terminals: Line and Load
• Dimensions: 5" H x 5" W x 9 1/4" L
• Certifications: UL and IEC rated
• Country of Origin: US
• Warranty: Eaton standard 1 year from installation or 18 months from shipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGE325033G
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LS - Long-Time and Short-Time
• Protection : Solid State

Product Data

• UPC : 782116017904
• GTIN : 00782116017904
• Country of Origin : United States
• Dimensions : 9.25 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 6.5
• Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
