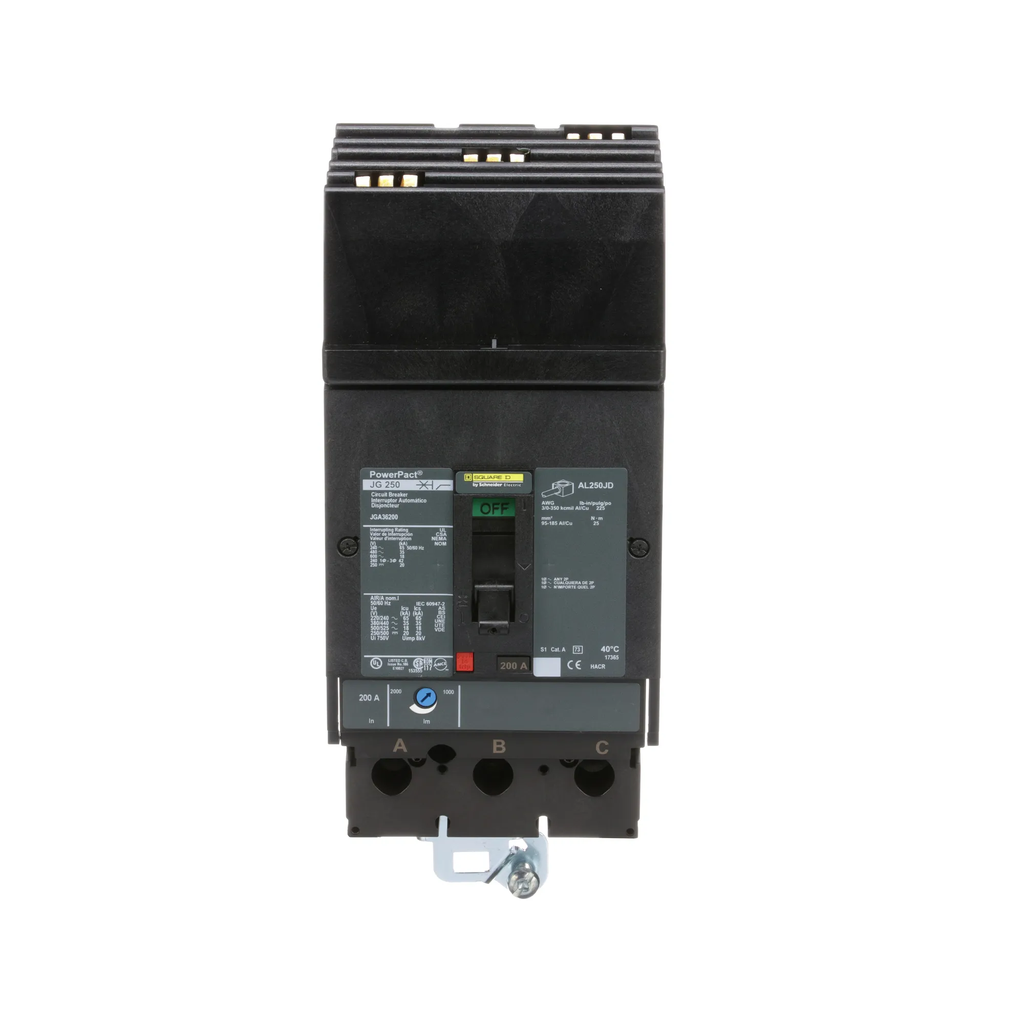

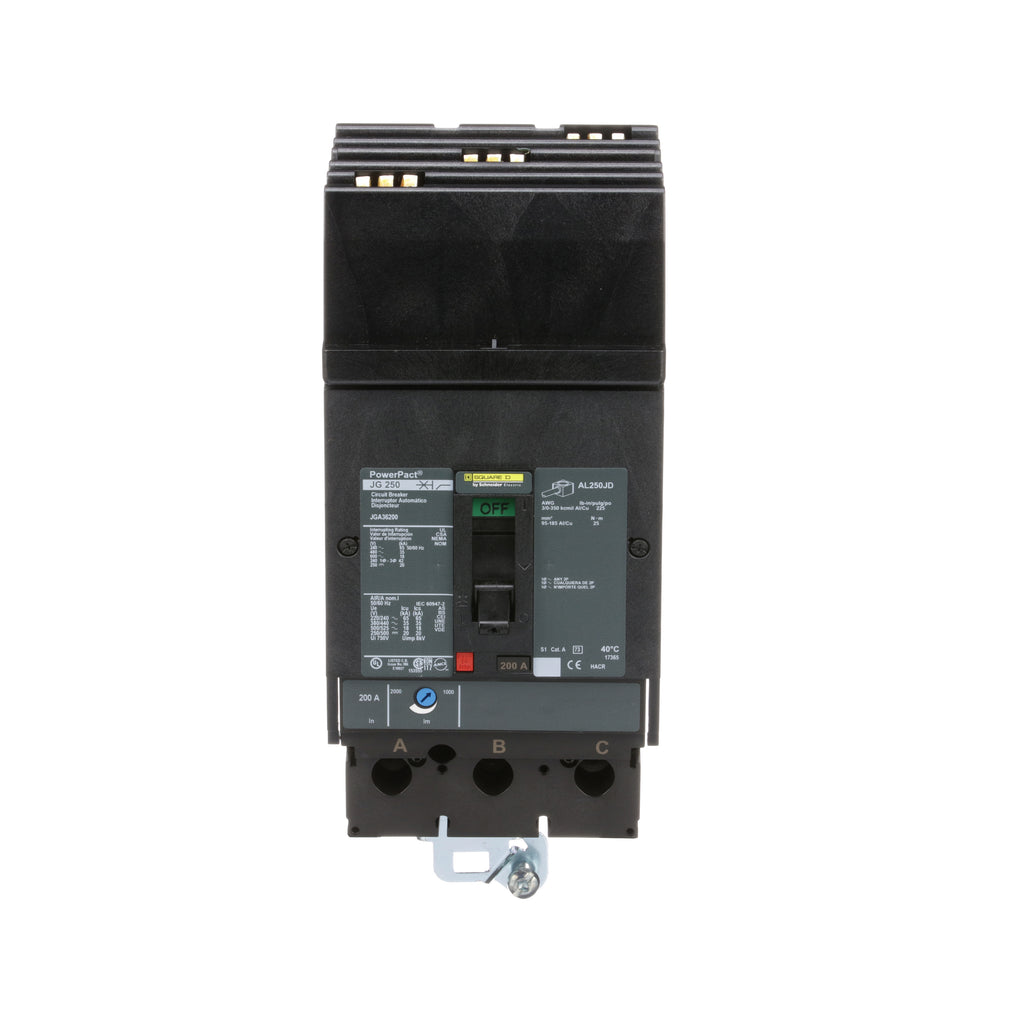

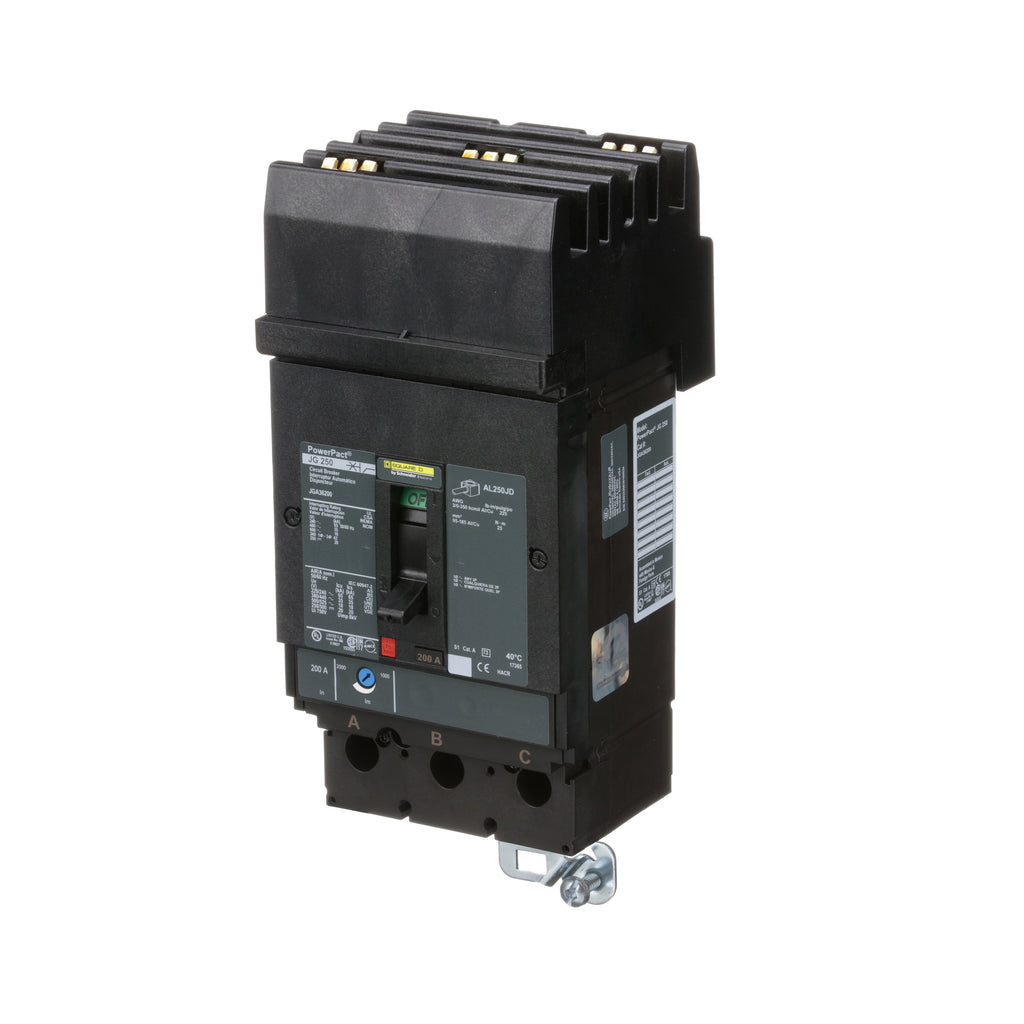

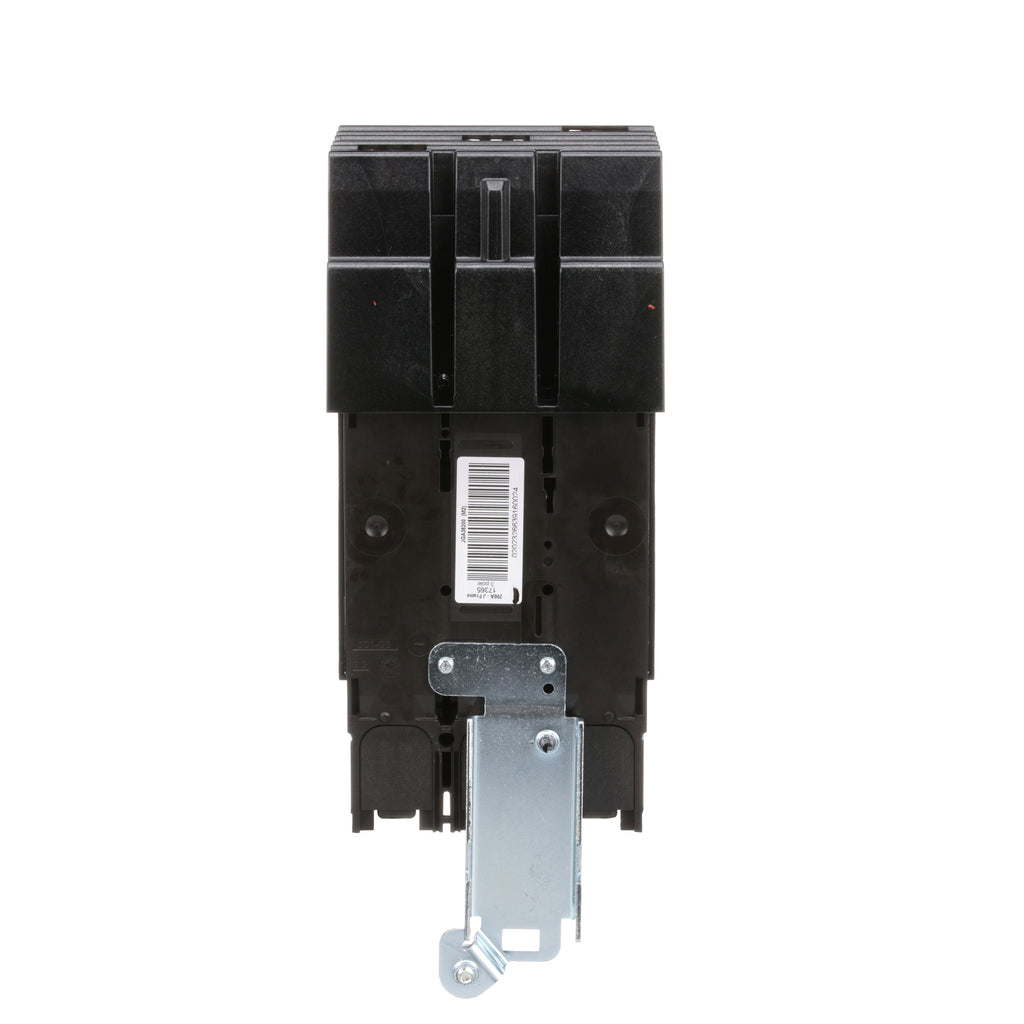

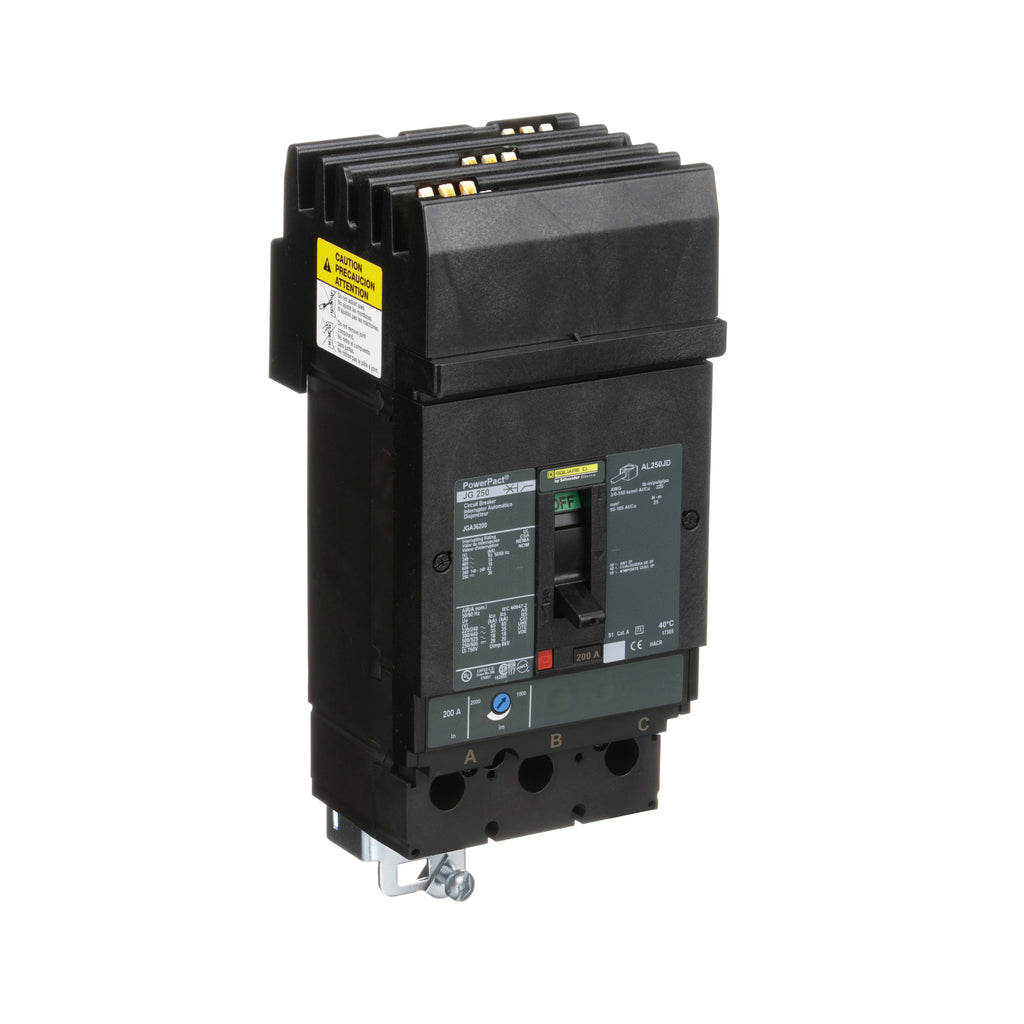

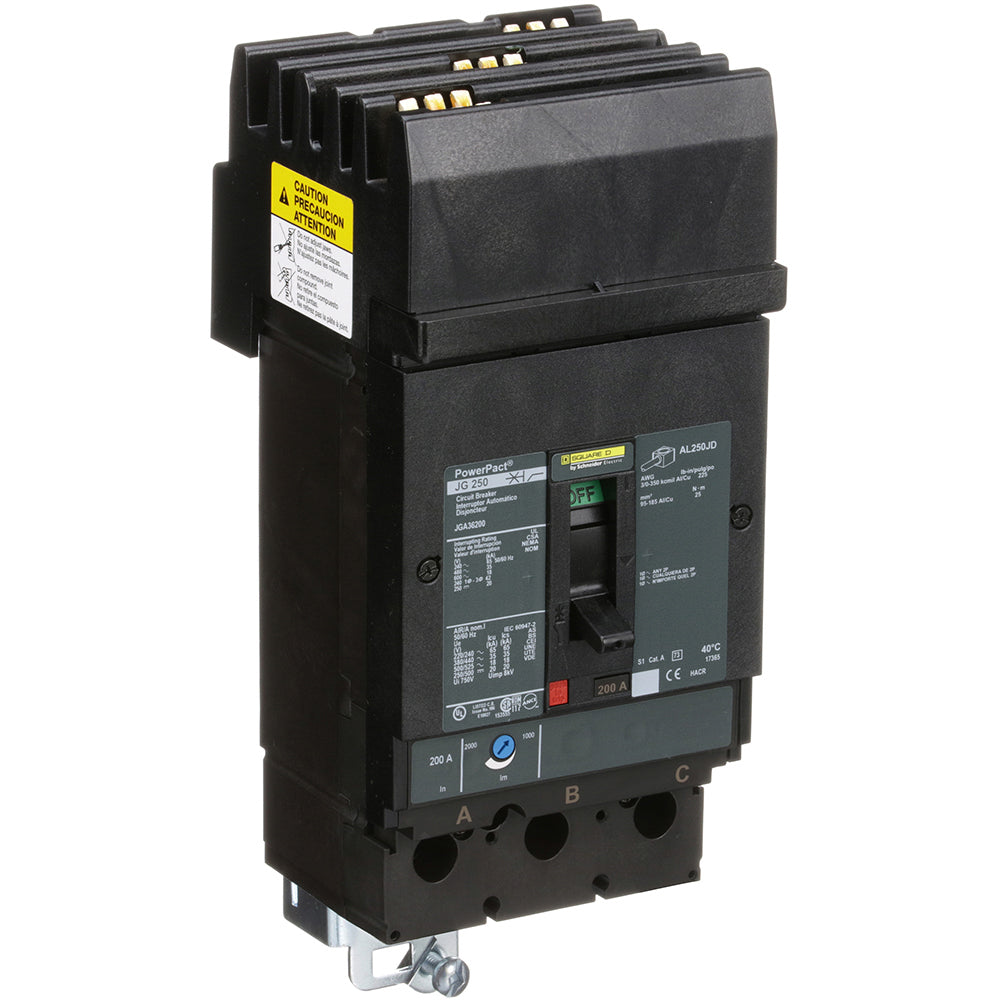

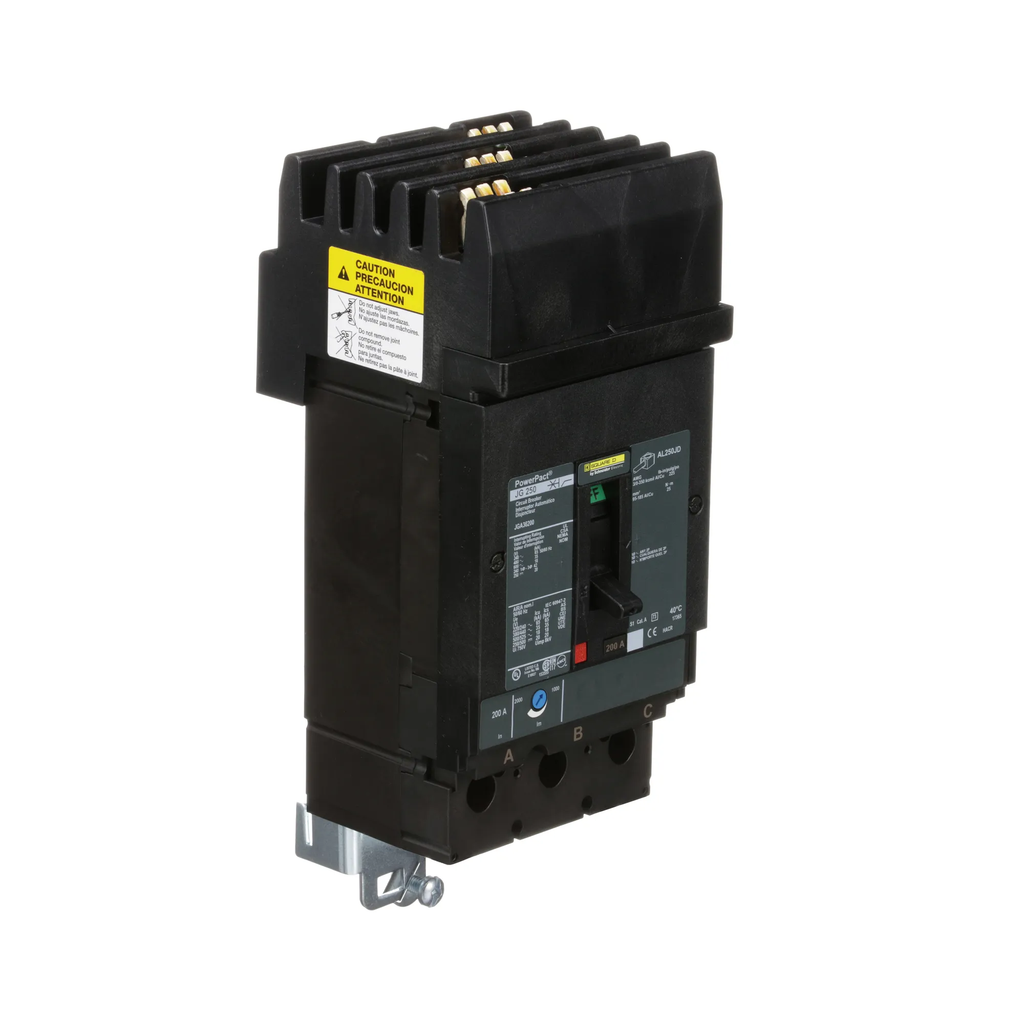

JGA36200 - Square D Powerpact J Frame Molded Case Circuit Breaker 200A 600V 3 Pole I-Line Thermal Magnetic

JGA36200

JGA36200 is a Square D Powerpact J Frame molded case circuit breaker rated for 200 amps, 600 volts, with 3 poles and thermal magnetic trip unit.This circuit breaker features an I-Line style plug-in mounting, 35kA interrupting rating at 480V, and long-time and instantaneous trip functions for reliable overload and short-circuit protection. It is UL listed and suitable for ABC phase connection in three-phase systems.

• Manufacturer: Square D
• Series/Frame: Powerpact J Frame
• Amperage: 200A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 35kA at 480V
• Trip Unit: Thermal Magnetic with LI functions
• Connection: I-Line style plug-in with load side lugs
• Certifications: UL Listed, CE, CSA, IEC, NOM

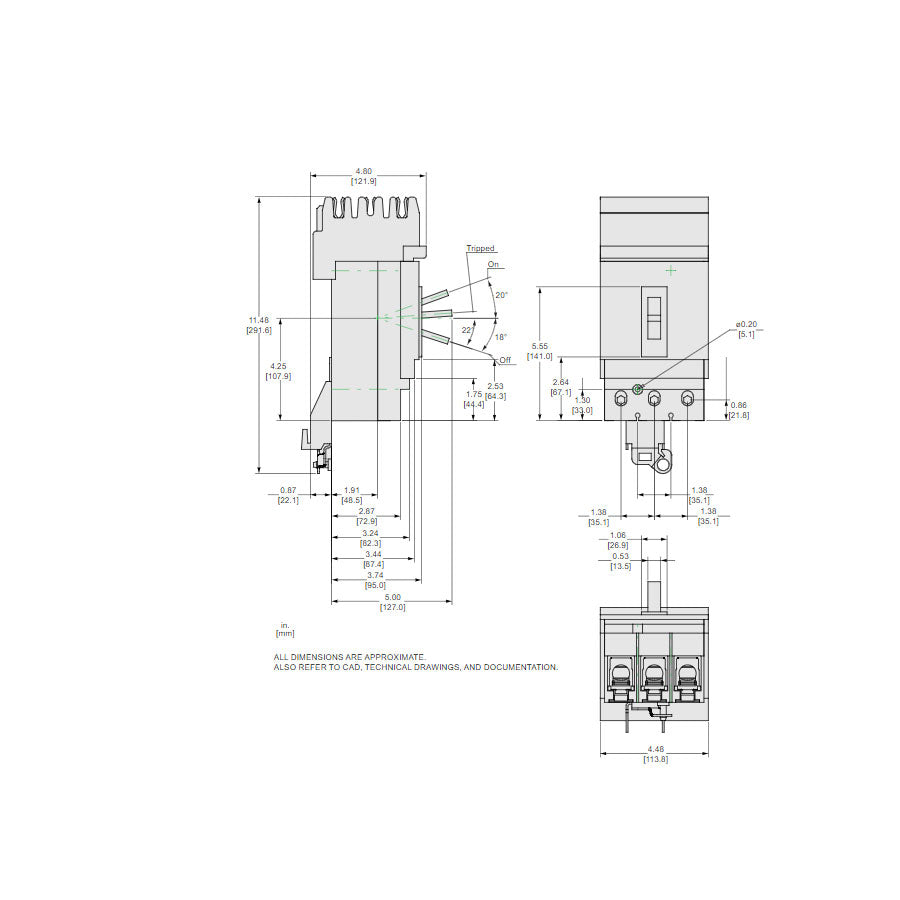

• Dimensions: 11.48" H x 4.48" W x 5.87" D
• Weight: 5.29 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGA36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGA
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901430735
• GTIN : 00785901430735
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.601 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
