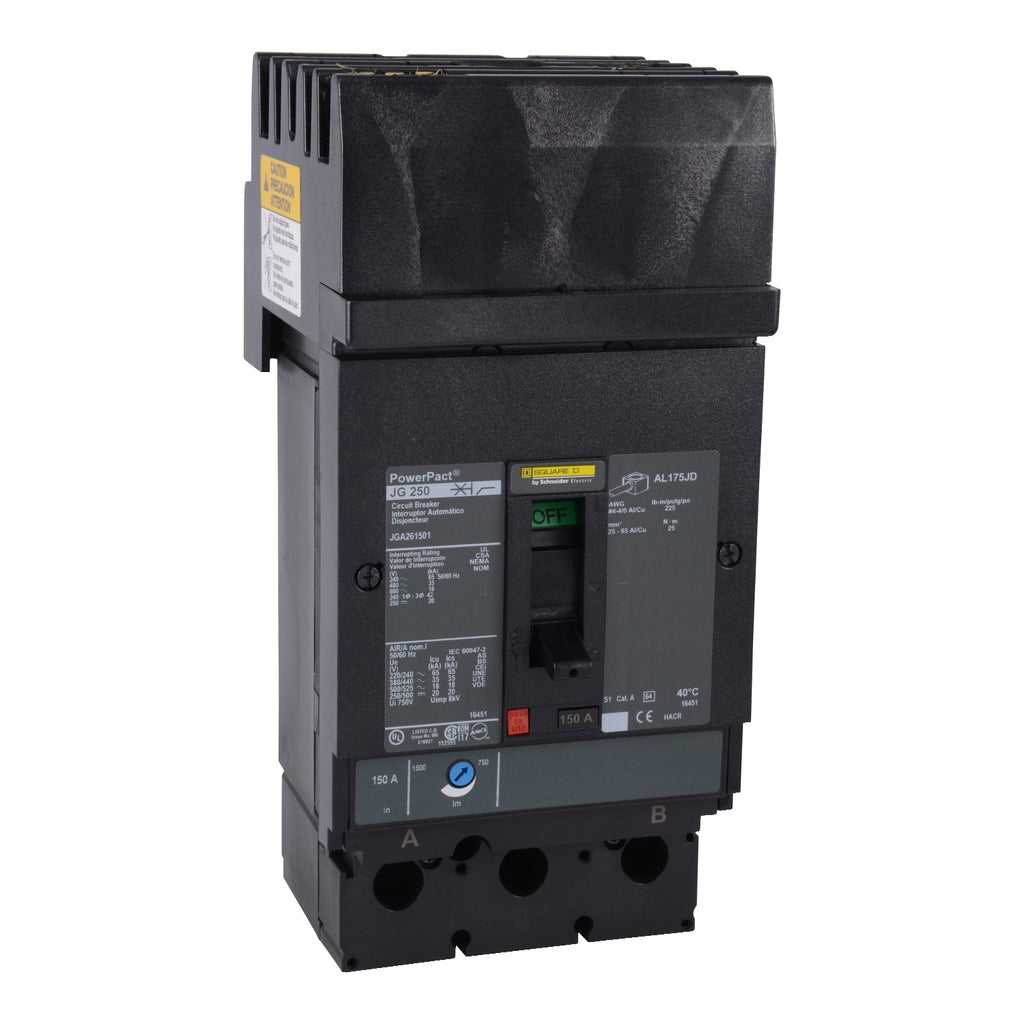

JGA261502 - Square D PowerPact J 600V 150A 2 Pole I-Line Plug-In Circuit Breaker

JGA261502

JGA261502 is a Square D PowerPact J series 2 pole, 600V, 150A I-Line plug-in molded case circuit breaker designed for reliable overcurrent protection and switching on AC systems. This breaker features a thermal magnetic trip unit and is suitable for use in Class 611/612 I-Line panelboards and switchboards. The JGA261502 is built for durability and safety, with a robust design that supports high interrupting capacity and easy installation. It is UL 489 listed and carries CSA, CE, NOM, IEC CCC, and UKCA certifications, ensuring compliance with major safety standards.

• Part Number: JGA261502
• Manufacturer: Square D
• Series/Frame: PowerPact J
• Amperage: 150A
• Voltage: 600V AC
• Poles: 2 Pole
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 35kA @ 480V, 65kA @ 240V
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA, CE, NOM, IEC CCC, UKCA
• Application: Class 611/612 I-Line Panelboards and Switchboards
• Wire Size: 4 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGA261502
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGA
• Voltage : 600
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/JG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 4/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901491309
• GTIN : 00785901491309
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
