JDB3250 - Eaton 250A 600V 3-Pole Series C Molded Case Circuit Breaker

JDB3250

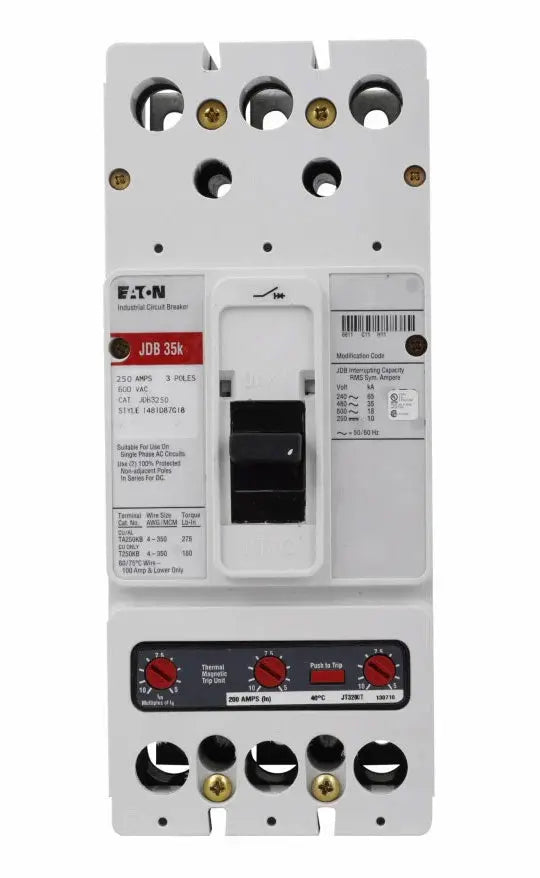

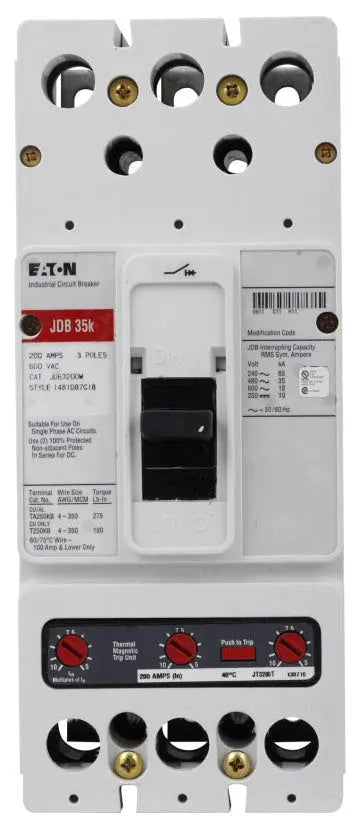

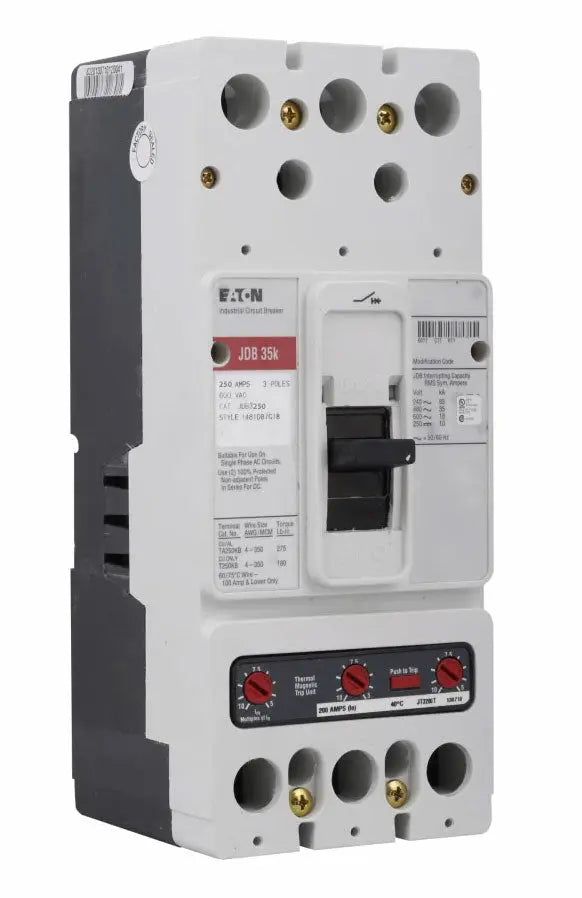

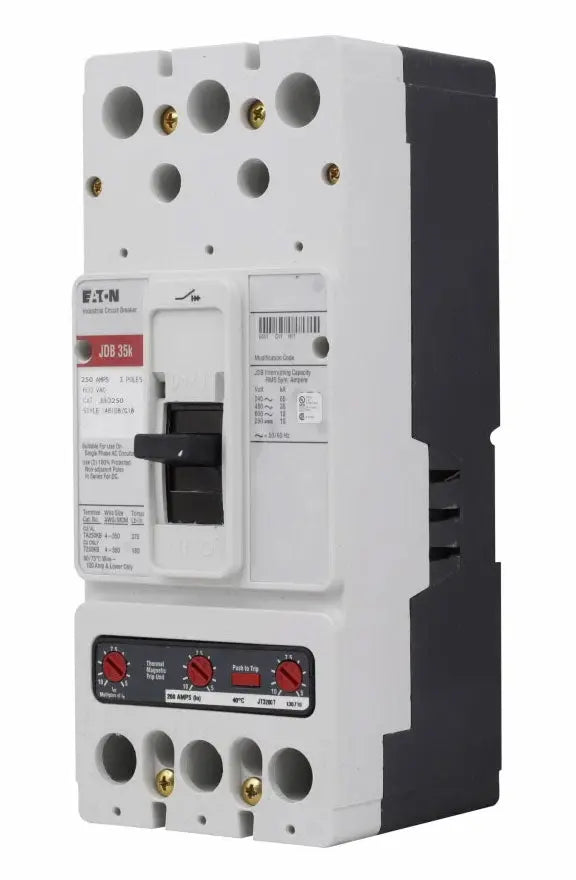

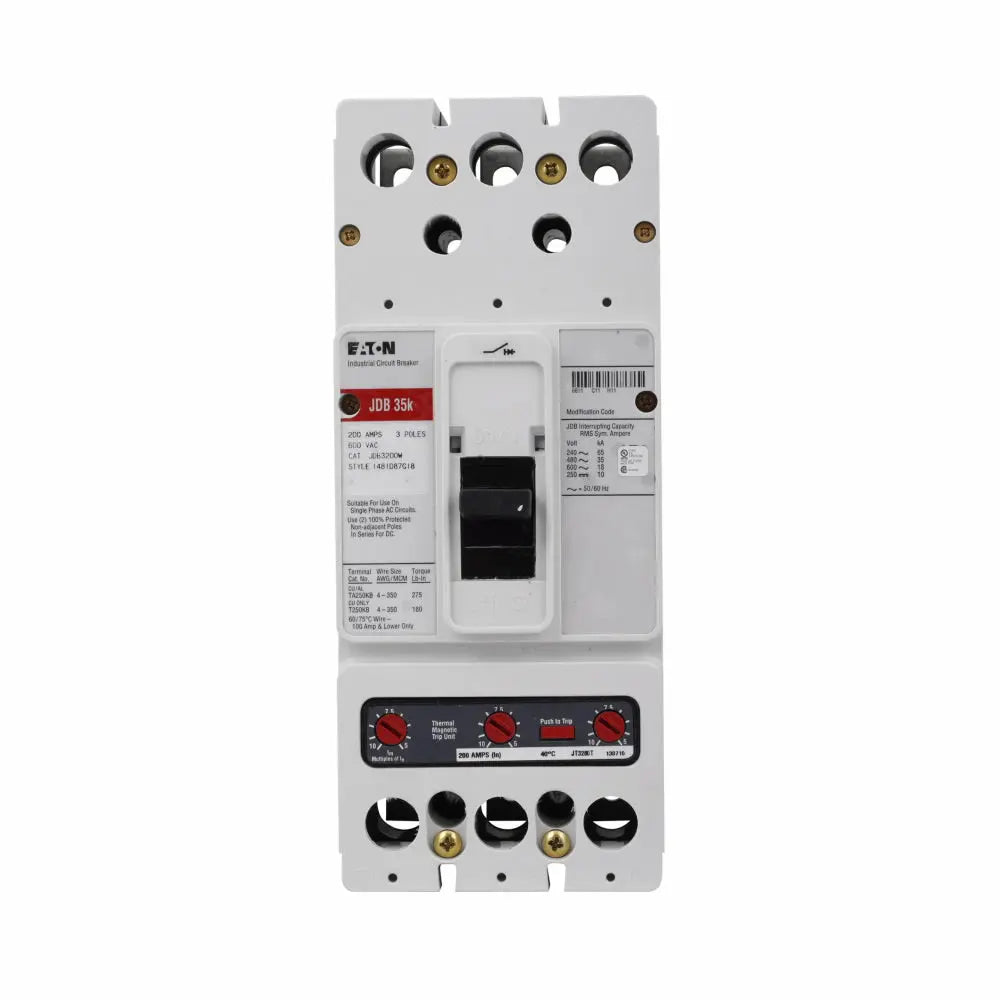

JDB3250 is a 250 Amp, 600 Volt, 3-pole molded case circuit breaker from Eaton's Series C J-frame line.This Eaton JDB3250 circuit breaker features a thermal magnetic trip unit with a non-interchangeable design. It is rated for 250 amps continuous current and 600 volts AC, suitable for industrial and commercial power distribution. The breaker has a standard interrupt rating of 35kA at 480V and 65kA at 240V, ensuring reliable protection against overloads and short circuits. It is designed for panel or surface mounting and supports feed-thru and reverse feed applications.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Series/Frame: Eaton Series C JDB Frame
• Trip Unit: Thermal Magnetic, Non-interchangeable
• Interrupt Rating: 35kA @ 480VAC, 65kA @ 240VAC
• Mounting Type: Panel or Surface Mount
• Feed-Thru and Reverse Feed Capable
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JDB3250
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDB
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679516348
• GTIN : 00786679516348
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.22
• Certification : UL Listed
