Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB3175X

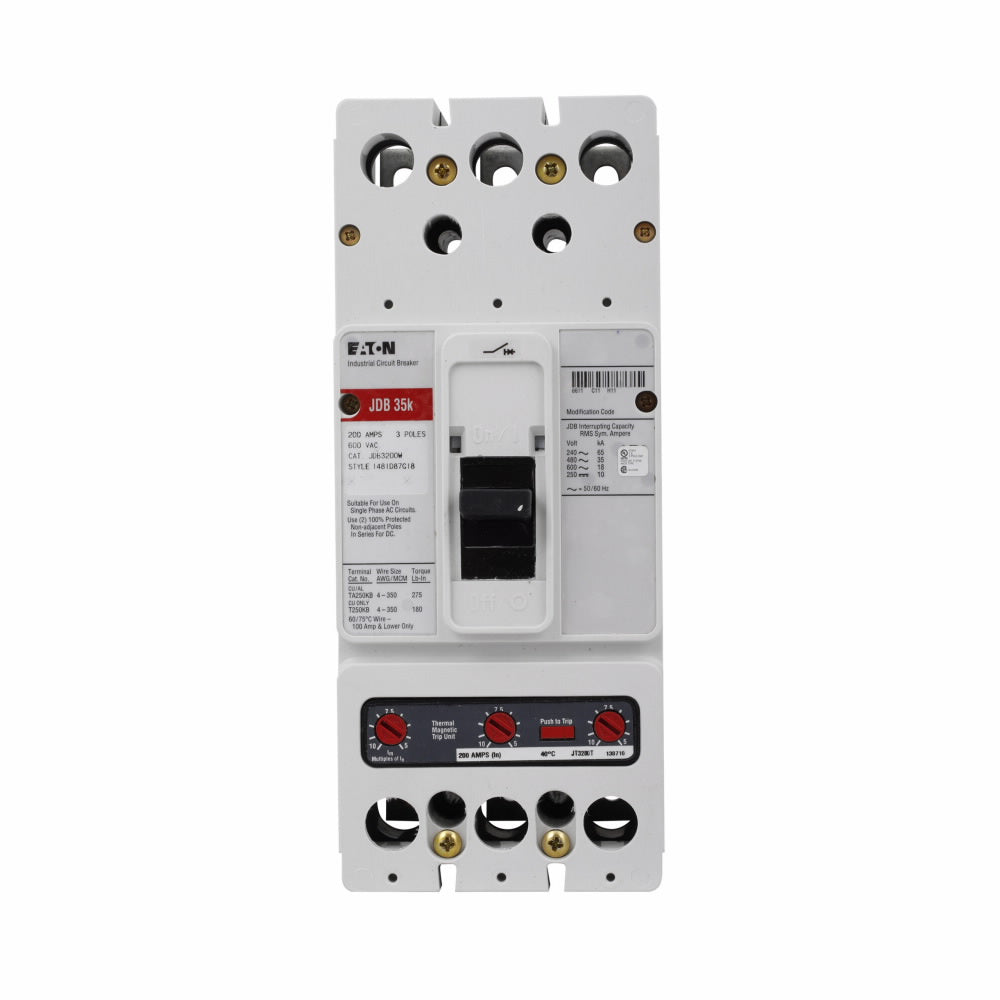

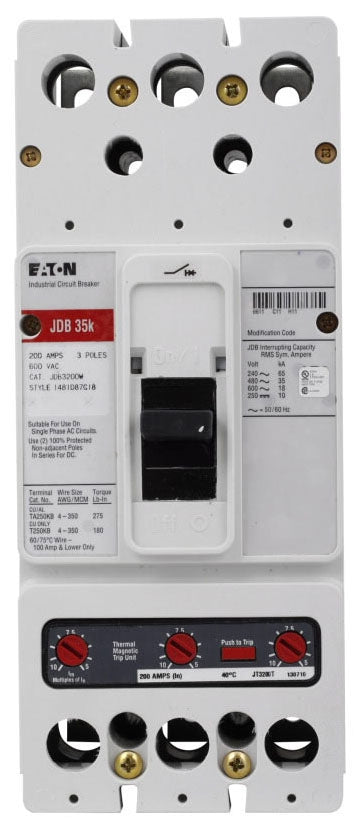

JDB3175X is an Eaton Series C complete molded case circuit breaker designed for low voltage power distribution and circuit protection applications. This J-frame breaker features fixed thermal and fixed magnetic trip units with a 175-ampere continuous rating and supports both AC and DC voltages for versatile installation in industrial and commercial electrical systems.Key Specifications
- Amperage Rating: 175 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Three-pole
- Circuit Breaker Type: JDB
- Series: Series C
- Frame: J-frame
- Trip Type: Fixed thermal, fixed magnetic
- Interrupt Rating: 35 kAIC at 480 Vac, 65 kAIC at 240 Vac
- Frequency Rating: 50 to 60 Hz
- Terminal Material: Aluminum
- Certifications: UL Listed
Specifications
- Part Number: JDB3175X
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 782114740514
- GTIN : 00782114740514
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11.25
- Certification : UL Listed
