Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB3150C

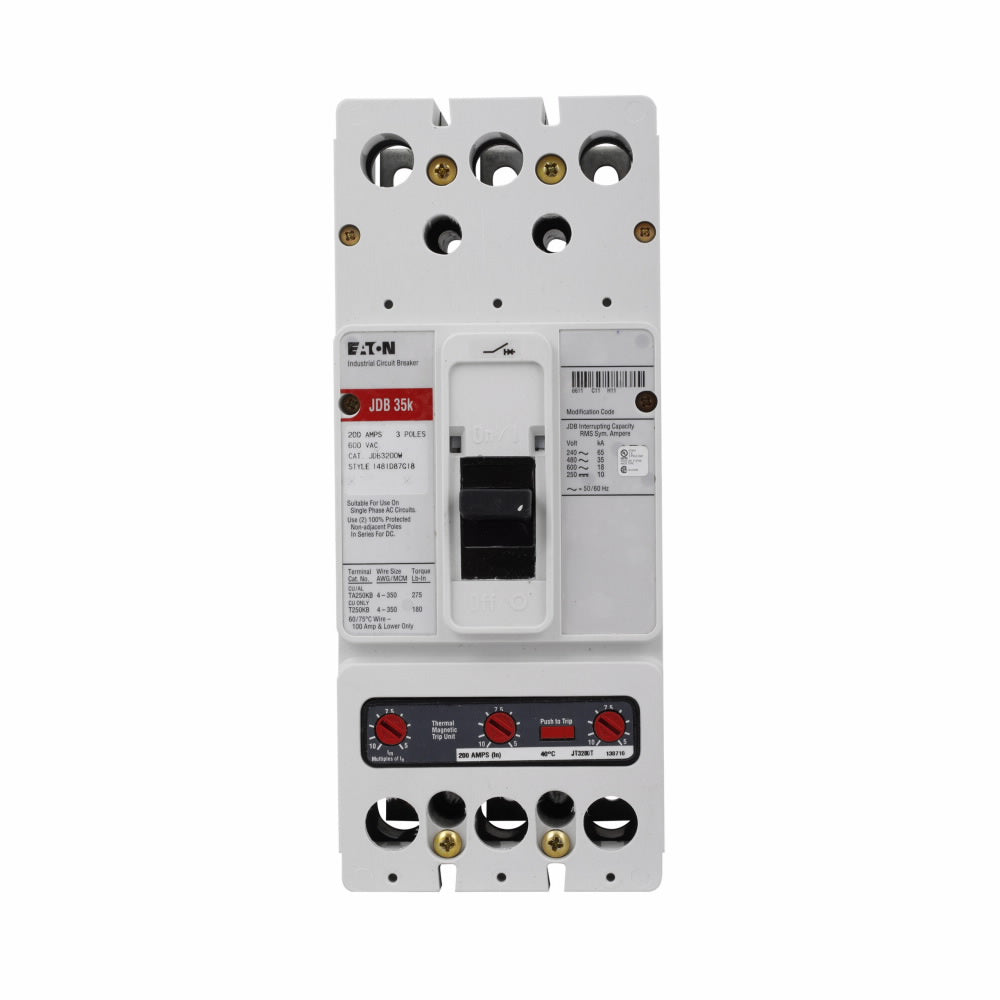

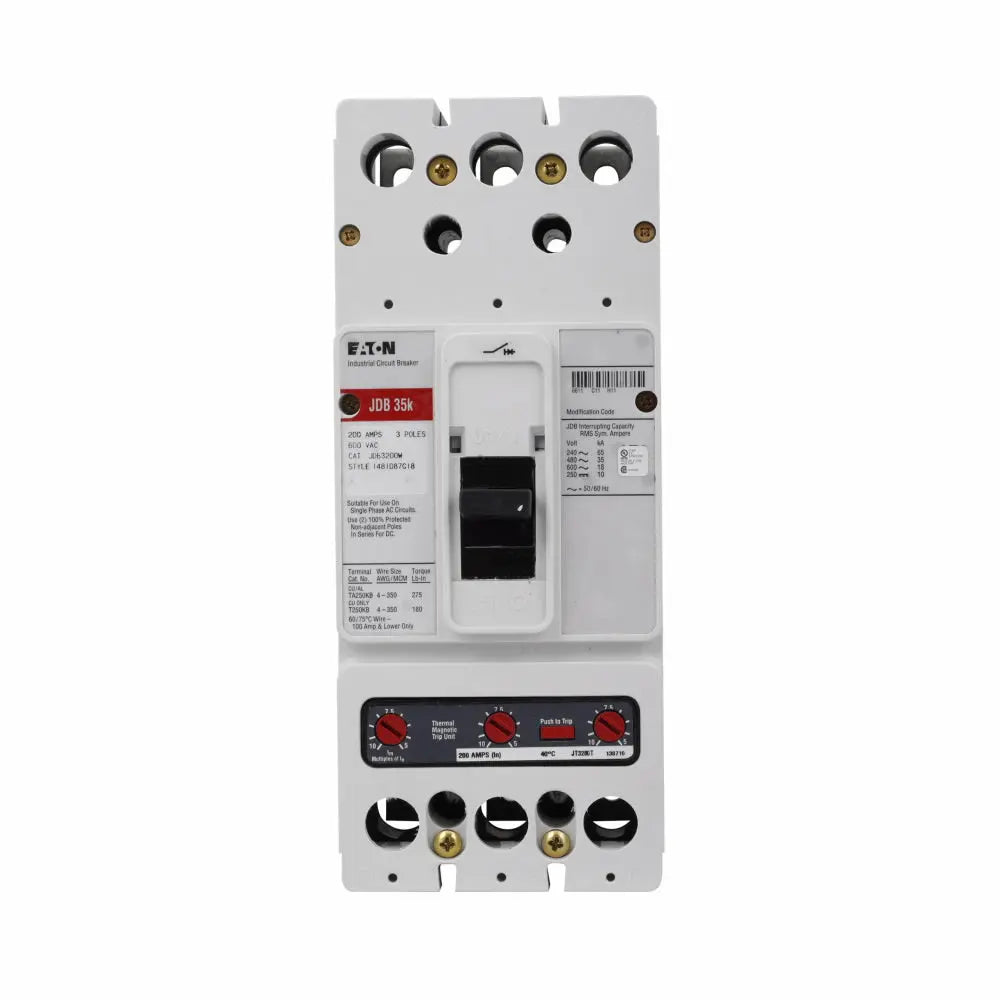

JDB3150C is a Series C JDB molded case circuit breaker from Eaton, designed for reliable protection in industrial and commercial power distribution systems.This three-pole breaker features a fixed thermal and fixed magnetic trip unit, rated for 150A continuous current and 600V AC/250V DC. It is suitable for use in applications requiring robust short-circuit protection with interrupt ratings up to 65kAIC at 240VAC and 35kAIC at 480VAC. The breaker is factory sealed and constructed with copper line and load terminals for optimal conductivity and durability.
- Part Number: JDB3150C
- Manufacturer: Eaton
- Series: Series C
- Frame Type: JDB
- Amperage Rating: 150A
- Voltage Rating: 600V AC / 250V DC
- Number of Poles: 3
- Interrupt Rating: 65kAIC at 240VAC, 35kAIC at 480VAC
- Mounting Type: Fixed
- Terminal Material: Copper
- Terminal Configuration: Line and Load
- Frequency: 50/60 Hz
- Special Features: Factory Sealed
- Standards: UL Listed
Specifications
- Part Number: JDB3150C
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78667934060
- GTIN : 00786679340608
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11.25
- Certification : UL Listed
