Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB3125

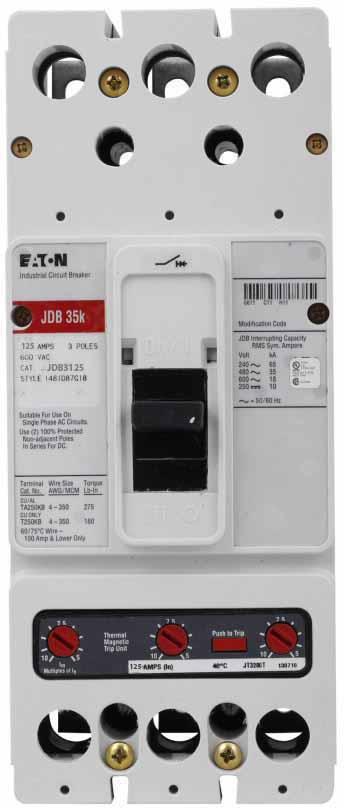

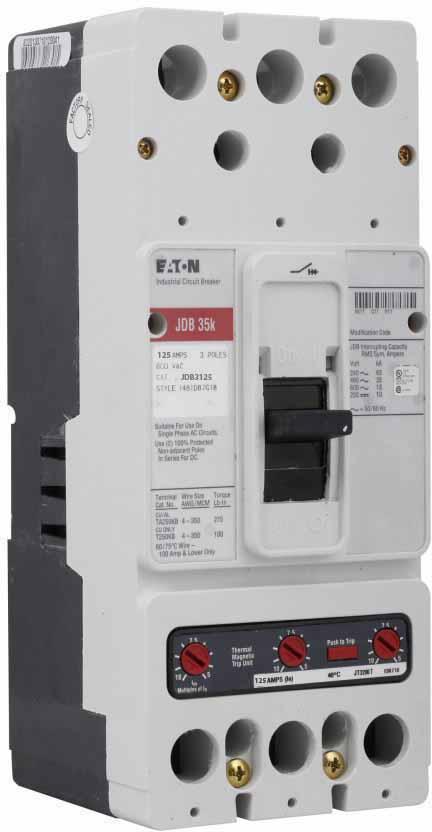

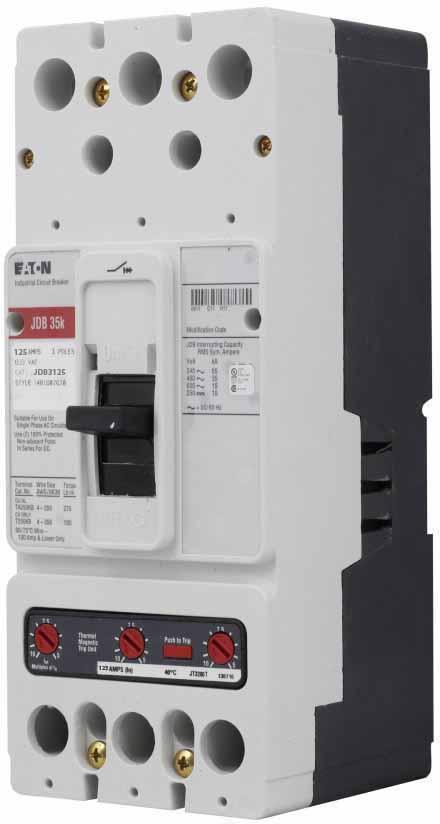

JDB3125 is an Eaton Series C molded case circuit breaker with a 125 amp rating, 600 volt capacity, and 3 poles in a J frame design.This Eaton JDB3125 circuit breaker features fixed thermal and magnetic trip units, suitable for 50/60 Hz frequency, and provides reliable protection in industrial and commercial power distribution applications. It is designed for mounting in standard panelboards and switchboards.
- Amperage: 125 A
- Voltage: 600 V AC
- Poles: 3
- Frame Type: J Frame
- Series: C
- Trip Unit: Fixed thermal and magnetic
- Frequency Rating: 50/60 Hz
- Interrupt Rating: 65 kA at 240 V AC (typical for Series C J Frame)
- Mounting Type: Panelboard/Switchboard
- Certifications: UL Listed, CSA Certified (typical for Eaton Series C)
Specifications
- Part Number: JDB3125
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679516249
- GTIN : 00786679516249
- Country of Origin : Dominican Republic
- Dimensions : 12 in x 6.5 in x 7 in (Length/Depth x Height x Width)
- Weight : 1
- Certification : UL Listed
