Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB3070

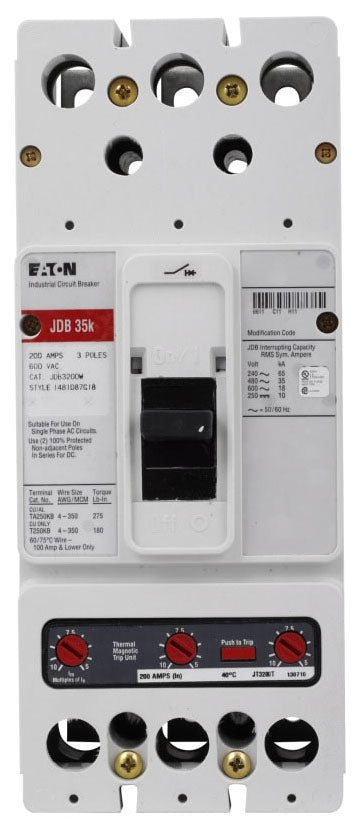

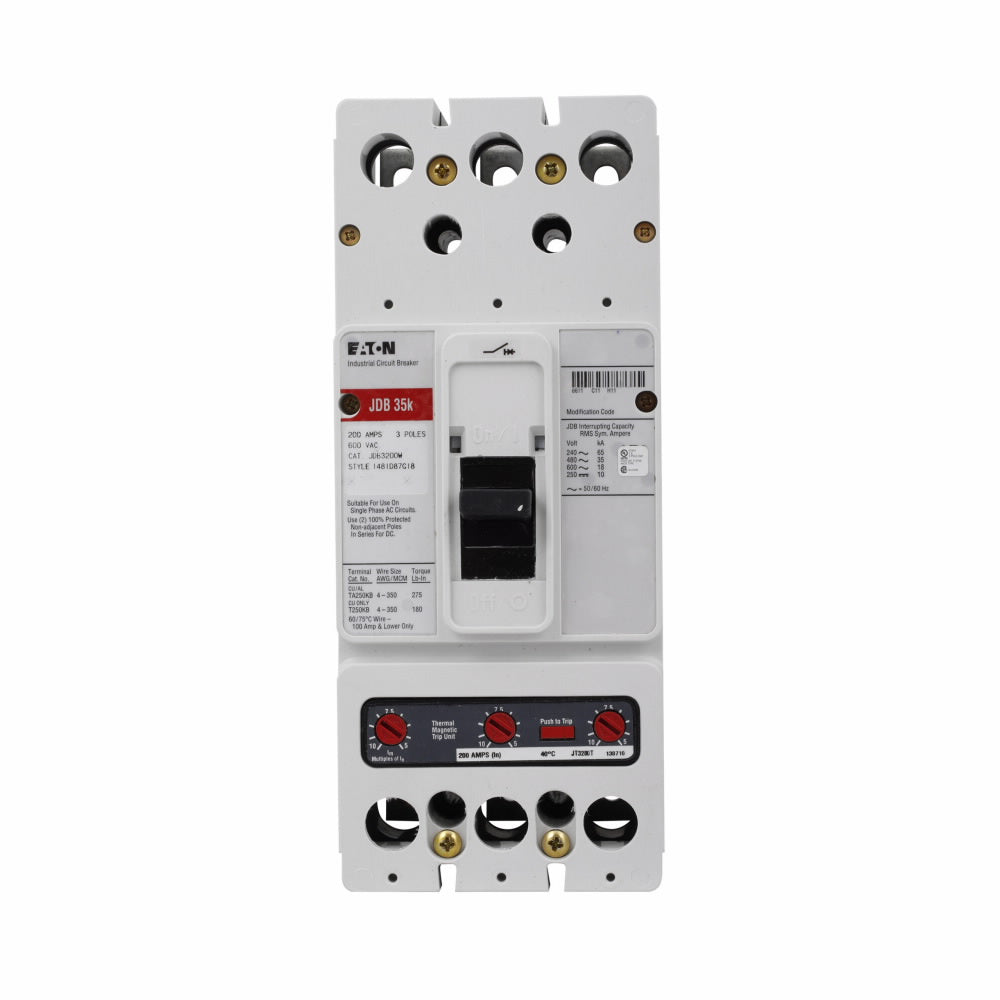

JDB3070 is an Eaton molded case circuit breaker designed for low voltage distribution system protection with fixed thermal and magnetic trip technology. This three-pole J-frame breaker delivers reliable circuit protection with a patented contact design featuring high-speed blow-open action for superior performance and fast fault clearing. The unit is rated for 70 amperes at 40 degrees Celsius and supports both 600 VAC and 250 VDC systems at 50/60 Hz, making it suitable for industrial and commercial applications requiring dependable overcurrent protection.
- Amperage: 70 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Frame Type: J-Frame
- Series: C Series
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Interrupt Rating: 65 kAIC at 240 V, 35 kAIC at 480 V
- Frequency: 50/60 Hz
- Contact Design: Patented high-speed blow-open action
Specifications
- Part Number: JDB3070
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679516188
- GTIN : 00786679516188
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11
- Certification : UL Listed
