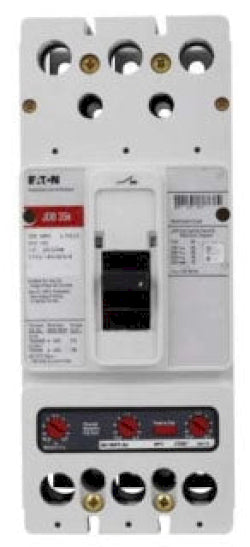

JDB2225 - Eaton 225 Amp 600 Volt Two-Pole J-Frame Molded Case Circuit Breaker

JDB2225

JDB2225 is a complete Eaton molded case circuit breaker designed for industrial applications requiring reliable two-pole protection.

This Eaton JDB2225 breaker features a 225 ampere rating with a maximum voltage of 600 VAC and 250 VDC. It is a two-pole device built on the J-frame, Series C platform, utilizing fixed thermal and fixed magnetic trip units. The breaker has an interrupt rating of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, suitable for heavy-duty electrical protection. It includes aluminum line and load terminals and operates at 50/60 Hz frequency.

• Amperage: 225 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: Two-pole
• Frame Type: J-Frame
• Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
• Trip Type: Fixed thermal, fixed magnetic
• Terminal Material: Aluminum
• Frequency: 50 to 60 Hz
• Series: Series C
• Mounting Type: Complete breaker
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDB2225
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDB
• Voltage : 600
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679030165
• GTIN : 00786679030165
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 10.5
• Certification : UL Listed
