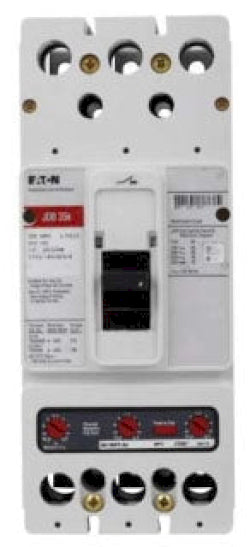

JDB2150W - Eaton Series C J-Frame Molded Case Circuit Breaker 150A 600V Two-Pole Fixed Thermal Magnetic Trip

JDB2150W

JDB2150W is a Series C J-Frame molded case circuit breaker from Eaton, designed for reliable protection in low-voltage power distribution systems. This breaker features a fixed thermal and fixed magnetic trip unit for consistent performance and safety.Engineered for industrial and commercial applications, the JDB2150W offers a robust design with a two-pole configuration, 150A continuous current rating, and a maximum voltage of 600V AC or 250V DC. It is suitable for use in a wide range of electrical environments and is UL Listed for safety compliance.

• Part Number: JDB2150W
• Manufacturer: Eaton
• Series: Series C
• Frame: J-Frame
• Amperage Rating: 150A
• Maximum Voltage: 600V AC, 250V DC
• Poles: Two-Pole
• Interrupt Rating: 65 kAIC at 240V, 35 kAIC at 480V
• Mounting Type: Complete breaker (without terminals)
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed thermal, fixed magnetic
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: JDB2150W
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDB
• Voltage : 600
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679516096
• GTIN : 00786679516096
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 11.25
• Certification : UL Listed
