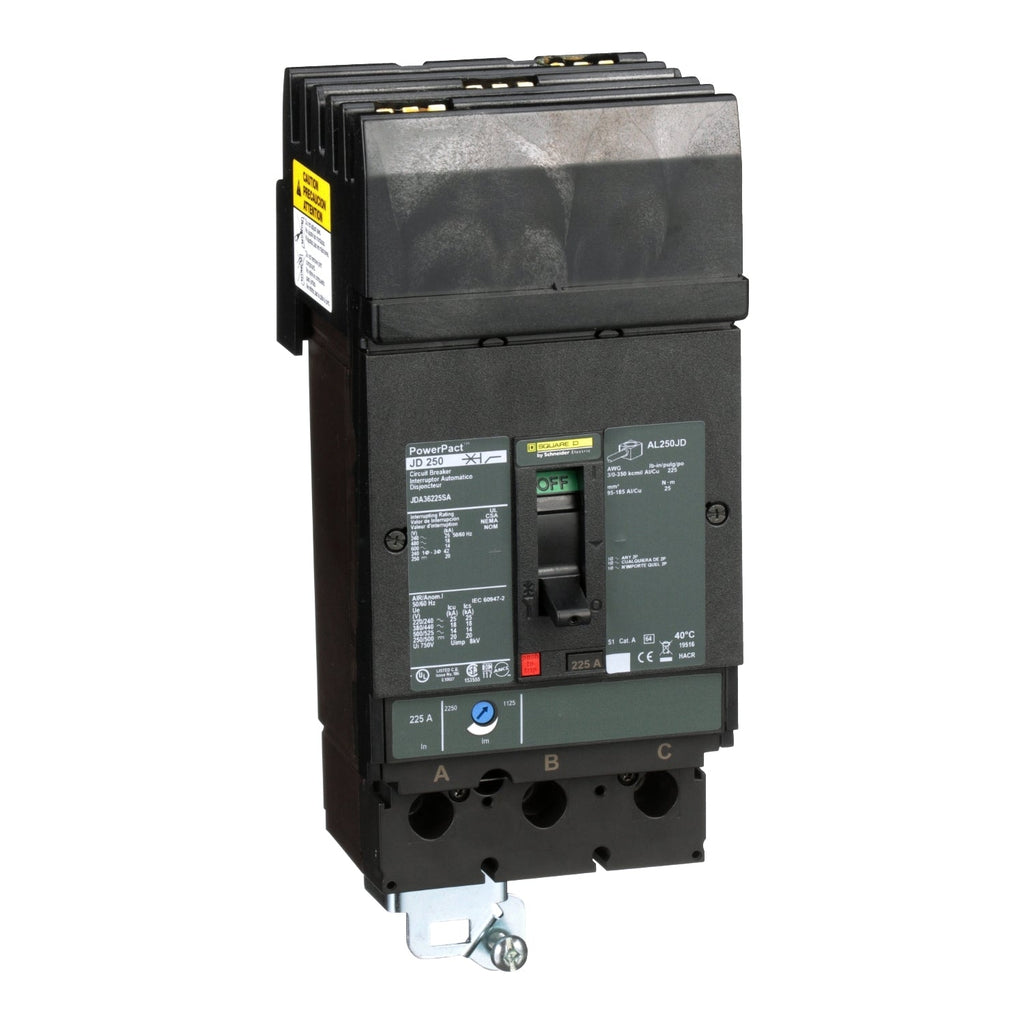

JDA36225SA - Square D 225A 600V 3 Pole I-Line Circuit Breaker with Shunt Trip

Save $863.49
SKU: JDA36225SA-New
Condition: New
Price:
$2,720.51 $3,584.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

JDA36225SA Square D Molded Case Circuit Breaker Powerpact 225A 600V - Essential Electric Supply
JDA36225SA - Square D 225A 600V 3 Pole I-Line Circuit Breaker with Shunt Trip - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
JDA36225SA Square D Molded Case Circuit Breaker Powerpact 225A 600V - Essential Electric Supply
JDA36225SA - Square D 225A 600V 3 Pole I-Line Circuit Breaker with Shunt Trip - Essential Electric Supply

Description

JDA36225SA


JDA36225SA is a 225 amp, 600 volt, 3 pole I-Line style circuit breaker manufactured by Square D, designed for reliable circuit protection in industrial and commercial applications.This Square D JDA36225SA breaker features a thermal magnetic trip unit with a 18kA interrupting rating at 480V, suitable for panelboards requiring high fault current interruption. It includes a factory-installed 120VAC shunt trip for remote tripping capability and is UL and CSA certified for safety and performance. The breaker is part of the PowerPact J-Frame series with dual-break rotating contacts to reduce peak current during short circuits and is designed for plug-in mounting in I-Line panelboards.
  • Amperage: 225A
  • Voltage Rating: 600VAC, 250VDC
  • Poles: 3
  • Interrupt Rating: 18kA at 480V
  • Frame/Series: PowerPact J-Frame
  • Mounting Type: I-Line plug-in
  • Trip Unit: Thermal magnetic with 120VAC shunt trip
  • Certifications: UL, CSA, NOM, IEC, CE marked
  • Dual-break rotating contacts for reduced peak current
  • Integral push-to-trip button
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110-130Vac shunt trip


Specifications

  • Part Number: JDA36225SA
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : JDA
  • Voltage : 600
  • Amperage : 225
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : J
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901835721
  • GTIN : 00785901835721
  • Country of Origin : United States
  • Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 5
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals

Accesories

Part Manufacture Sub Category
S29386
