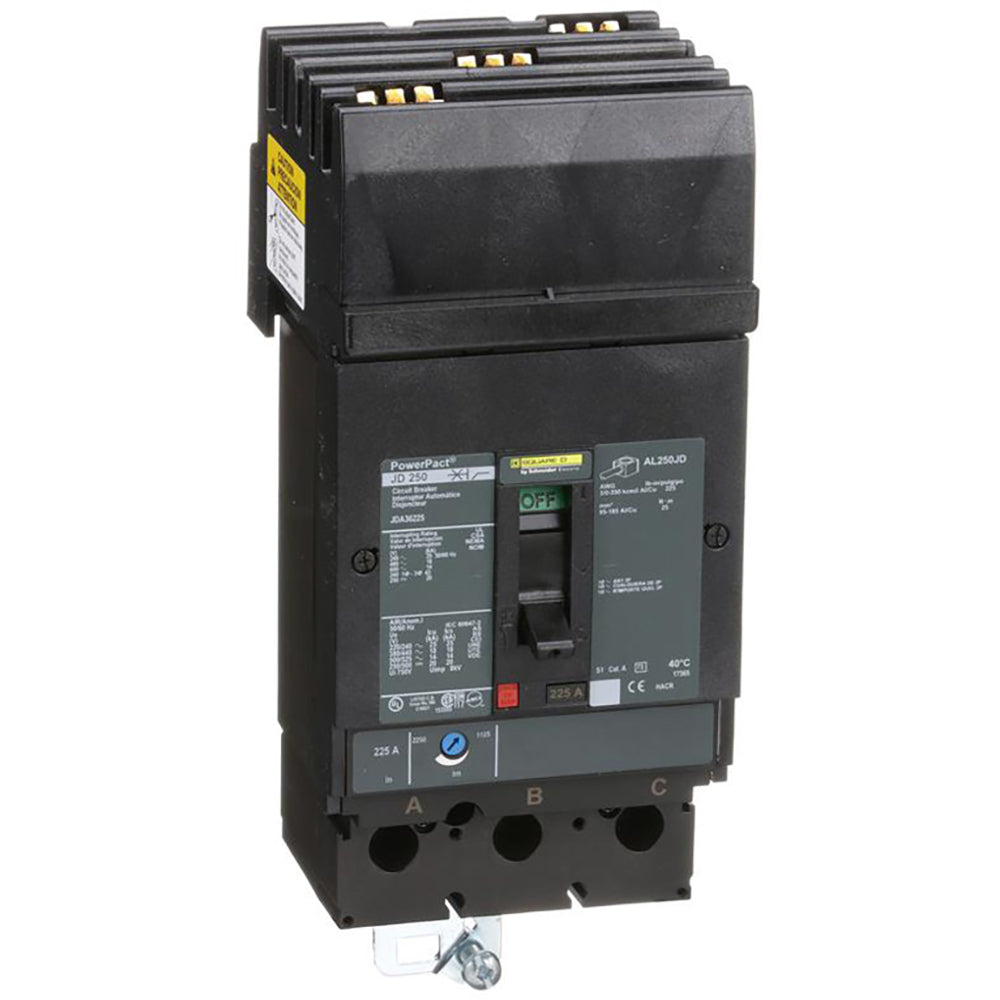

JDA36225 - Square D 225A 600V 3-Pole Powerpact JDA Molded Case Circuit Breaker I-Line Plug-In

JDA36225

JDA36225 is a Square D Powerpact JDA series molded case circuit breaker rated for 225 amps, 600 volts, and 3 poles with I-Line plug-in mounting.This thermal magnetic trip circuit breaker provides overload and short circuit protection with an 18kA interrupt rating at 480V. It features a J-frame design, toggle control, and is UL listed, CSA certified, and IEC rated. The breaker supports ABC phase connection and is suitable for 3-phase applications with a continuous current rating of 80%. It includes long-time and instantaneous trip functions and is designed for use in I-Line panelboards.

Key Specifications
• Amperage: 225A
• Voltage Rating: 600VAC / 250VDC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 18kA @ 480V
• Frame Type: JDA (J-Frame)
• Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
• Phase: 3-Phase (ABC connection)
• Certifications: UL Listed, CSA Certified, IEC Rated
• Continuous Current Rating: 80%
• Control Type: Toggle
• Connection: I-Line plug-in / lugs load
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JDA36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901834168
• GTIN : 00785901834168
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.601
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
