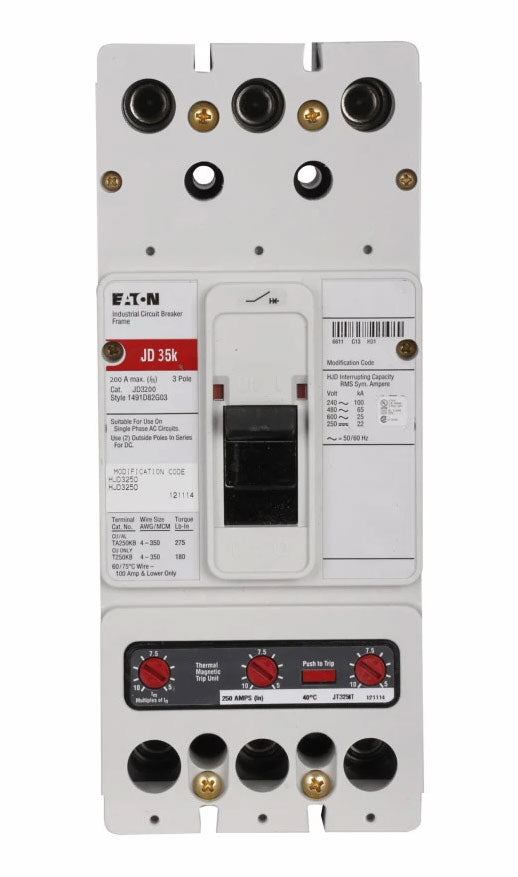

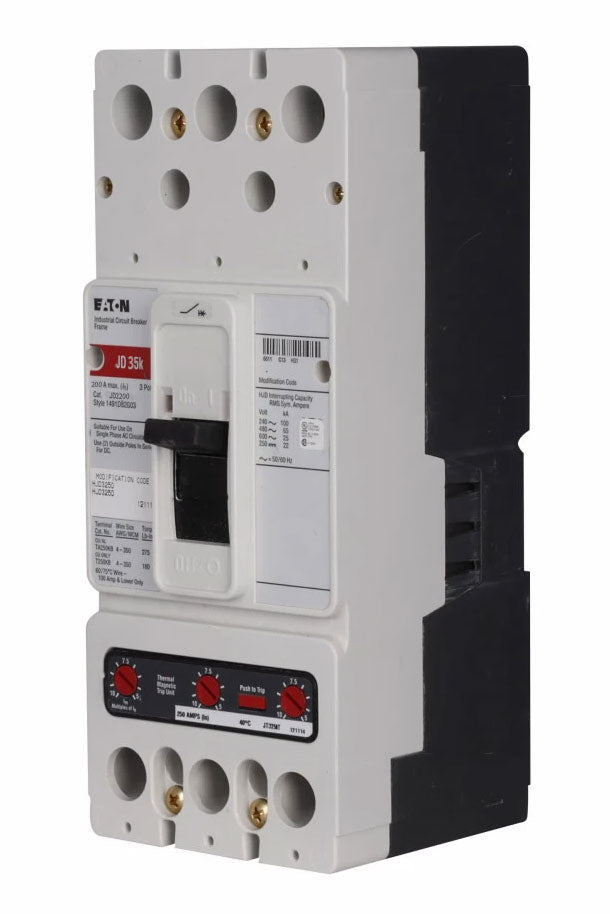

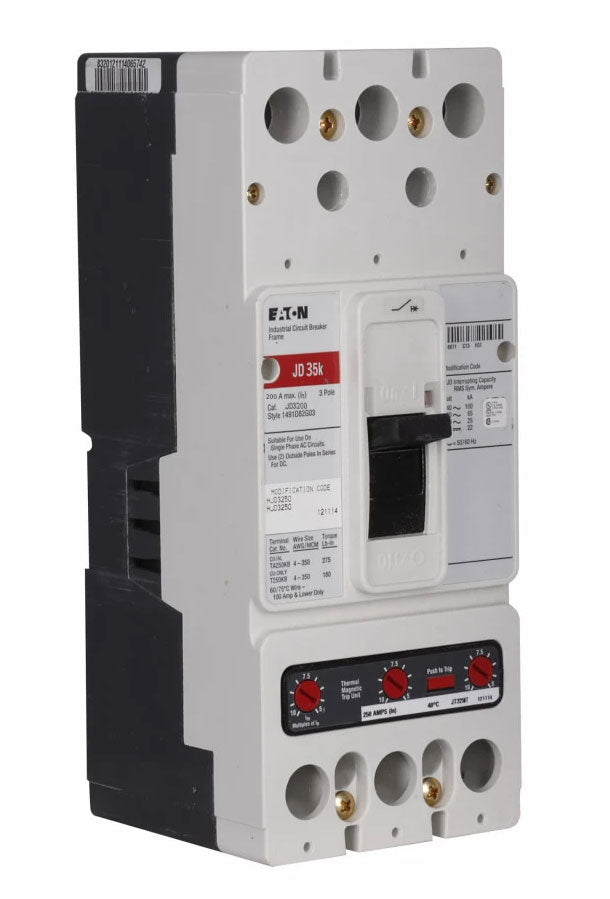

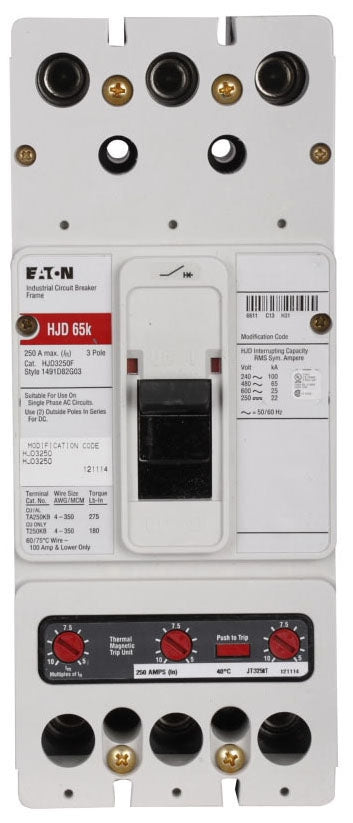

JD3200 - Cutler Hammer 3 Pole 200A 600V Molded Case Circuit Breaker, JD Frame, Bolt-On, Thermal Magnetic Trip, 35kA Interrupt Rating

JD3200

JD3200 is a Cutler Hammer molded case circuit breaker designed for reliable protection in commercial and industrial power distribution applications.

This 3-pole, 200A breaker features a JD frame, bolt-on mounting, and a thermal magnetic trip unit. It is rated for 600VAC/250VDC, with a 35kA interrupting capacity at 480VAC, and is suitable for use in environments up to 40°C. The JD3200 is part of the Series C line and is engineered for durability and safety in demanding electrical systems.

Key Specifications
• Part Number: JD3200
• Manufacturer: Cutler Hammer
• Amperage: 200A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA @ 480VAC, 65kA @ 240VAC, 18kA @ 600VAC
• Series/Frame: Series C, JD Frame
• Trip Unit: Thermal Magnetic
• Frequency: 50/60 Hz
• Certifications: Standard interrupting capacity, suitable for UL/CSA applications (verify local standards)
• Operating Temperature: Up to 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JD3200
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679346150
• GTIN : 00786679346150
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.55
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
