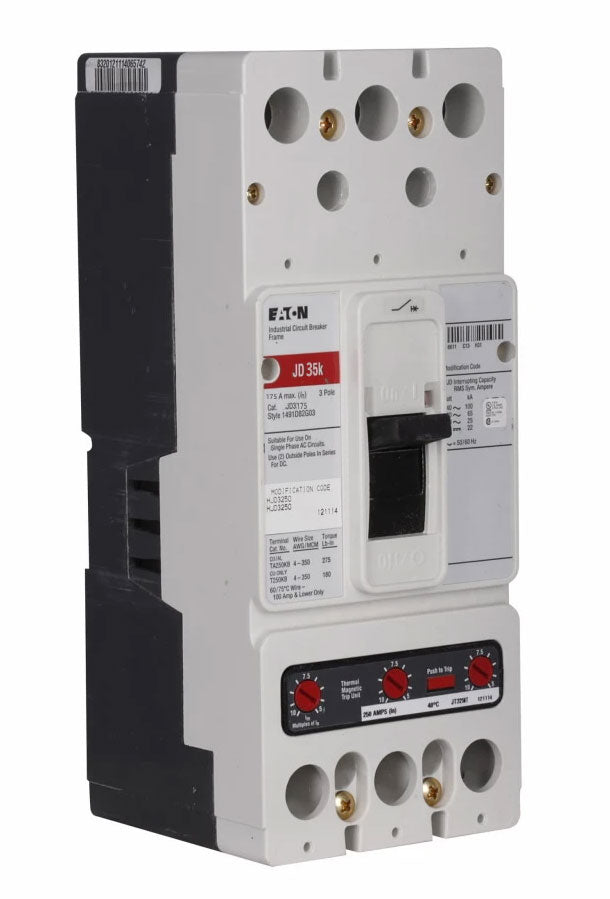

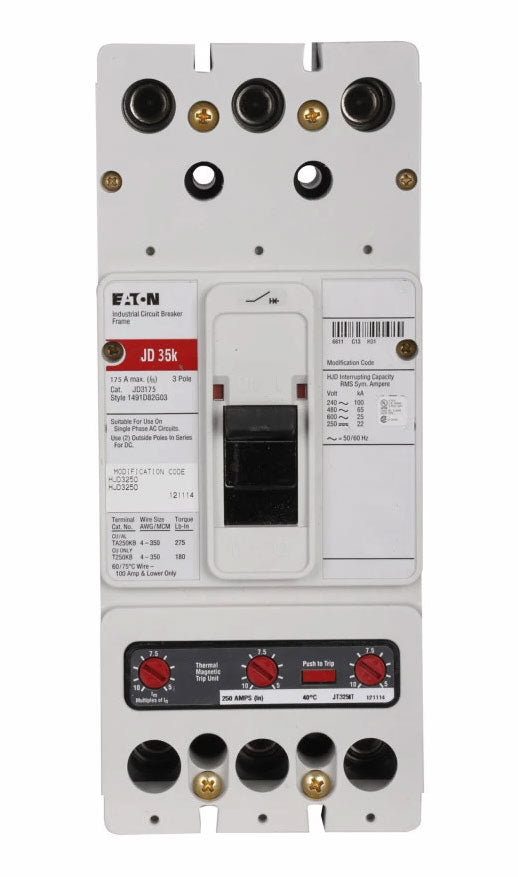

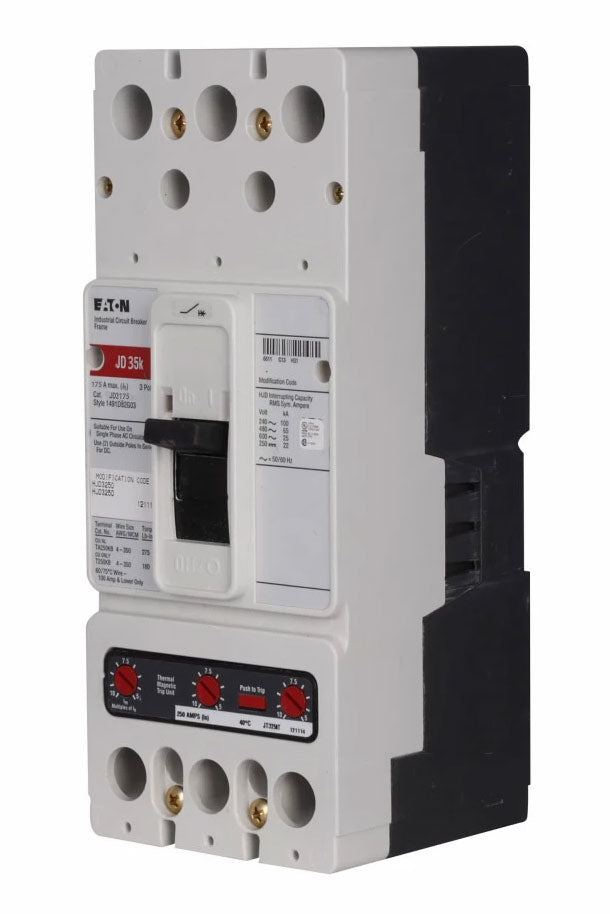

JD3175 - Cutler Hammer Series C 3 Pole 175A 600V Molded Case Circuit Breaker

JD3175

JD3175 is a Cutler Hammer Series C 3 pole 175A 600V molded case circuit breaker designed for reliable power distribution and protection in industrial and commercial applications. This breaker features a JD frame, fixed thermal and magnetic trip, and is rated for 600 Vac and 250 Vdc. It is suitable for bolt-on mounting and offers a robust interrupting capacity for demanding environments. The JD3175 is a complete molded case circuit breaker with interchangeable trip (LI) for long-time and instantaneous protection. It is part of the Series C family, known for durability and performance in critical power systems. The breaker is designed for use in panelboards and switchgear where high reliability and safety are required.

• Part Number: JD3175
• Manufacturer: Cutler Hammer
• Series/Frame: Series C, JD Frame
• Poles: 3
• Amperage: 175A
• Voltage Rating: 600 Vac, 250 Vdc
• Mounting Type: Bolt-On
• Interrupt Rating: 35kAIC @ 480VAC
• Interrupt Rating: 65kAIC @ 240VAC
• Interrupt Rating: 18kAIC @ 600VAC
• Trip Unit: Fixed Thermal, Fixed Magnetic (LI)
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JD3175
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679346143
• GTIN : 00786679346143
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.55
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
