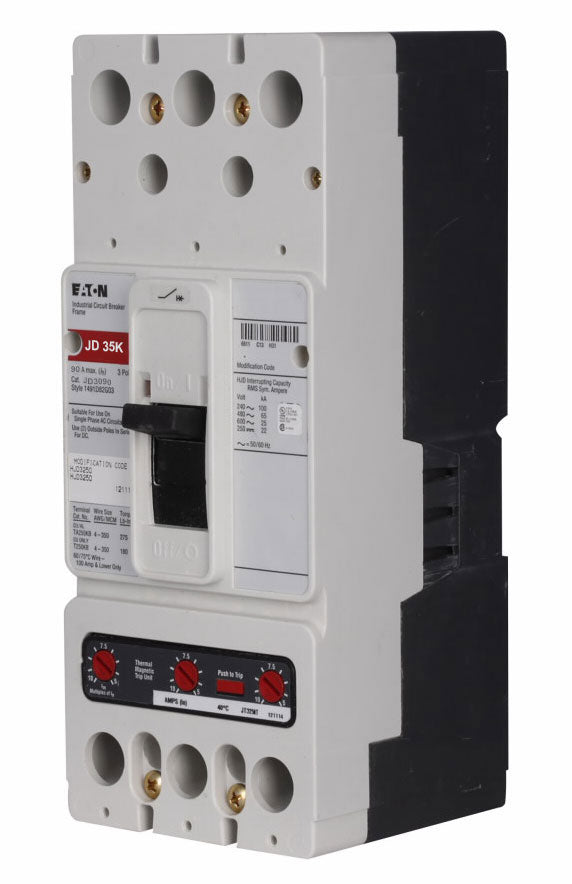

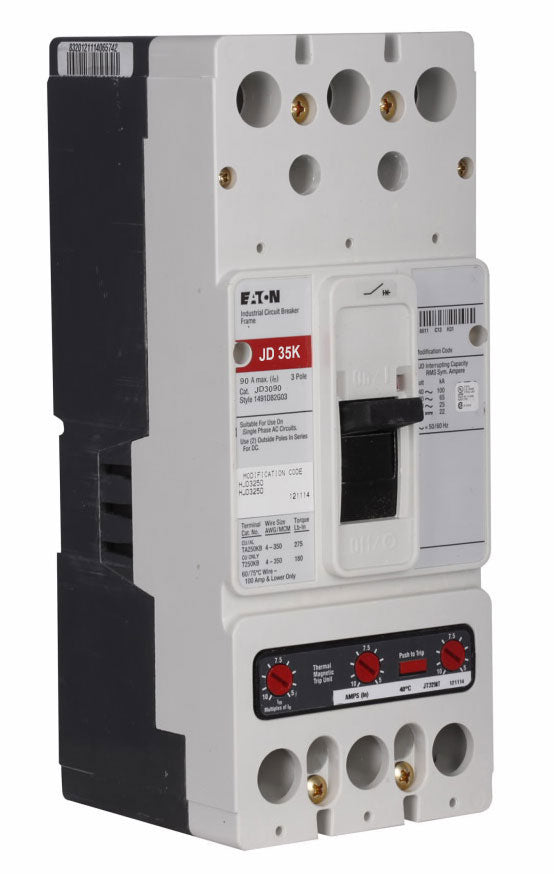

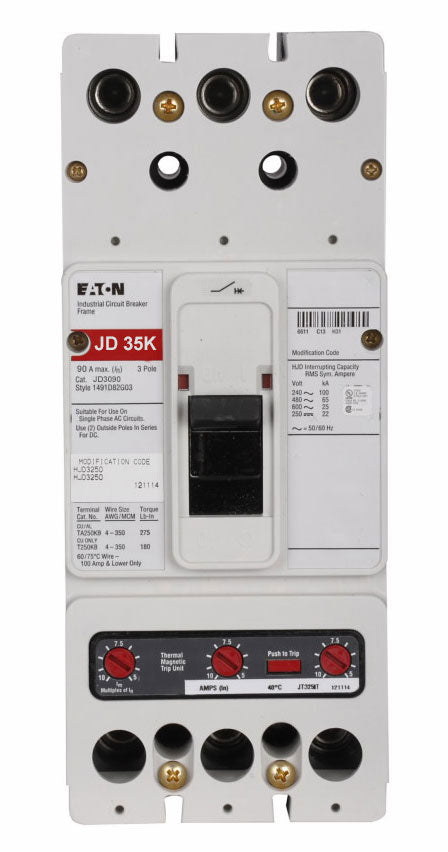

JD3090 - Westinghouse 3 Pole 90A 600V Molded Case Circuit Breaker, Series C, J Frame, 35kAIC@480V, Bolt-On

JD3090

JD3090 is a 3 pole, 90 amp, 600V molded case circuit breaker from Westinghouse, part of the Series C family with J Frame design. This breaker features a bolt-on mounting style and provides reliable thermal-magnetic protection for industrial and commercial power distribution applications. The JD3090 is a complete molded case circuit breaker with fixed thermal and fixed magnetic trip units, rated for 90 amps and 600 volts AC. It offers an interrupt rating of 35kAIC at 480V and 65kAIC at 240V, suitable for a wide range of electrical systems. The breaker is UL Listed and designed for use in standard panelboards and switchgear.

• Part Number: JD3090
• Manufacturer: Westinghouse
• Series: Series C
• Frame: J Frame
• Poles: 3
• Amperage: 90A
• Voltage: 600V AC
• Mounting Type: Bolt-On
• Interrupt Rating: 35kAIC@480V, 65kAIC@240V
• Protection Type: Thermal Magnetic
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JD3090
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : J Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679013519
• GTIN : 00786679013519
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 8
• Certification : UL Listed
