Description
ITAP361N

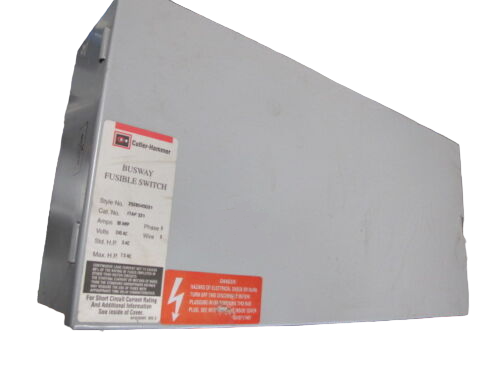

ITAP361N is a 30 amp, 600 volt fusible bus plug designed for Eaton Pow-R-Way busway systems. ITAP361N features a three-pole, three-phase design with four-wire configuration and uses H-class fuses for protection. It is suitable for plug-in mounting in Pow-R-Way I & II series busway applications. This unit is UL 857, CSA, IEEE, ANSI certified, and NEMA compliant, with a 200kA interrupt rating ensuring high fault current protection.
- Amperage Rating: 30A
- Voltage Rating: 600V
- Number of Poles: 3
- Phase: Three-phase
- Fuse Type: H-class fuses
- Mounting Type: Plug-in for Pow-R-Way busway
- Interrupt Rating: 200kA
- Wire Configuration: 4-wire (including neutral)
- Certifications: UL 857, CSA, IEEE, ANSI
- Compliance: NEMA
- Application: Fusible bus plug for Pow-R-Way systems
Specifications
- Part Number: ITAP361N
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : POW-R-WAY I And II
- Type : ITAP
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@600V
- Fuse Class : R,H,J
- Wire : 4
Product Data
- UPC : 078668302133
- GTIN : 00786683021333
- Country of Origin : United States
- Dimensions : 20.9375 in x 5.0625 in x 9.875 in (Length/Depth x Height x Width)
- Weight : 19
- Certification : CSA Certified,IEEE Certified,UL 857,ANSI,NEMA Compliant
