HU661DS - Square D 30 Amp 600VAC 6-Pole Heavy Duty Non-Fusible Safety Switch NEMA 4/4X/5 Surface Mount

HU661DS

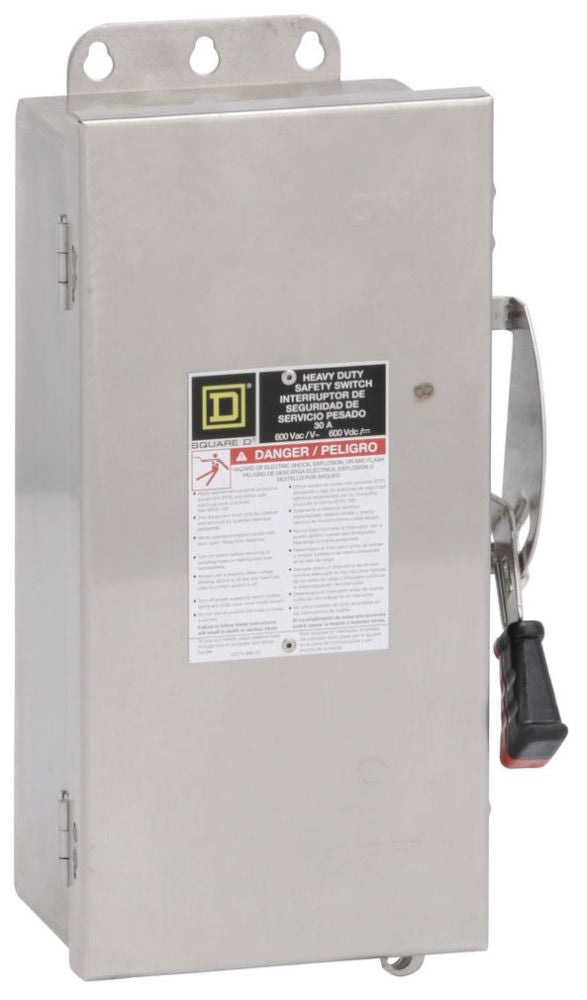

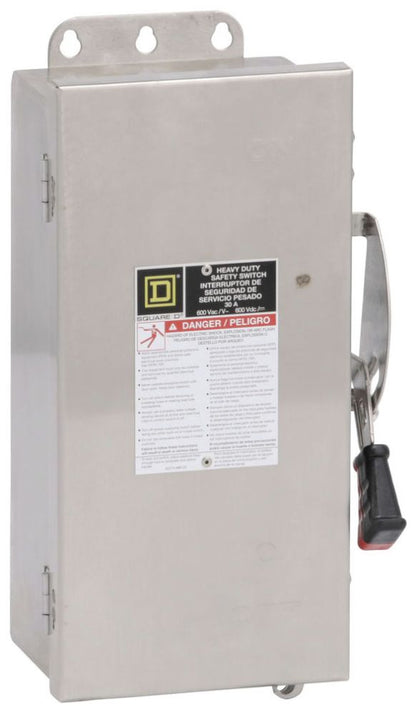

HU661DS is a Square D heavy duty, non-fusible safety switch rated for 30 Amps and 600VAC/600VDC with 6 poles and surface mounting.

This safety switch features a 200kA interrupting rating at 600V, a 304 stainless steel enclosure, and is designed for heavy duty applications with UL listing and NEMA 4, 4X, and 5 ratings. It includes plated aluminum lugs for copper and aluminum wire connections, a quick-make/quick-break mechanism, and a dual cover interlock for safety. The switch is suitable for 3-phase systems and supports wire gauges AWG 12 to AWG 6 aluminum and AWG 14 to AWG 6 copper.

Key Specifications
• Amperage: 30 Amps
• Voltage: 600VAC / 600VDC
• Number of Poles: 6
• Mounting Type: Surface
• Interrupting Rating: 200kA @ 600V
• Frame/Series: HU
• Trip Unit: Non-Fusible
• Enclosure Material: 304 Stainless Steel
• NEMA Rating: 4, 4X, 5
• UL Listed
• Wire Gauge: AWG 12-6 Aluminum, AWG 14-6 Copper
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU661DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 6
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 5
• Compatible Frames : ED

Product Data

• UPC : 785901083795
• GTIN : 00785901882145
• Country of Origin : United States
• Dimensions : 20.82 in (528.83 mm) x 16.85 in (427.99 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
• Weight : 18.4
• Certification : UL
