Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU368R

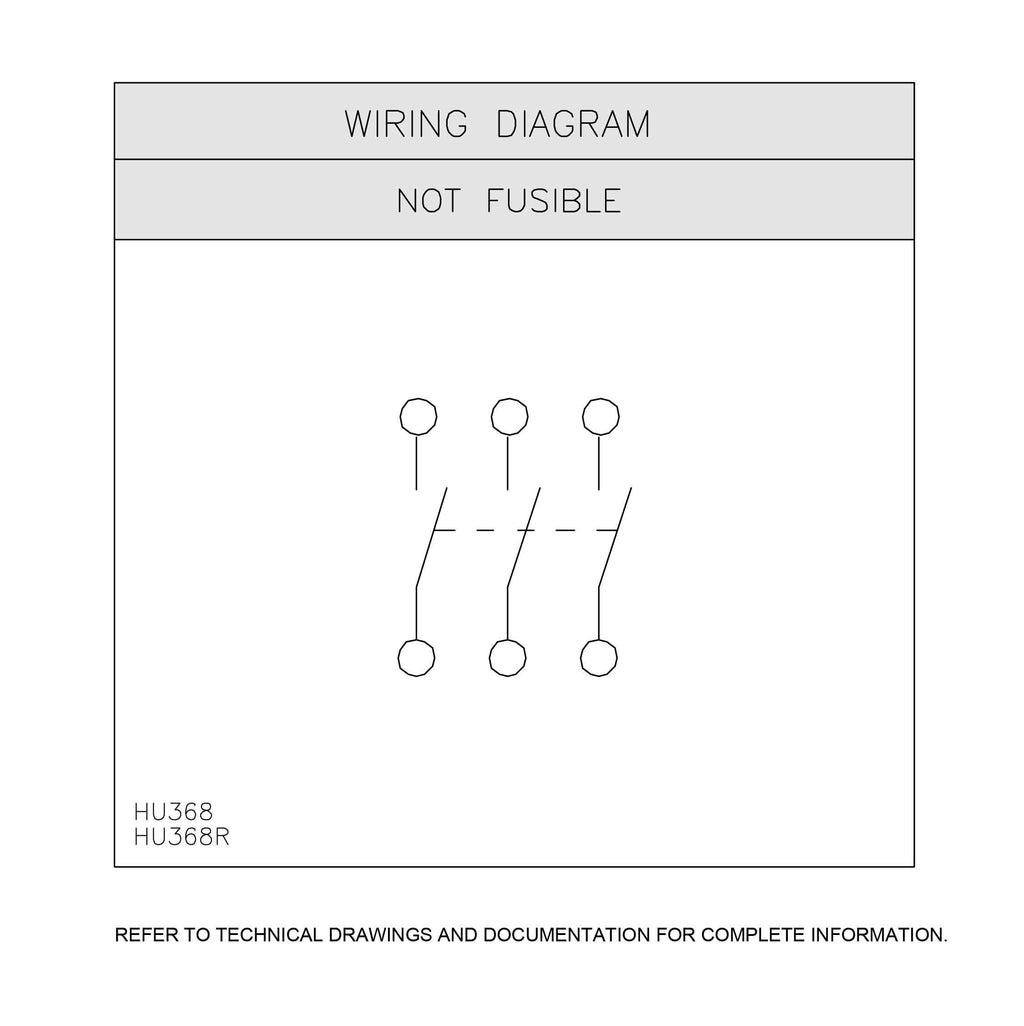

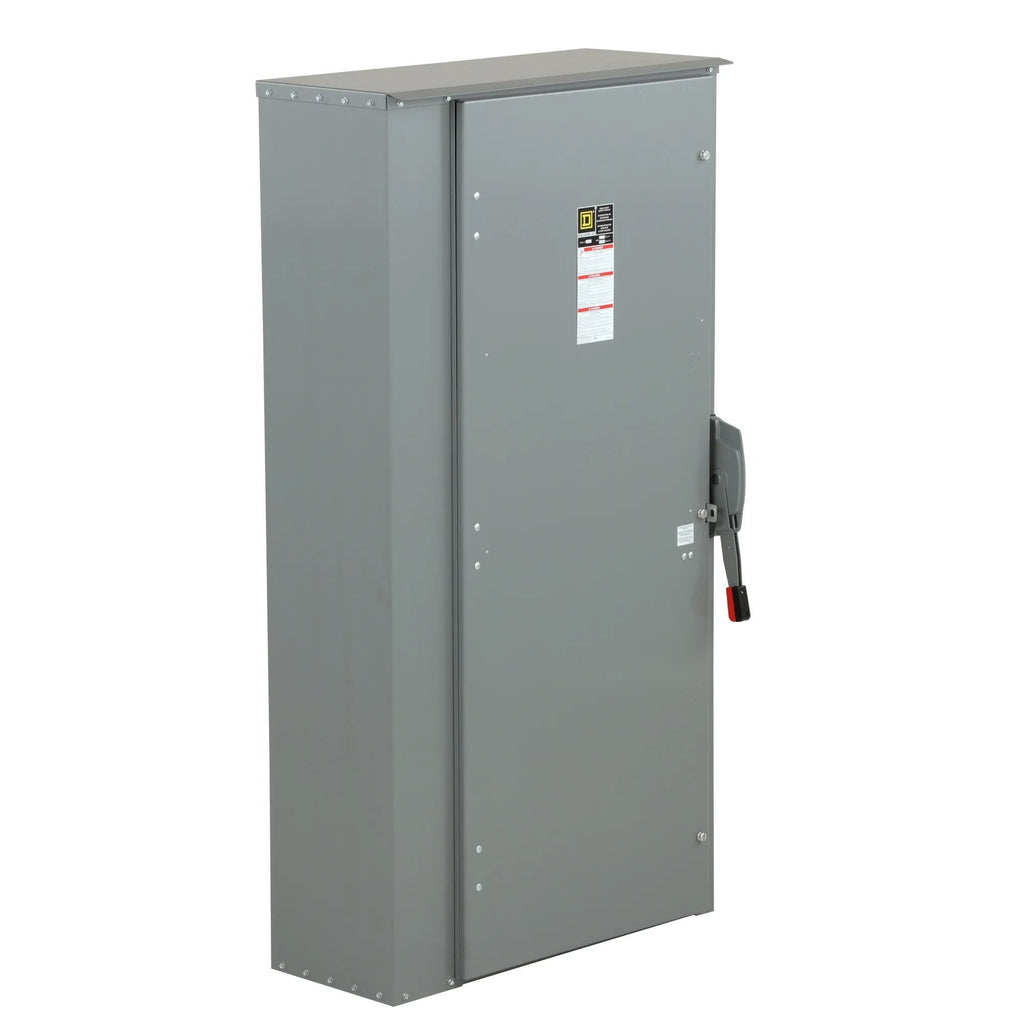

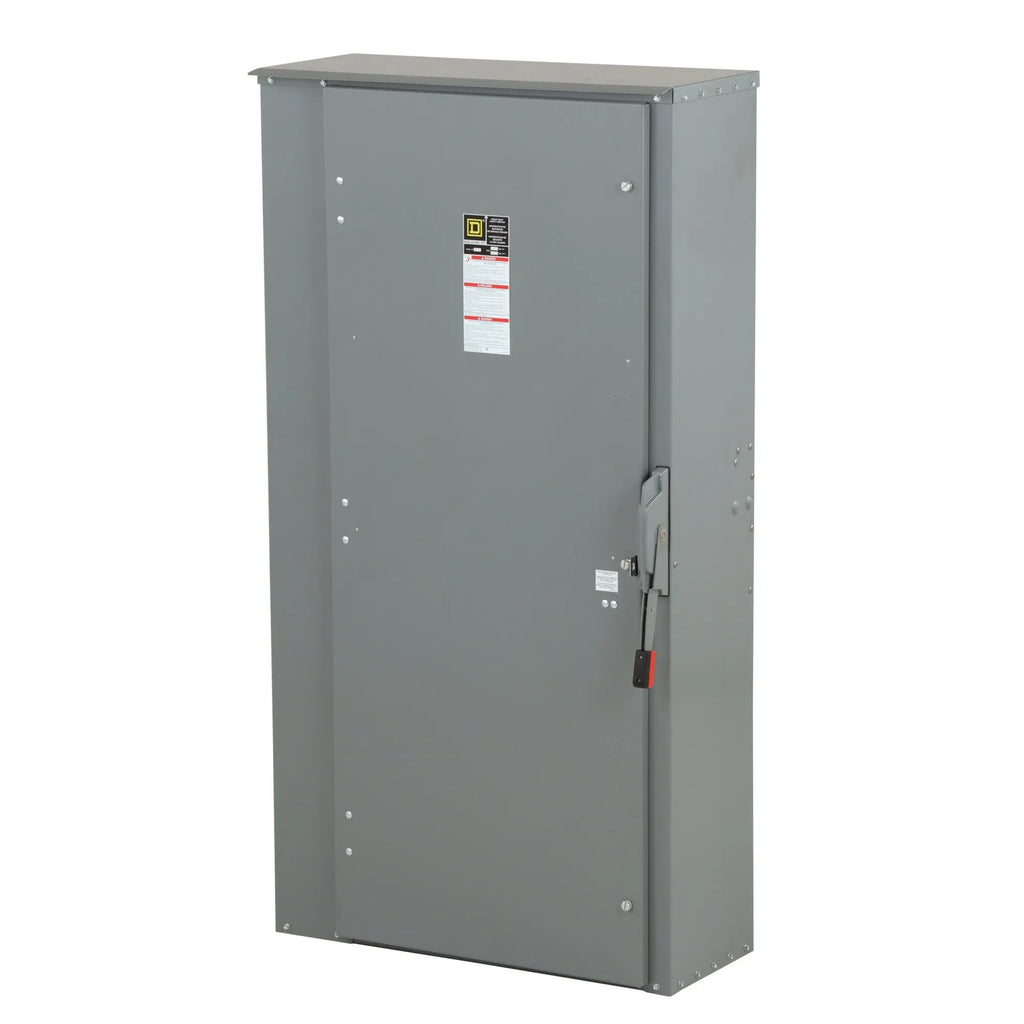

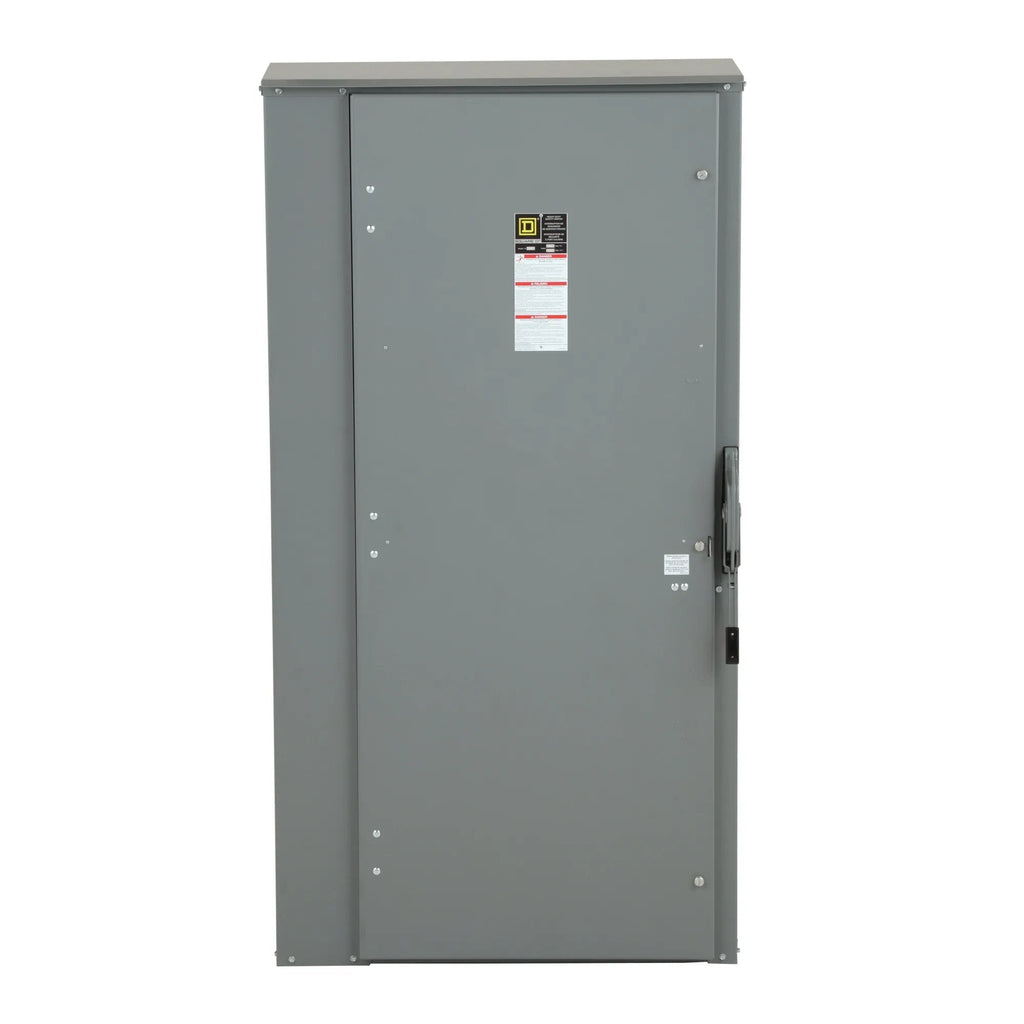

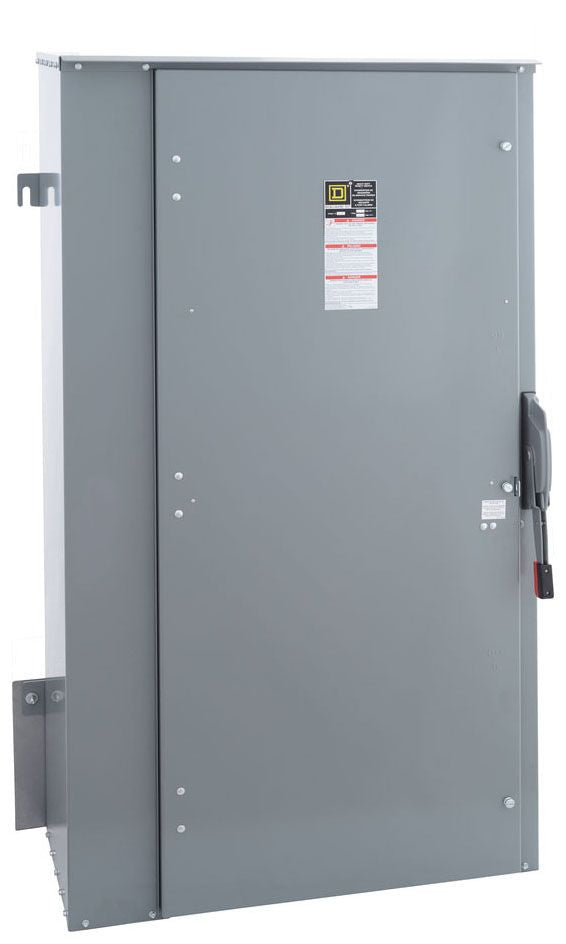

HU368R is a Square D 3-pole heavy duty non-fusible safety switch rated for 1200 Amps and 600 Volts AC/DC with a NEMA 3R enclosure.HU368R features a 200kA interrupting rating at 600V, surface mounting type, and is suitable for outdoor use. It is constructed with a galvannealed steel enclosure and complies with UL and RoHS standards.
- Key Specifications
- Amperage: 1200 Amps
- Voltage: 600 VAC/DC
- Poles: 3
- Phase: 3
- Interrupt Rating: 200kA @ 600V
- Mounting Type: Surface
- Enclosure Rating: NEMA 3R
- Fusibility: Non-Fusible
- Body Material: Galvannealed Steel
- Standards: UL, RoHS
- Wire Gauge: AWG 3/0 to 750 kcmil Copper or Aluminum
- Duty Rating: Heavy Duty
Specifications
- Part Number: HU368R
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600 AC/DC
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : ED
Product Data
- UPC : 785901259367
- GTIN : 00785901259367
- Country of Origin : Mexico

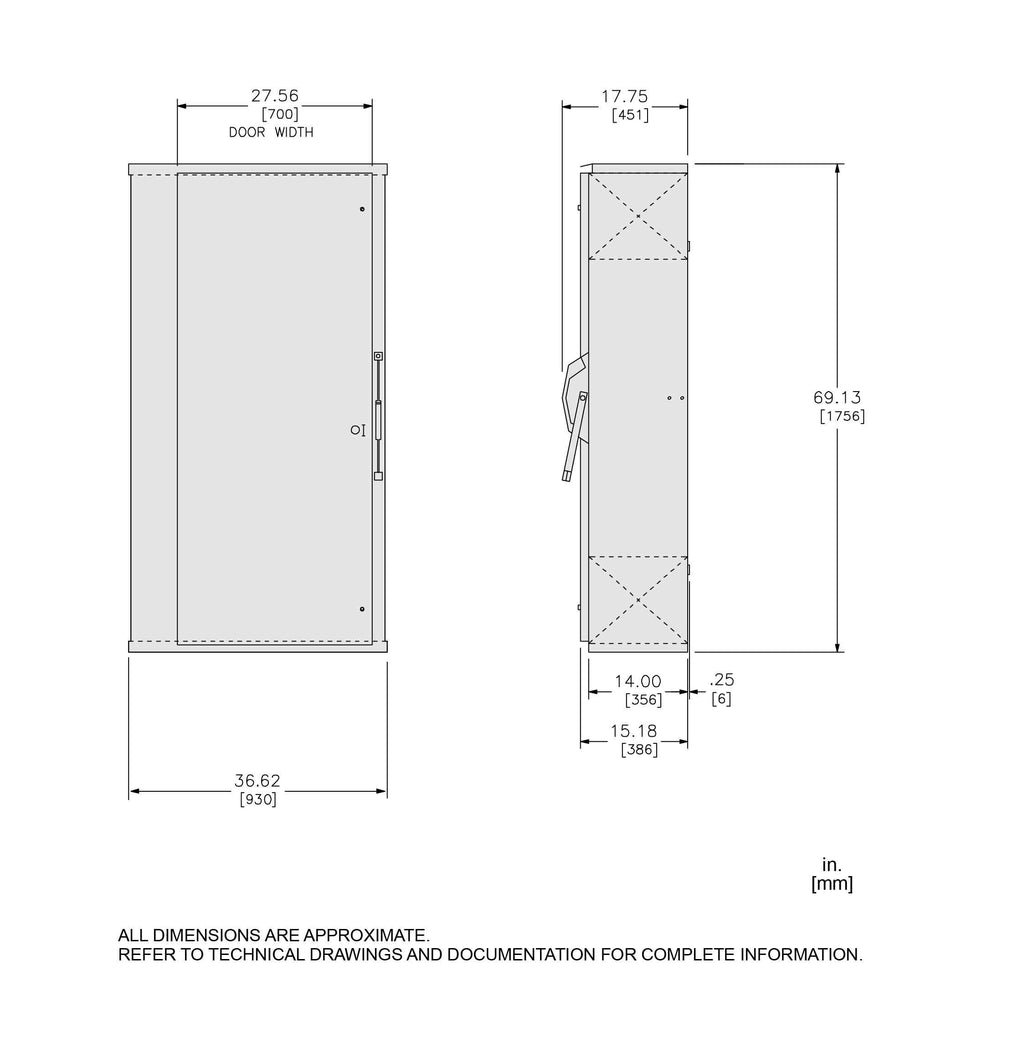

- Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
- Weight : 363.999
- Certification : UL Listed
