Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU368

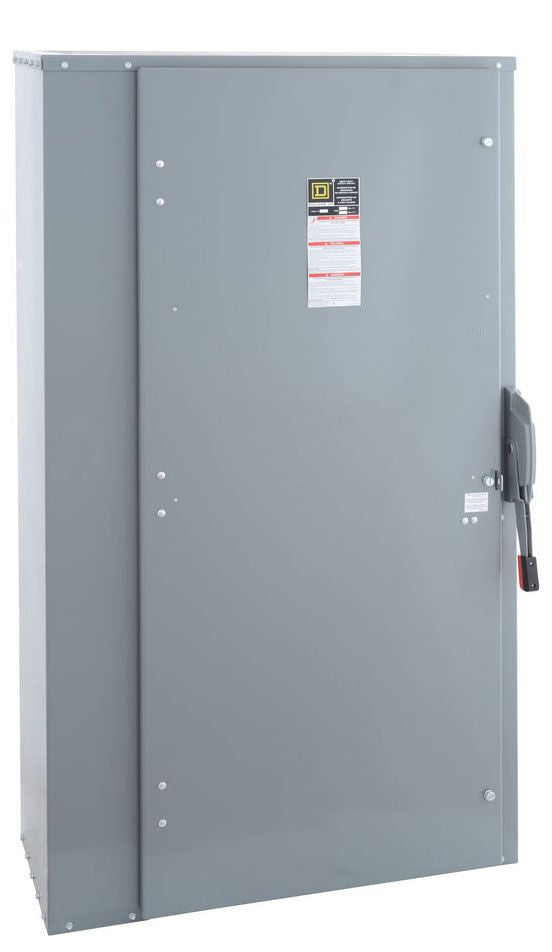

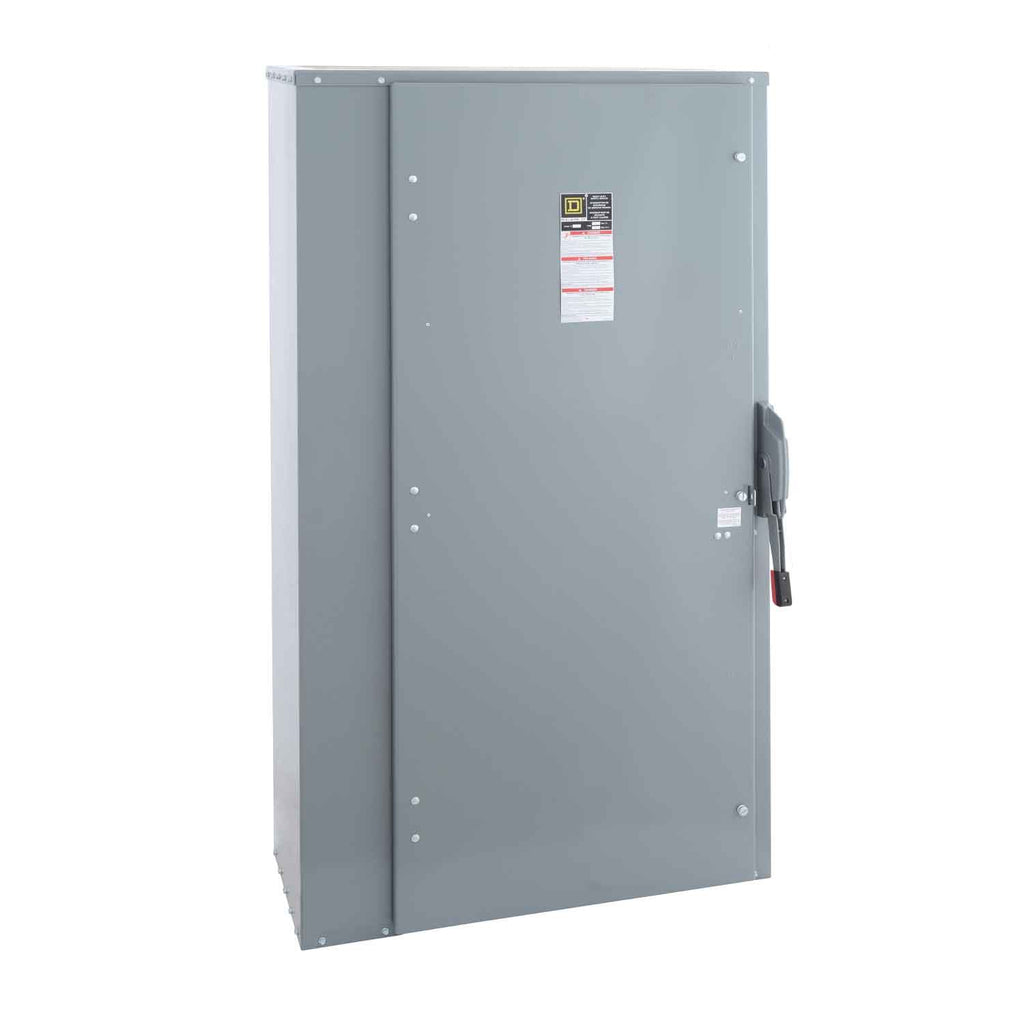

HU368 is a Square D heavy duty safety switch designed for industrial and commercial applications.HU368 features a 1200 Amp, 600VAC/DC rating with 3 poles and a NEMA 1 steel enclosure. It is a non-fusible, single throw type switch with a 200kA interrupting rating at 600V, suitable for service equipment use. The surface mounting switch supports wire gauges from AWG 3/0 to 750 kcmil copper or aluminum and complies with UL and RoHS standards.
- Manufacturer: Square D
- Part Number: HU368
- Amperage: 1200A
- Voltage: 600VAC/DC
- Poles: 3
- Mounting Type: Surface
- Interrupting Rating: 200kA @ 600V
- Enclosure: NEMA 1, Steel
- Fusibility: Non-Fusible
- Series/Frame: HU (Series E)
- Trip Unit: Single Throw
- Certifications: UL, RoHS
- Wire Gauge: AWG 3/0 to 750 kcmil Copper or Aluminum
Specifications
- Part Number: HU368
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600 AC/DC
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : ED
Product Data
- UPC : 785901195498
- GTIN : 00785901195498
- Country of Origin : Mexico

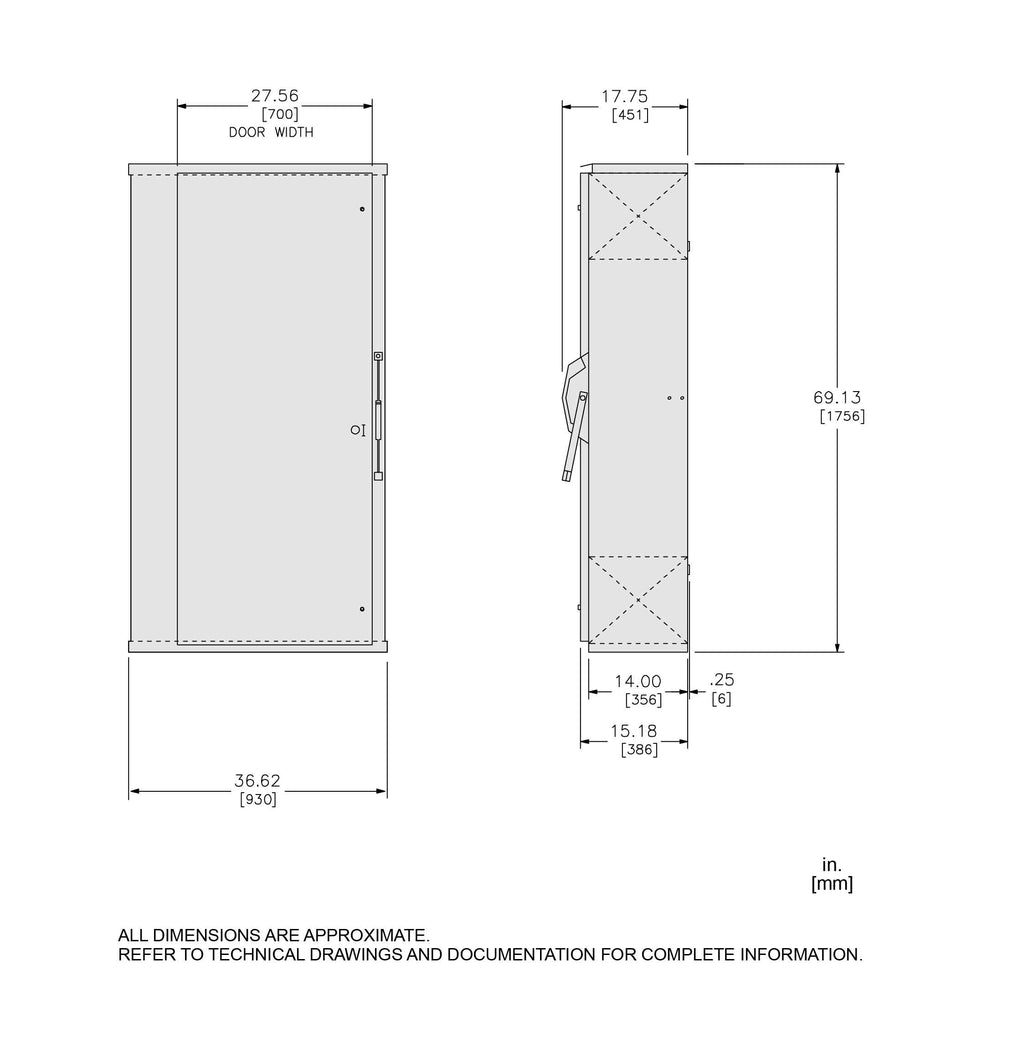

- Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
- Weight : 350
- Certification : UL Listed
