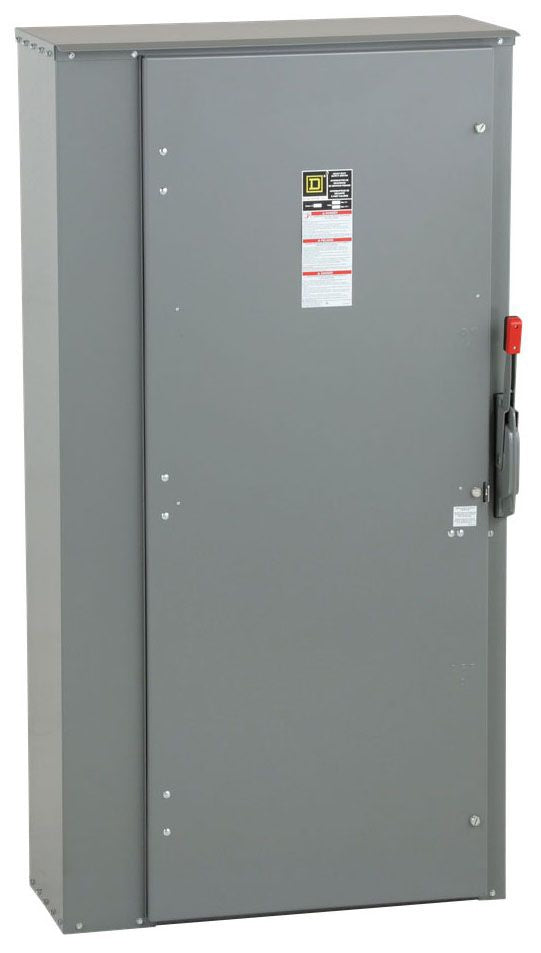

HU367R - Square D 800A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 3R

HU367R

HU367R is a heavy duty, non-fusible safety switch from Square D designed for robust electrical protection in commercial and industrial applications.This Square D HU367R safety switch features an 800 ampere rating, 600 volts AC/DC, and 3 poles with a 3-wire configuration. It is a single throw, non-fusible type with a NEMA 3R rainproof enclosure suitable for outdoor use. The switch includes a quick make/break mechanism, dual cover interlock for safety, and a galvannealed steel enclosure for durability. It is UL listed with a 200kA interrupt rating at 600V and supports up to 500 horsepower motor load. The switch is part of the Series E family and complies with federal and UL standards.

Key Specifications
• Amperage: 800A
• Voltage: 600VAC/DC
• Poles: 3
• Type: Non-Fusible, Single Throw
• Mounting: Surface Mount
• Interrupt Rating: 200kA @ 600V
• Enclosure: NEMA 3R Rainproof
• Series/Frame: Series E
• Horsepower Rating: 500 HP
• Certifications: UL Listed, RoHS Compliant, Federal Specification WS-865c
• Dimensions (HxWxD): 69.13 x 36.62 x 17.75 inches
• Weight: Approximately 368 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HU367R
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600 AC/DC
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : ED



Product Data

• UPC : 785901442448
• GTIN : 00785901442448
• Country of Origin : Mexico
• Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
• Weight : 341.999
• Certification : UL Listed
