Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU365SS

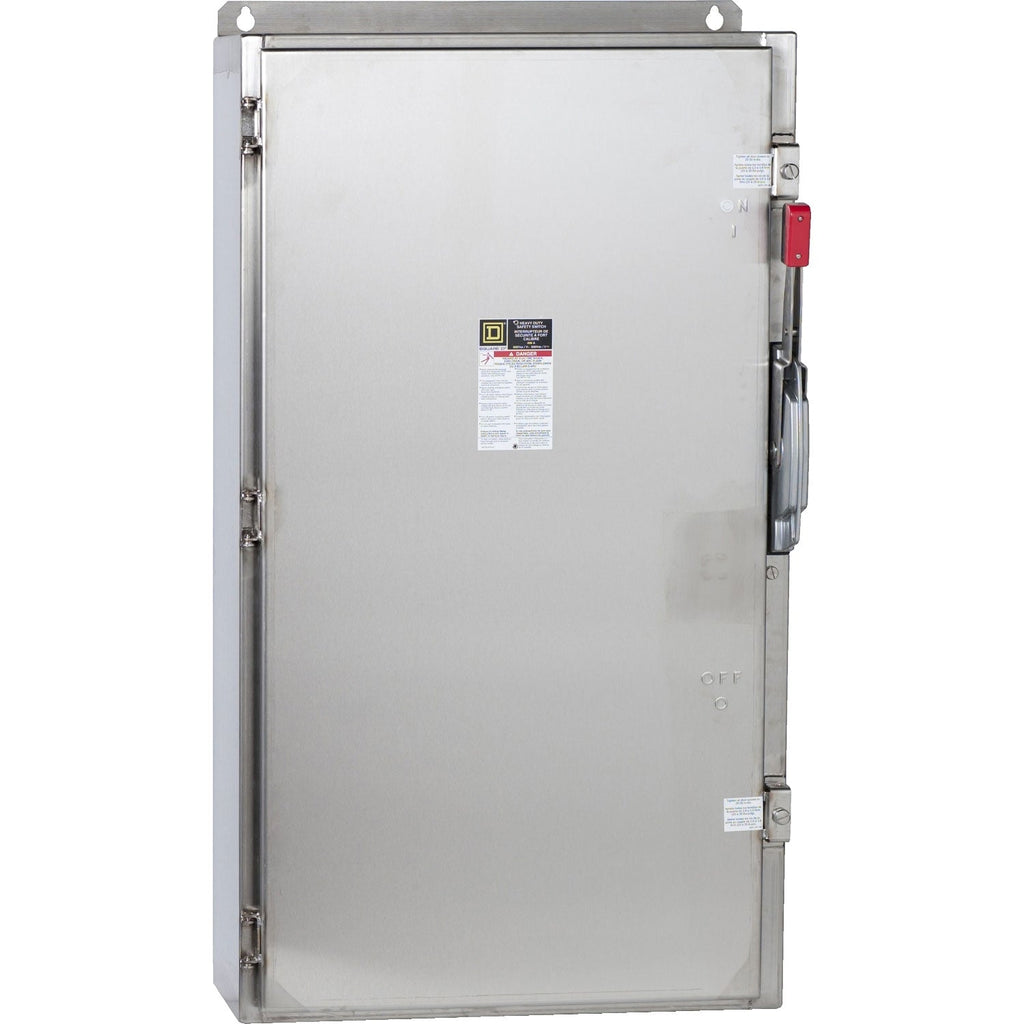

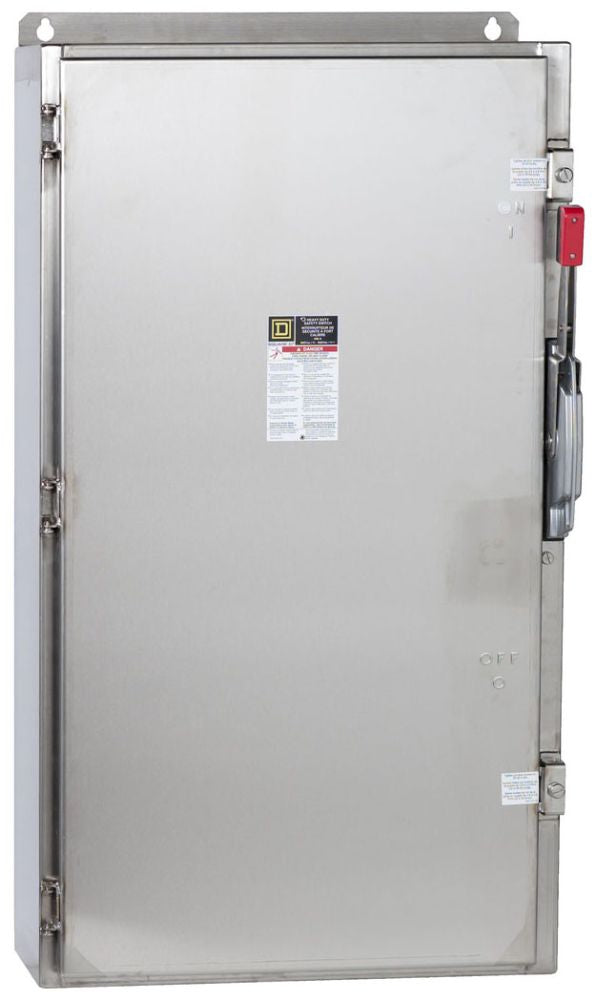

HU365SS is a Square D heavy duty non-fusible single throw safety switch designed for industrial power distribution applications.This switch features a 400 ampere rating, 600 VAC/VDC voltage rating, and 3 poles, supporting up to 350 horsepower. It is constructed with 316 stainless steel and rated for NEMA 4, 4X, and 5 environments, providing corrosion resistance and suitability for indoor/outdoor use. The device is non-fusible and designed for heavy application use with a single throw disconnect mechanism.
- Amperage: 400 A
- Voltage: 600 VAC/VDC
- Poles: 3
- Horsepower Rating: 350 hp
- Mounting Type: Heavy duty safety switch
- Interrupt Rating: Suitable for heavy duty applications
- Series/Frame: Heavy Duty, Series E
- Material: 316 Stainless Steel
- NEMA Rating: 4, 4X, 5
- Type: Non-Fusible Single Throw Disconnect
- Phase: 3 Phase
- Dimensions: 26.25 in W x 9.75 in D x 48 in H
Specifications
- Part Number: HU365SS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 5
- Compatible Frames : ED
Product Data
- UPC : 785901961109
- GTIN : 00785901961109
- Country of Origin : Mexico
- Dimensions : 48 in (1219.2 mm) x 26.25 in (666.75 mm) x 9.75 in (247.65 mm) (Height x Width x Depth)
- Weight : 170
