Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU361SS

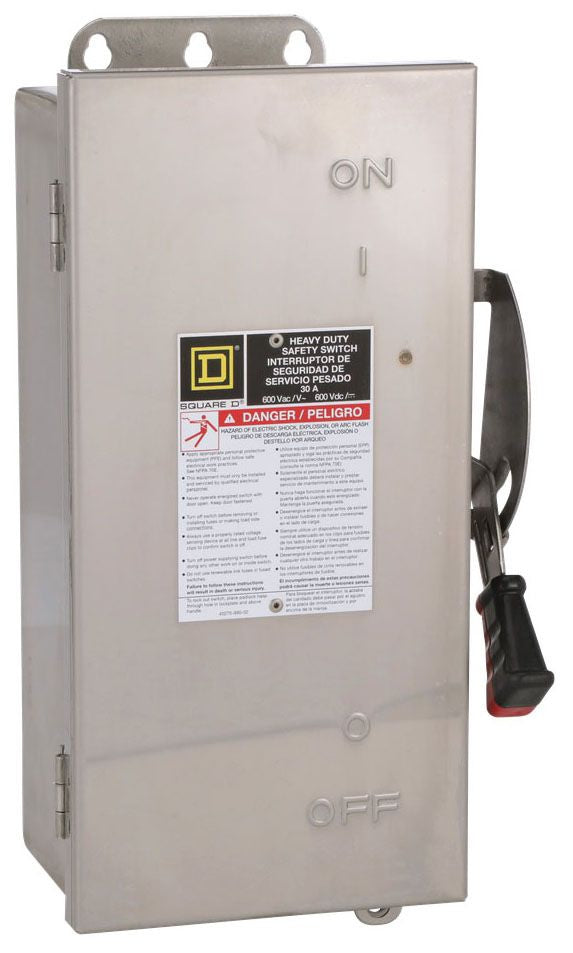

HU361SS is a Square D heavy duty non-fusible safety switch rated for 30 amps and 600 volts with a 3-pole configuration.
This switch features a 316 stainless steel NEMA 3/3R/4/4X/5/12 rated enclosure that is rainproof, dust tight, and corrosion resistant, suitable for indoor and outdoor use. It has a 200kA interrupting rating at 600V, surface mounting type, and UL listing for safety compliance. The switch uses lug terminal connections and supports wire sizes from 14 AWG to 6 AWG copper or aluminum.
- Key Specifications
- Manufacturer: Square D
- Part Number: HU361SS
- Amperage: 30A
- Voltage: 600 VAC
- Poles: 3
- Enclosure: 316 Stainless Steel, NEMA 3/3R/4/4X/5/12 Rated
- Interrupt Rating: 200kA at 600V
- Mounting Type: Surface
- Terminal Connection: Lugs
- UL Listed
- Wire Size Range: 14 AWG to 6 AWG (Cu/Al)
- Part Number: HU361SS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 3/3R/4/4X/5/12
- UPC : 078590163725
- GTIN : 00785901259367
- Dimensions : 14.93 in (379.22 mm) x 8.67 in (220.22 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 13.45
