Description
HU365R

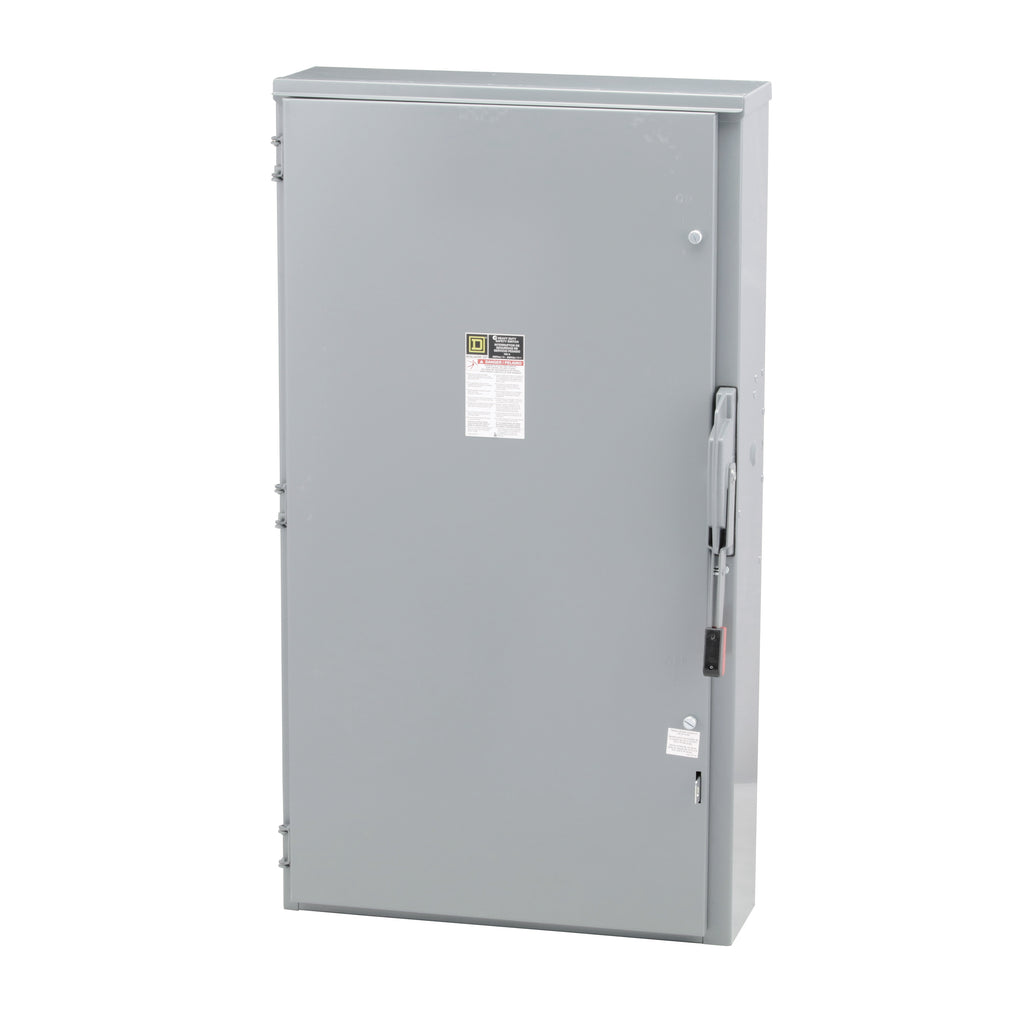

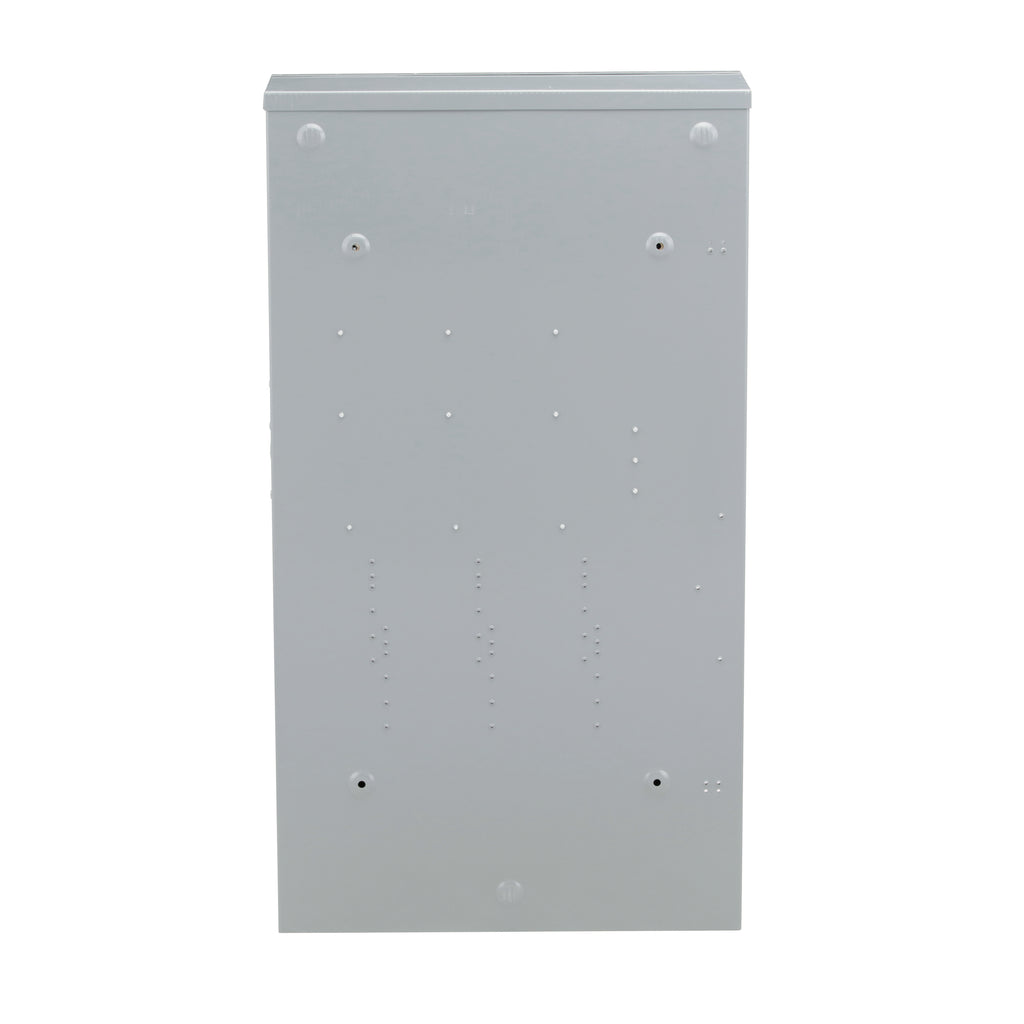

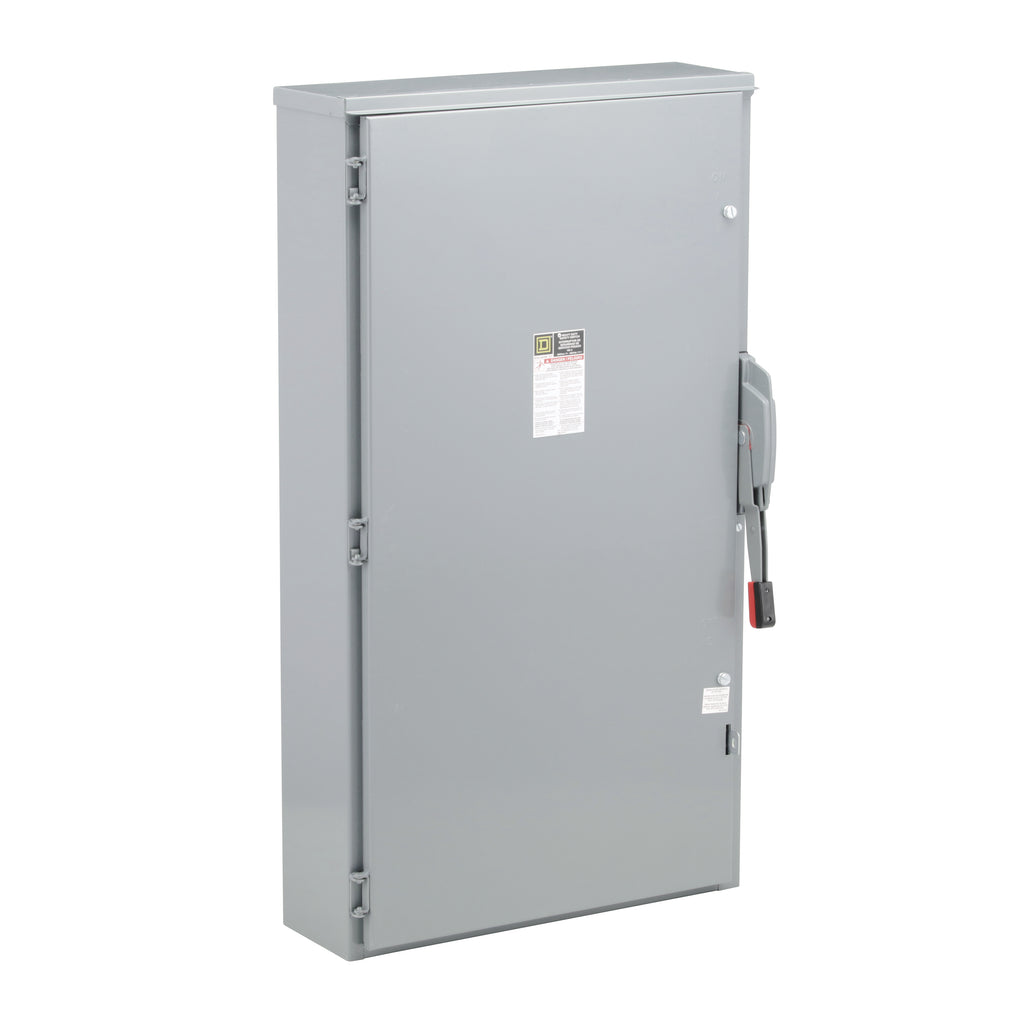

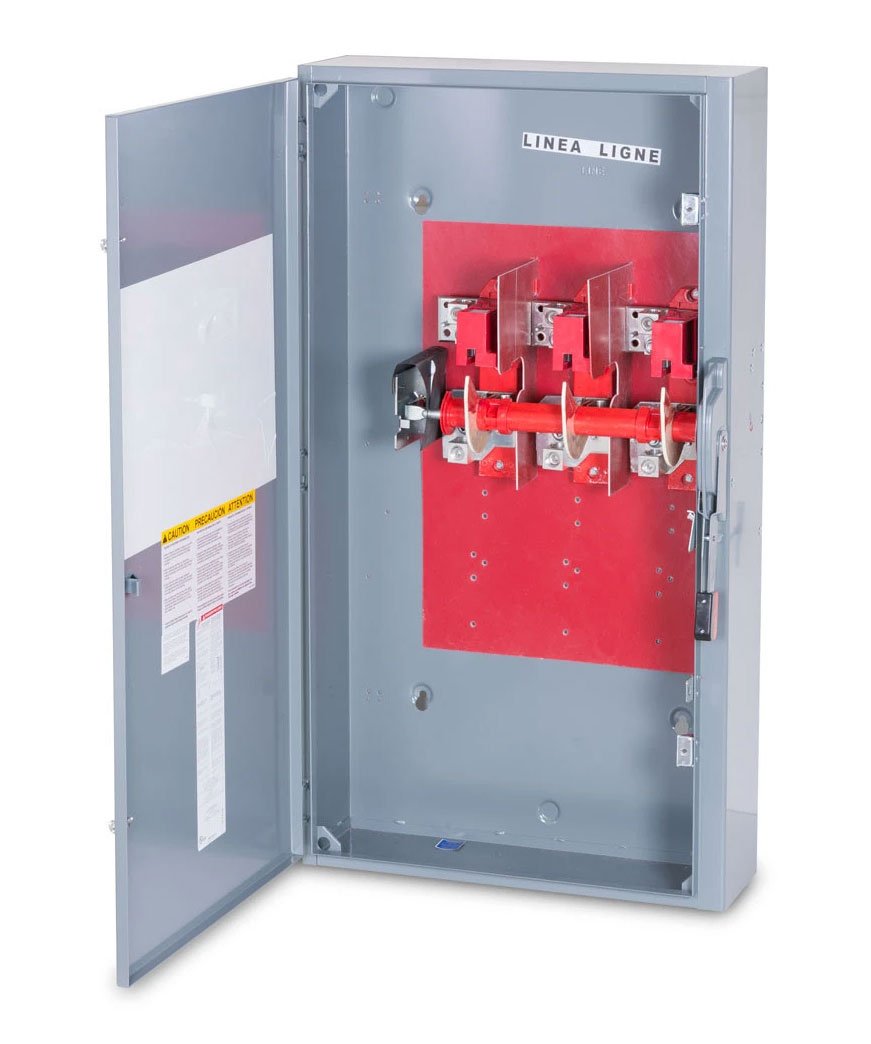

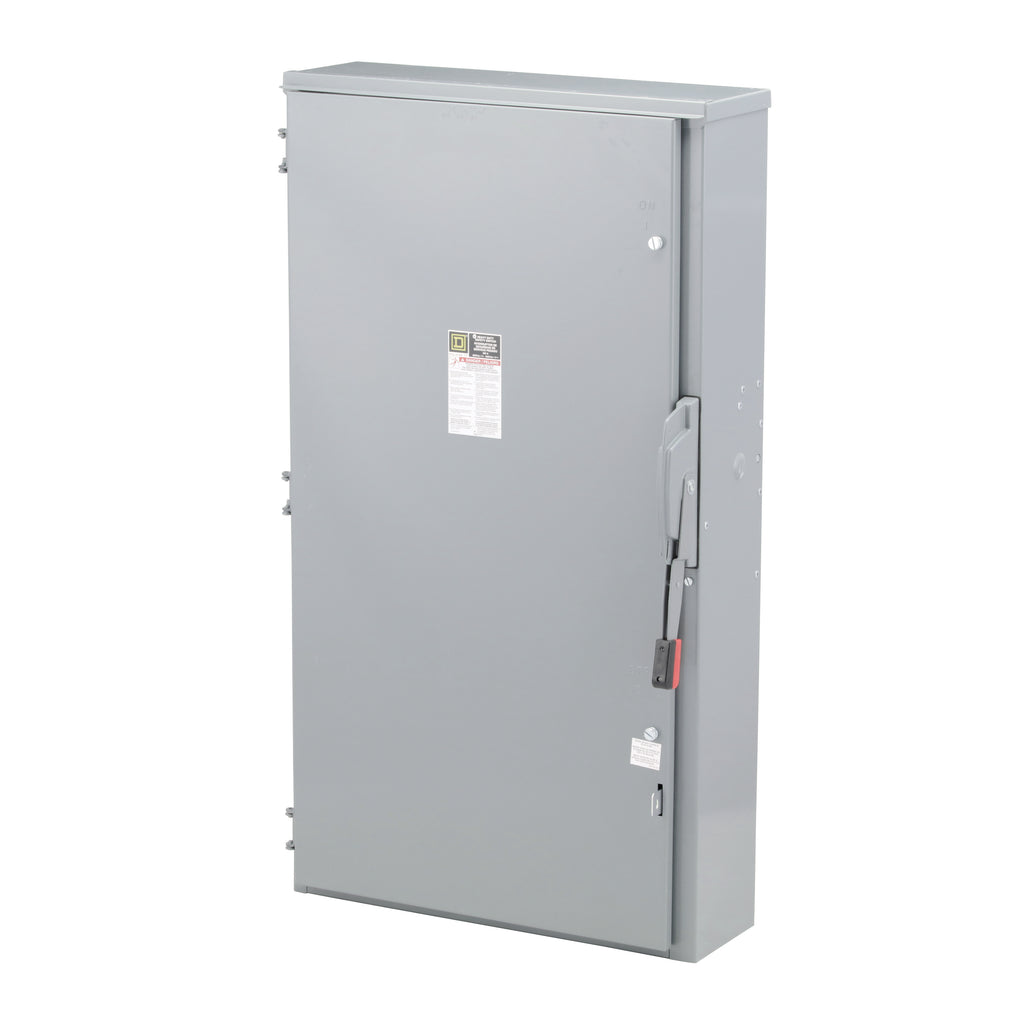

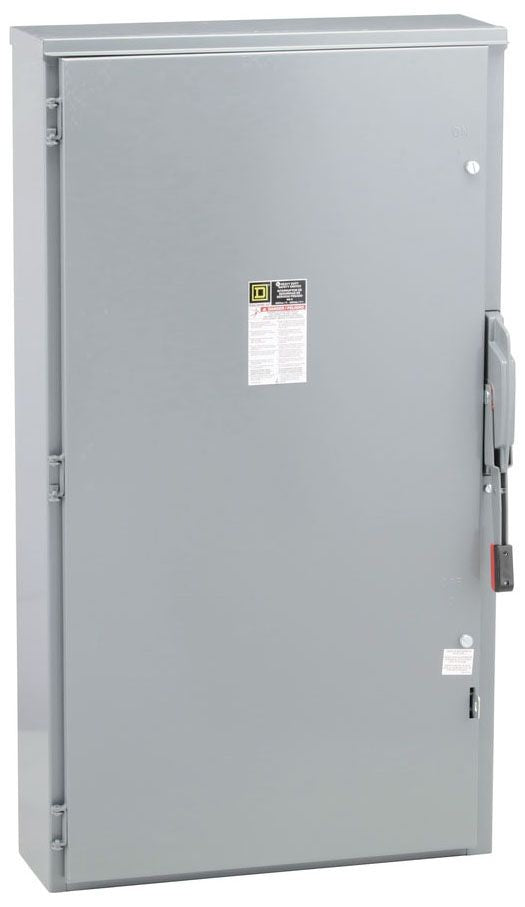

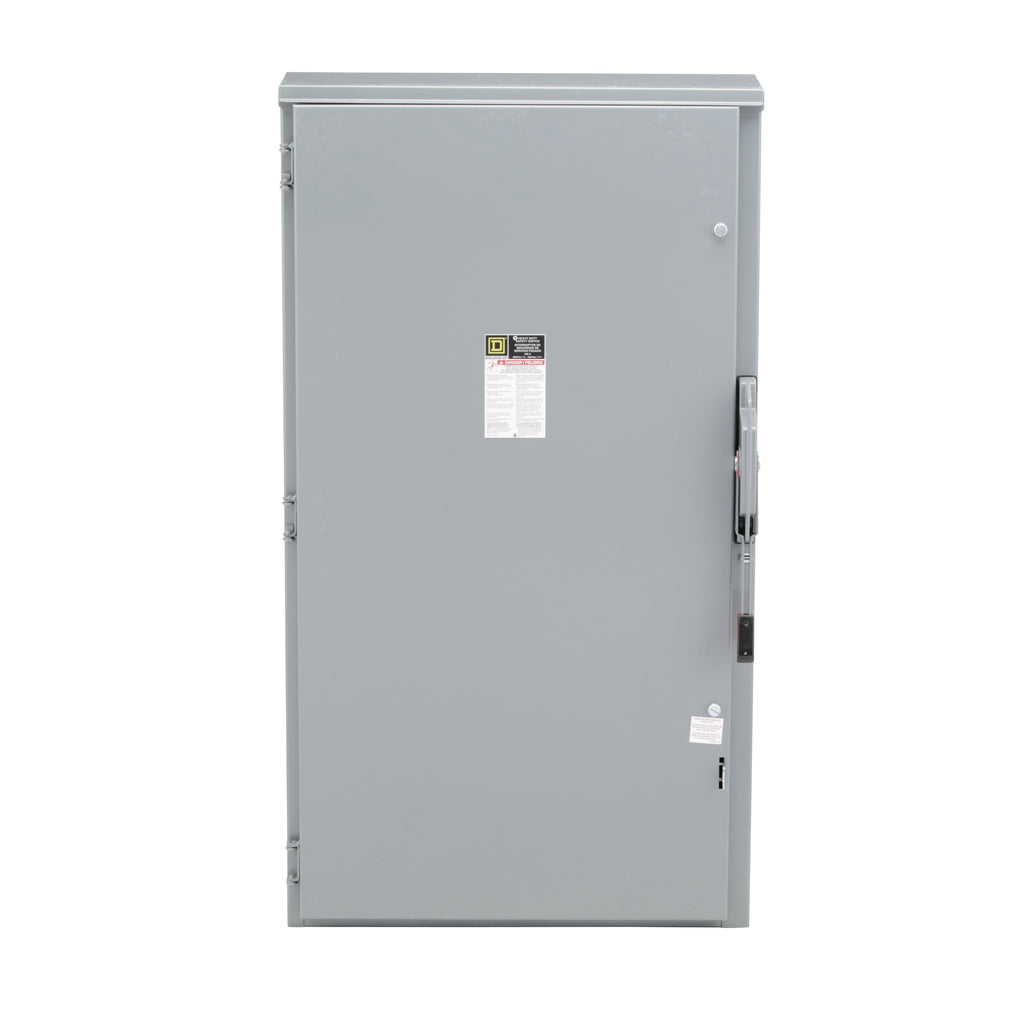

The Square D HU365R is a 3 phase 3 pole 600 Volt 400 Amp HU type Disconnect Switch. This switch has a Nema rating of 3R and an AIC rating of 200kA@600V. The HU365R is a single switch configuration and is non fused.
Specifications
- Part Number: HU365R
- Manufacturers: Square D
- Sub-Category: Disconnect
- UPC: 785901450481
- GTIN: 785901450481
- Poles: 3
- Phase: 3
- Voltage: 600
- Amperage: 400
- AIC Rating: 200kA@600V
- Family: Series E
- Type: HU
- Dimensions: Depth 10.13 in (257.30 mm) Width 27.88 in (708.15 mm) Height 50.31 in (1277.87 mm)
- Weight: 236.95
