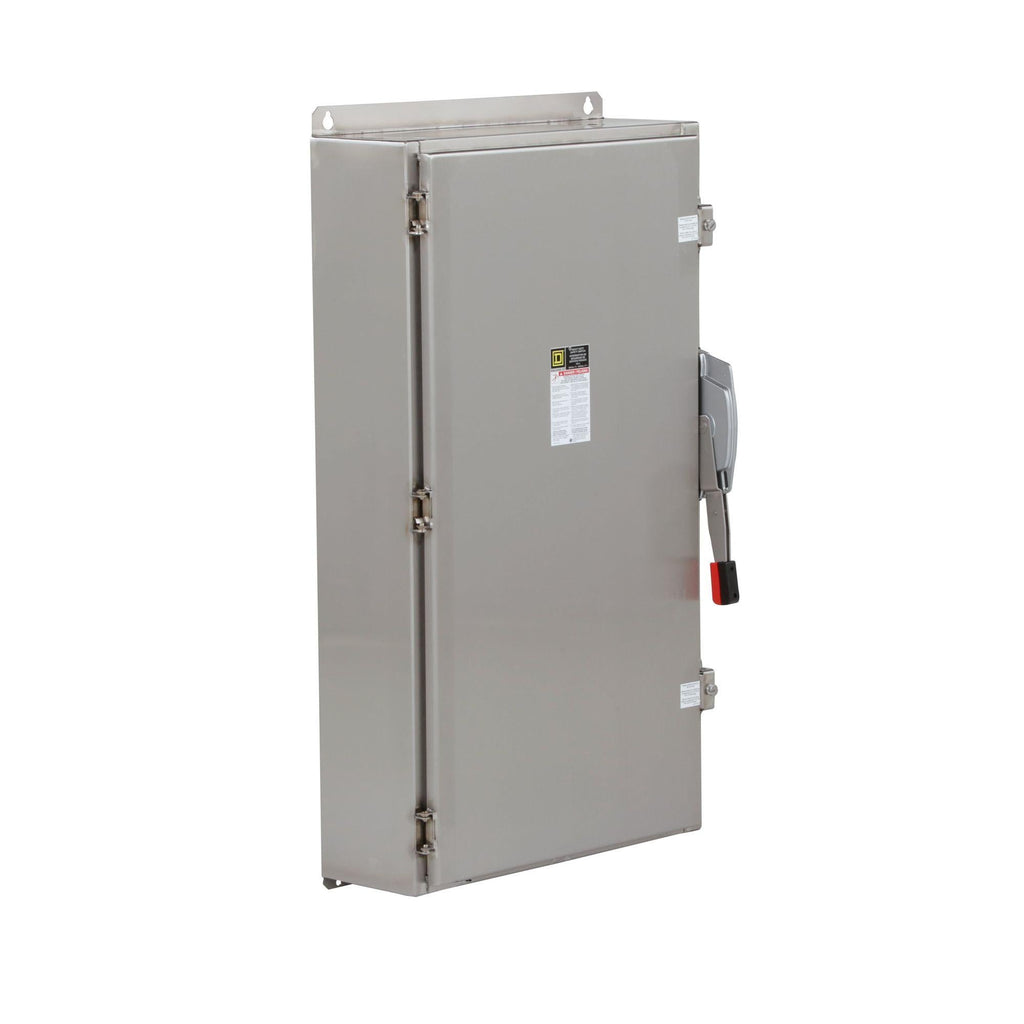

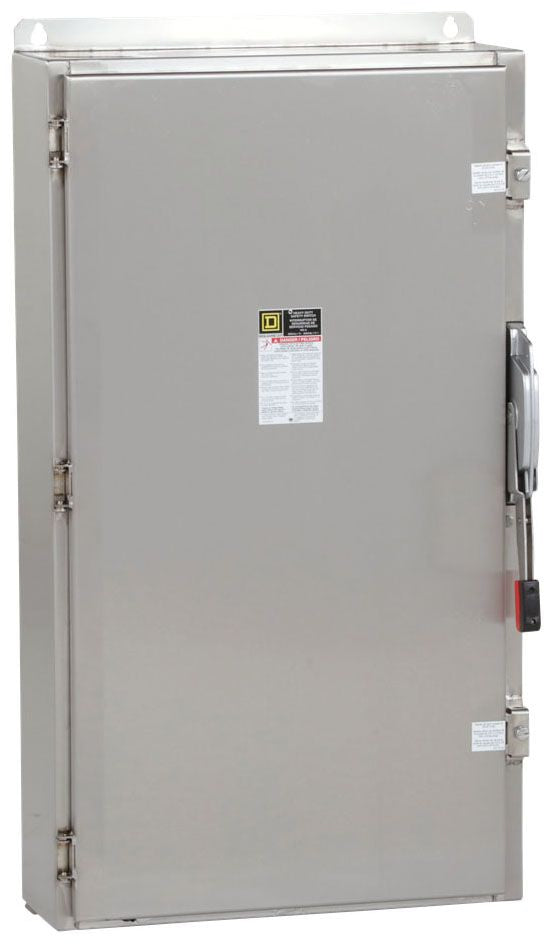

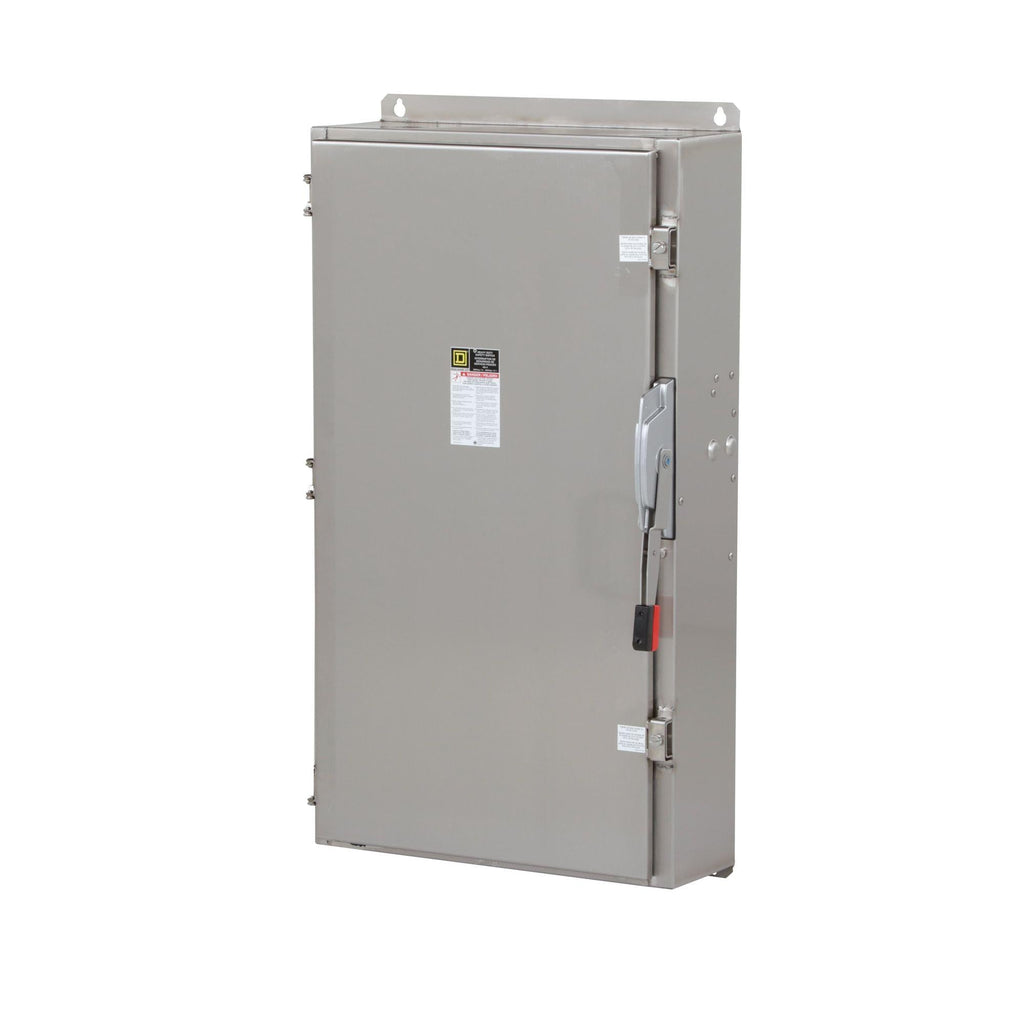

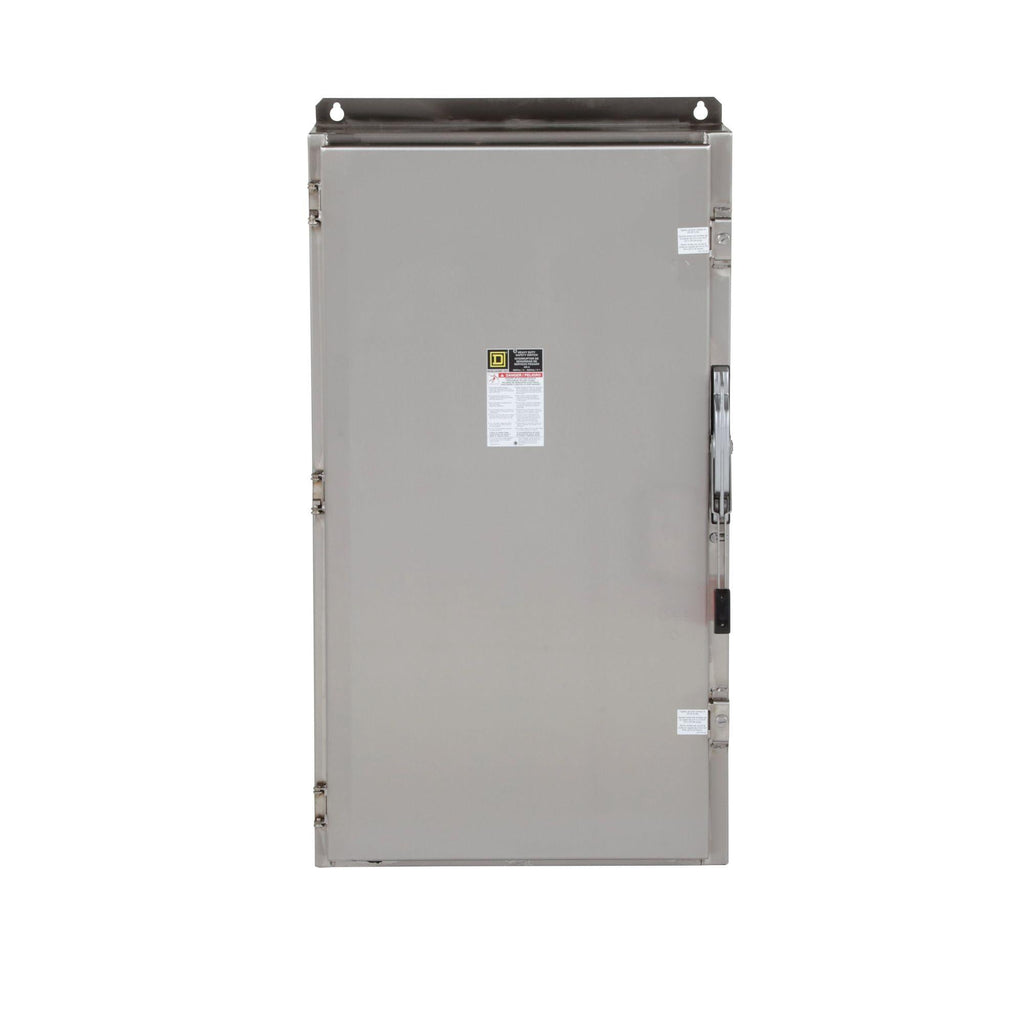

HU365DS - Square D 400A 600V 3-Pole Heavy Duty Safety Switch NEMA 4/4X/5 Stainless Steel

HU365DS

HU365DS is a Square D heavy duty safety switch designed for reliable electrical protection in demanding environments.This 3-pole, non-fusible safety switch features a 400 ampere rating and 600 volt AC/DC capacity. It includes a corrosion-resistant 304 stainless steel enclosure rated NEMA 4/4X/5 for dust and water tightness, suitable for indoor and outdoor use. The switch supports a 200kA interrupt rating and is surface mountable with lug terminals. It is part of the Series E family and supports up to 350 horsepower motors. Operating temperature ranges from -22 to 104 degrees Fahrenheit.

Key Specifications
• Amperage: 400 A
• Voltage: 600 VAC/VDC
• Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: 200 kA
• Series/Frame: Series E
• Enclosure: NEMA 4/4X/5
• Material: 304 Stainless Steel
• Contact Form: TPST (Triple Pole Single Throw)
• Horsepower Rating: 50 hp to 350 hp
• Temperature Rating: -22 to 104 °F
• Terminal Type: Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU365DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 5
• Compatible Frames : ED

Product Data

• UPC : 785901195979
• GTIN : 00785901195979
• Country of Origin : Mexico
• Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 175.001 lb
• Certification : UL listed
