Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU364SS

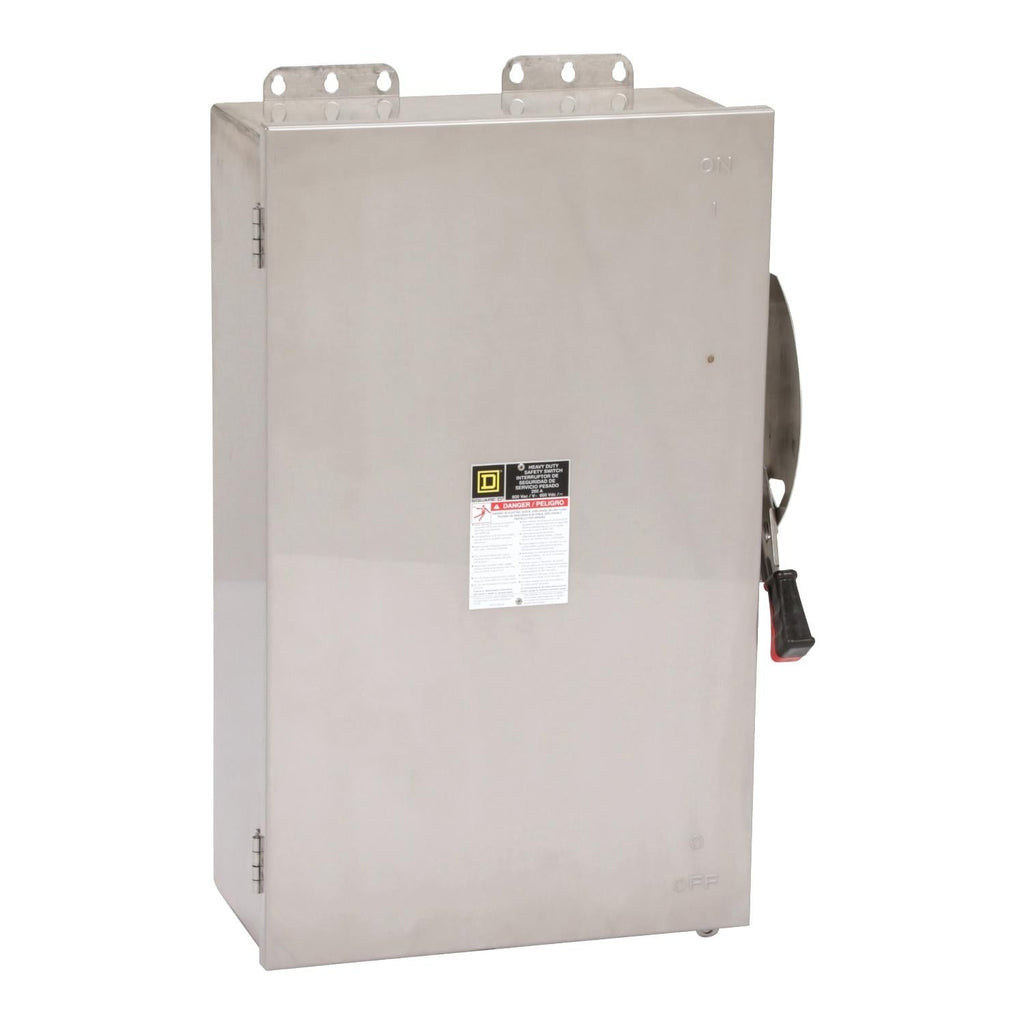

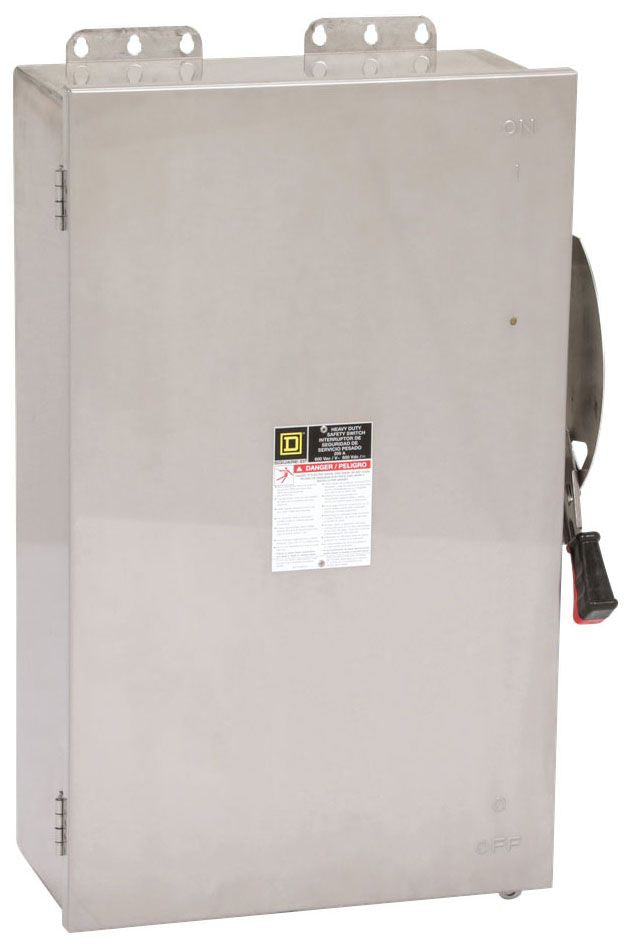

HU364SS is a heavy duty, non-fusible safety switch designed for reliable circuit isolation in demanding environments. This Square D model features a robust stainless steel enclosure and is rated for 200A, 3-pole, 600V AC/DC applications. Engineered for industrial and commercial use, the HU364SS provides superior durability and safety with a NEMA 4X/5 stainless steel enclosure, surface mounting, and a 200 kA short-circuit withstand rating. It is ideal for applications requiring corrosion resistance, dust tightness, and watertight protection.
- Part Number: HU364SS
- Manufacturer: Square D
- Amperage: 200A
- Voltage: 600V AC/DC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 200 kA
- Series/Frame: HU Series
- Enclosure Rating: NEMA 4X/5 Stainless Steel 316
- Disconnect Type: Non-Fusible
- Certifications: UL Listed E2875
- Wire Size: AWG 6 to 250 kcmil
Specifications
- Part Number: HU364SS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 3/3R/4/4X/5/12
- Compatible Frames : ED
Product Data
- UPC : 785901413134
- GTIN : 00782113207247
- Dimensions : 29 in (736.6 mm) x 19.25 in (488.95 mm) x 8.88 in (225.55 mm) (Height x Width x Depth)
- Weight : 57.02 lb
