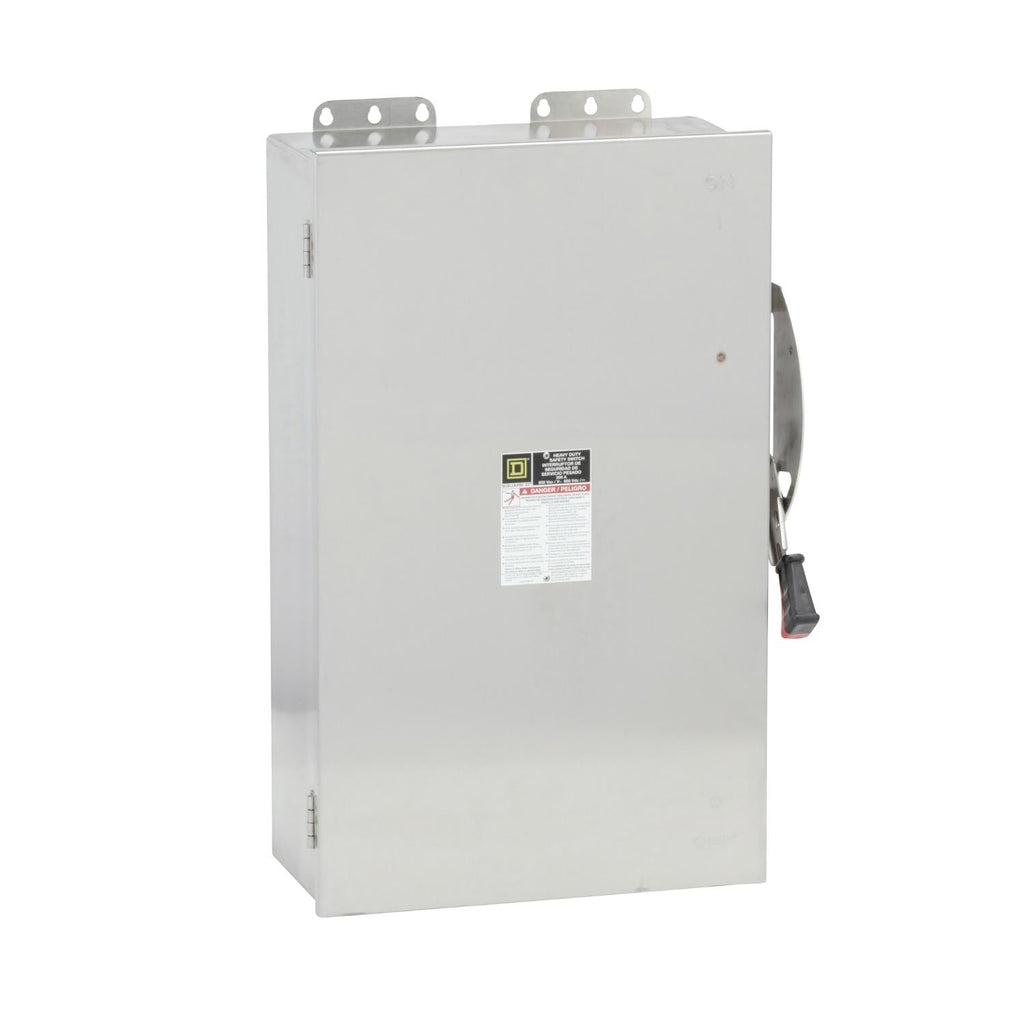

HU364DS - Square D 200 Amp 600 Volt 3 Pole Heavy Duty Non-Fusible Safety Switch NEMA 4X

HU364DS

HU364DS is a Square D heavy duty safety switch rated for 200 amps and 600 volts with a 3-pole configuration and NEMA 4X stainless steel enclosure.This non-fusible single throw safety switch is designed for 3-phase, 3-wire applications. It features a 200kA interrupt rating at 600 volts and is UL listed for safety and reliability. The enclosure is constructed from 304 stainless steel, providing durability and corrosion resistance suitable for harsh environments. It is ideal for industrial and commercial power distribution where a robust disconnect switch is required.

• Amperage: 200 Amps
• Voltage: 600 Volts
• Poles: 3 Pole
• Type: Non-Fusible
• Enclosure: NEMA 4X, 304 Stainless Steel
• Interrupt Rating: 200kA @ 600V
• Phase: 3 Phase
• Wiring: 3 Wire
• Certifications: UL Listed
• Mounting Type: Surface Mount
• Series/Frame: Heavy Duty Safety Switch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU364DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : HU
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 4/4X
• Compatible Frames : ED

Product Data

• UPC : 785901023746
• GTIN : 00887621872595
• Dimensions : 29 in (736.6 mm) x 19.25 in (488.95 mm) x 8.88 in (225.55 mm) (Height x Width x Depth)
• Weight : 55.151 lb
