Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU363WC

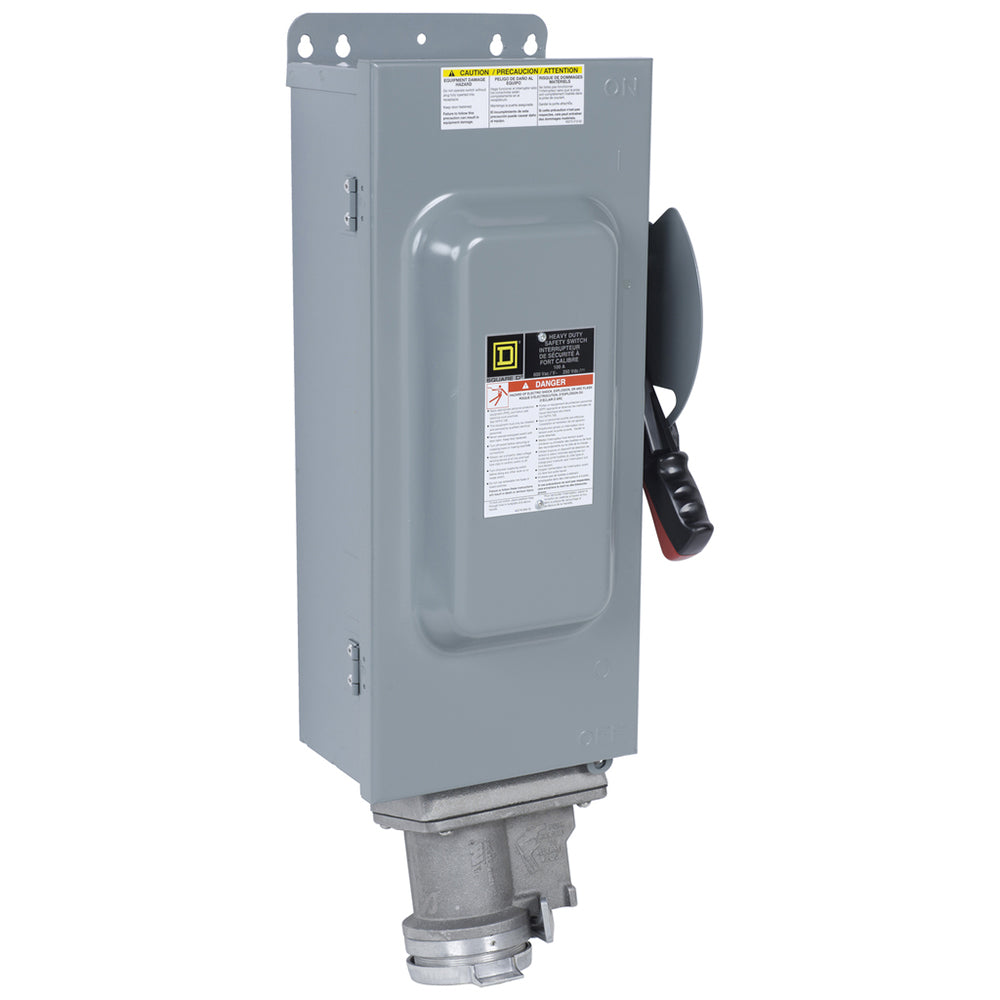

HU363WC is a Square D heavy duty safety switch rated for 100 amps and 600 volts with 3 poles and a non-fusible design.HU363WC features a NEMA 1 indoor enclosure suitable for general purpose applications, supporting up to 100 horsepower at 600 VAC for three-phase motors. This switch is designed for heavy duty use with a 3-wire configuration and is ideal for service entrance applications when equipped with the appropriate grounding kit.
- Amperage: 100A
- Voltage: 600 VAC/DC
- Poles: 3
- Type: Non-fusible
- Enclosure: NEMA 1 indoor
- Horsepower rating: 100 HP at 600 V AC
- Mounting: Surface mount
- Phase: 3-phase
- Heavy duty construction
- Suitable for service entrance with grounding kit
- Manufacturer: Square D
- Category: Safety Switch
Specifications
- Part Number: HU363WC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 1
- Compatible Frames : ED
Product Data
- Dimensions : 21.85 in (554.99 mm) x 10.5 in (266.7 mm) x 6.81 in (172.97 mm) (Height x Width x Depth)
- Weight : 10
