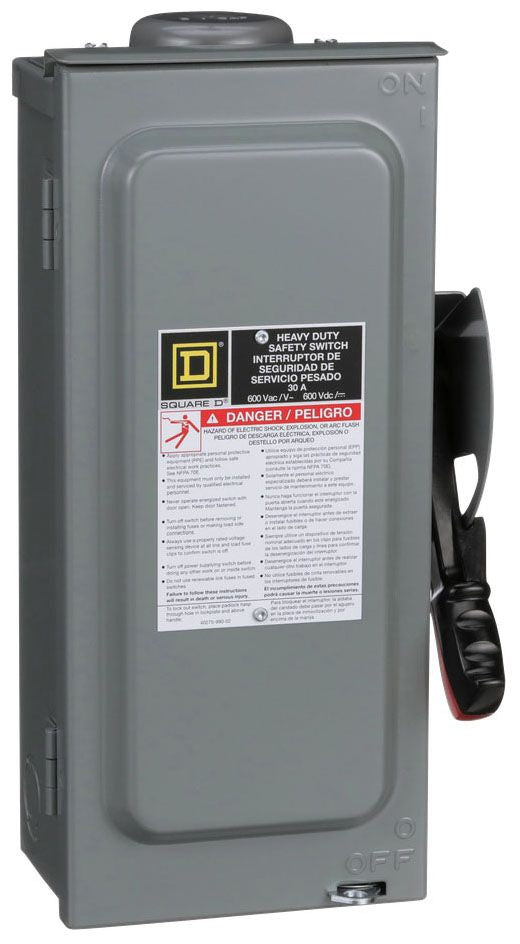

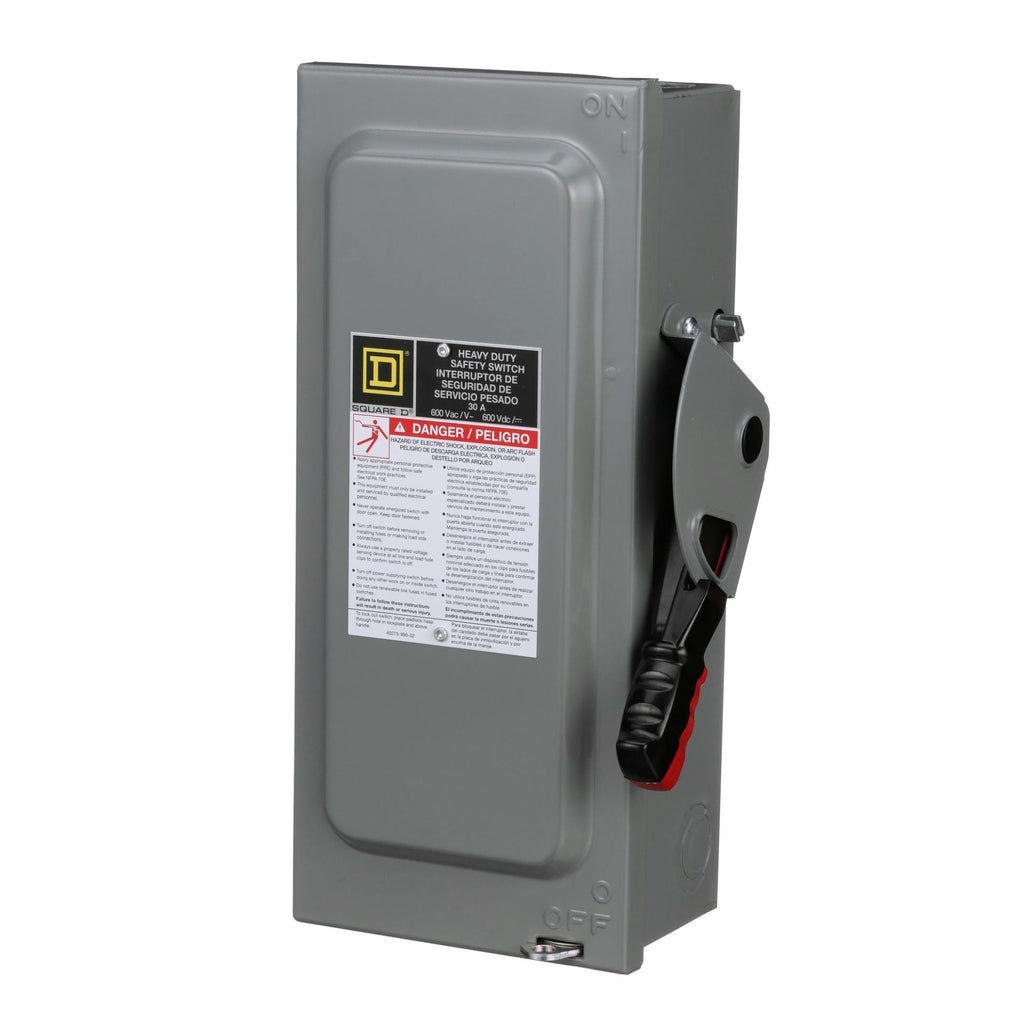

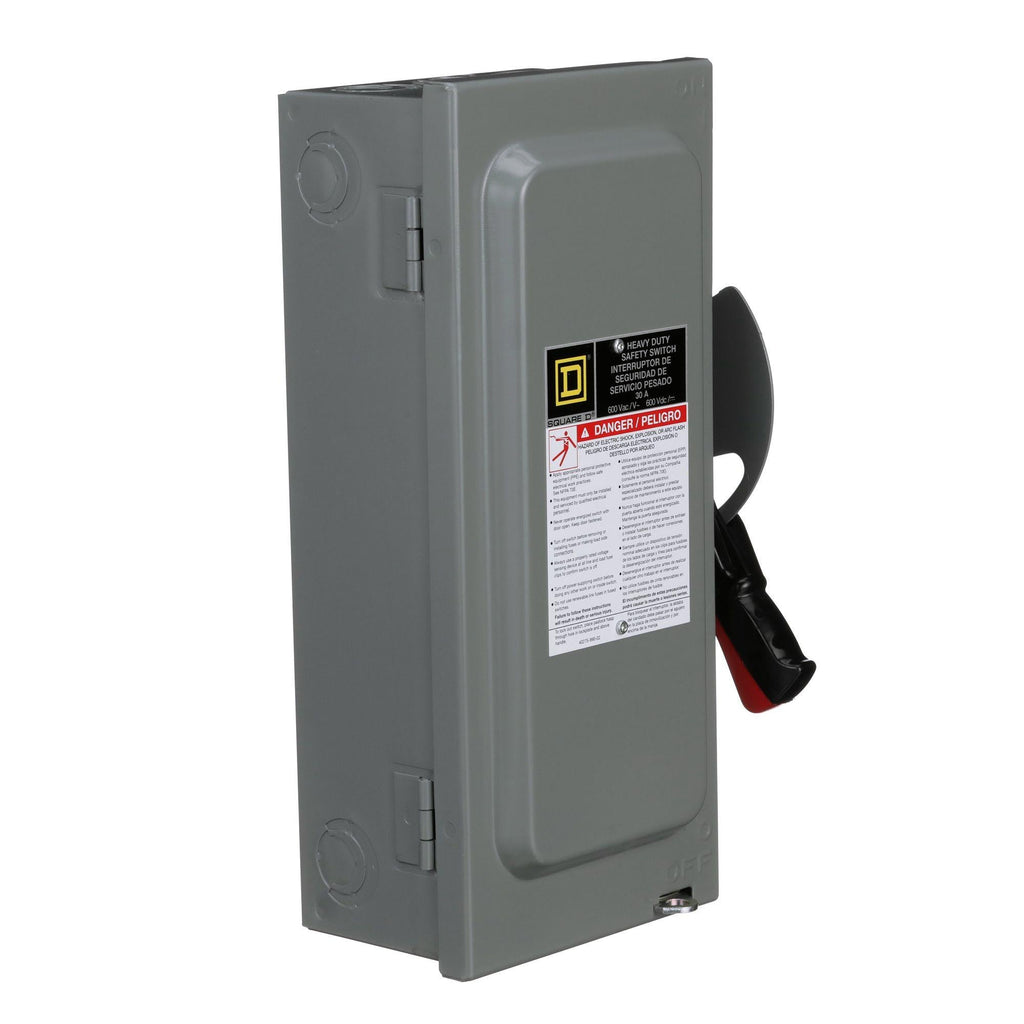

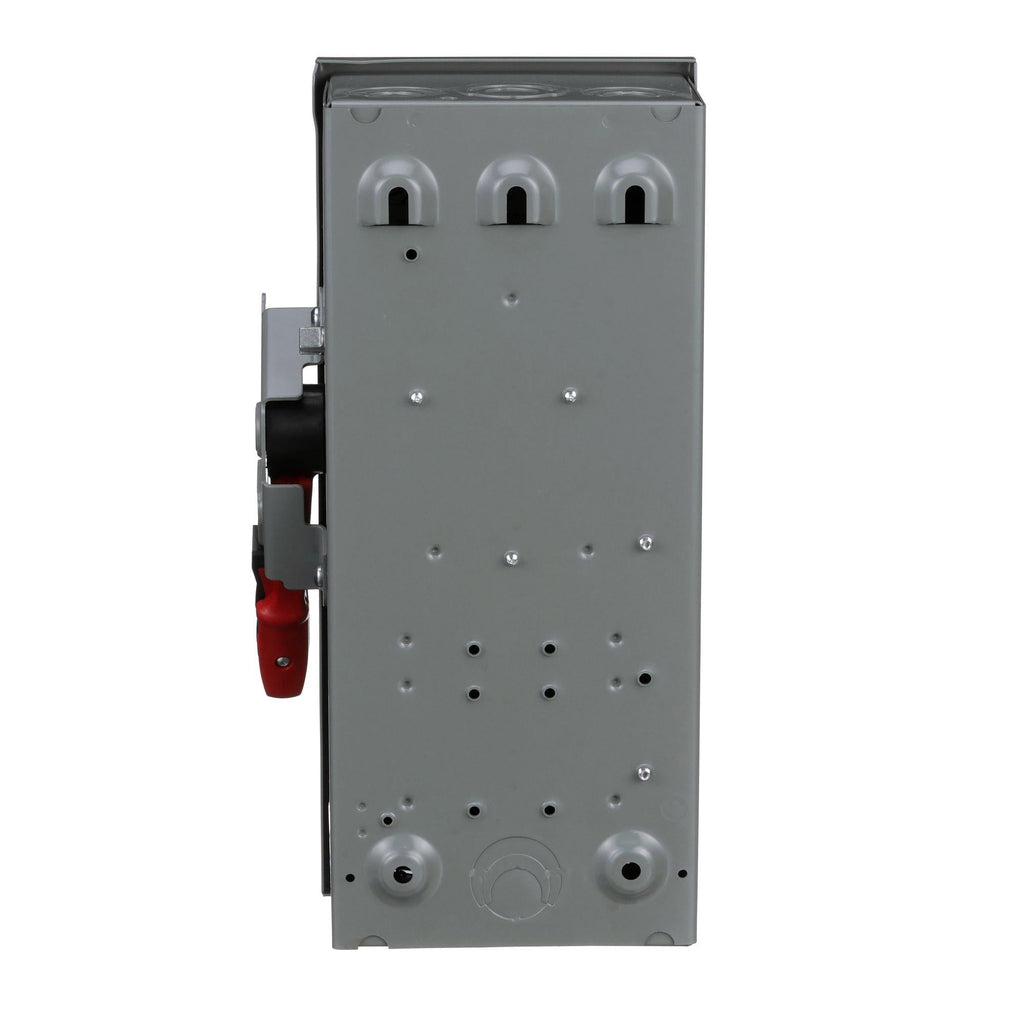

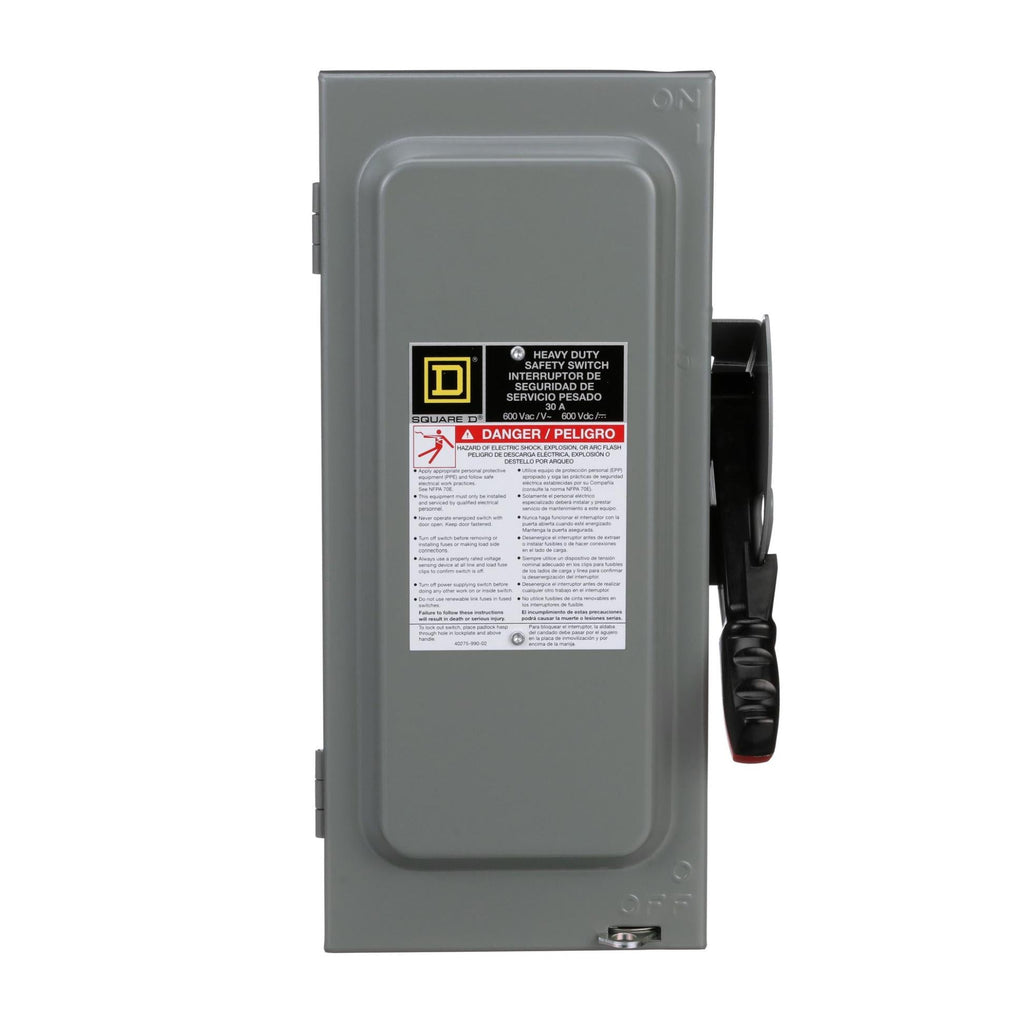

HU361NRB - Square D 30A 600V 3P Non-Fusible Heavy Duty Safety Switch NEMA 3R

HU361NRB

HU361NRB is a heavy duty non-fusible safety switch designed for reliable power disconnect in demanding environments. This 3-pole, 30A, 600V AC switch features a NEMA 3R enclosure for indoor and outdoor use, making it ideal for industrial and commercial applications. The switch is constructed with a galvannealed steel enclosure and includes a factory-installed neutral and bolt-on hub provision. It is rated for a short circuit interrupting capacity of 200kA at 600V AC and is compatible with H, K, R, J, and L fuses. The design provides superior mechanical endurance and thermal management for extended service life. This Square D Series F safety switch is UL listed and meets rigorous standards for durability and safety. It is surface mounted and supports wire gauges from AWG 12 to AWG 6 aluminum. The switch is suitable for use in a wide range of electrical systems, including those requiring high interrupt ratings and robust enclosures.

• Part Number: HU361NRB
• Manufacturer: Square D
• Amperage: 30A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Surface Mount
• Interrupt Rating: 200kA @ 600V AC
• Series/Frame: Series F
• Enclosure: NEMA 3R, Galvannealed Steel
• Neutral: Factory Installed
• Wire Gauge: AWG 12 / AWG 6 Aluminum
• Certifications: UL Listed, E2875

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU361NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Parts & Accessories
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 3R

Product Data

• UPC : 078590107788
• GTIN : 00785901077886
• Dimensions : 14.88 in (377.95 mm) x 7.55 in (191.77 mm) x 4.86 in (123.44 mm) (Height x Width x Depth)
• Weight : 8.411 lb
• Certification : UL
