Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HRXD63B200

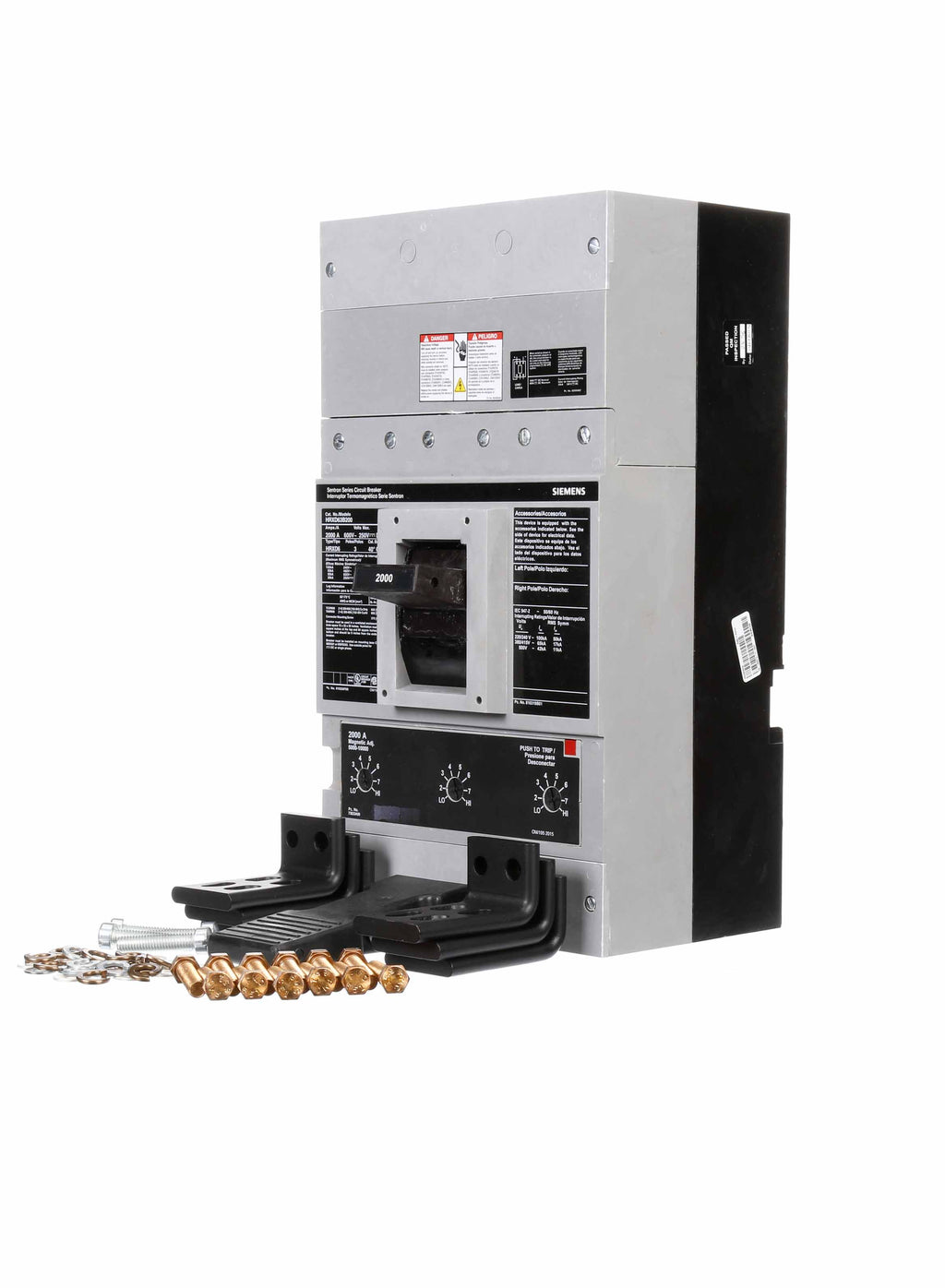

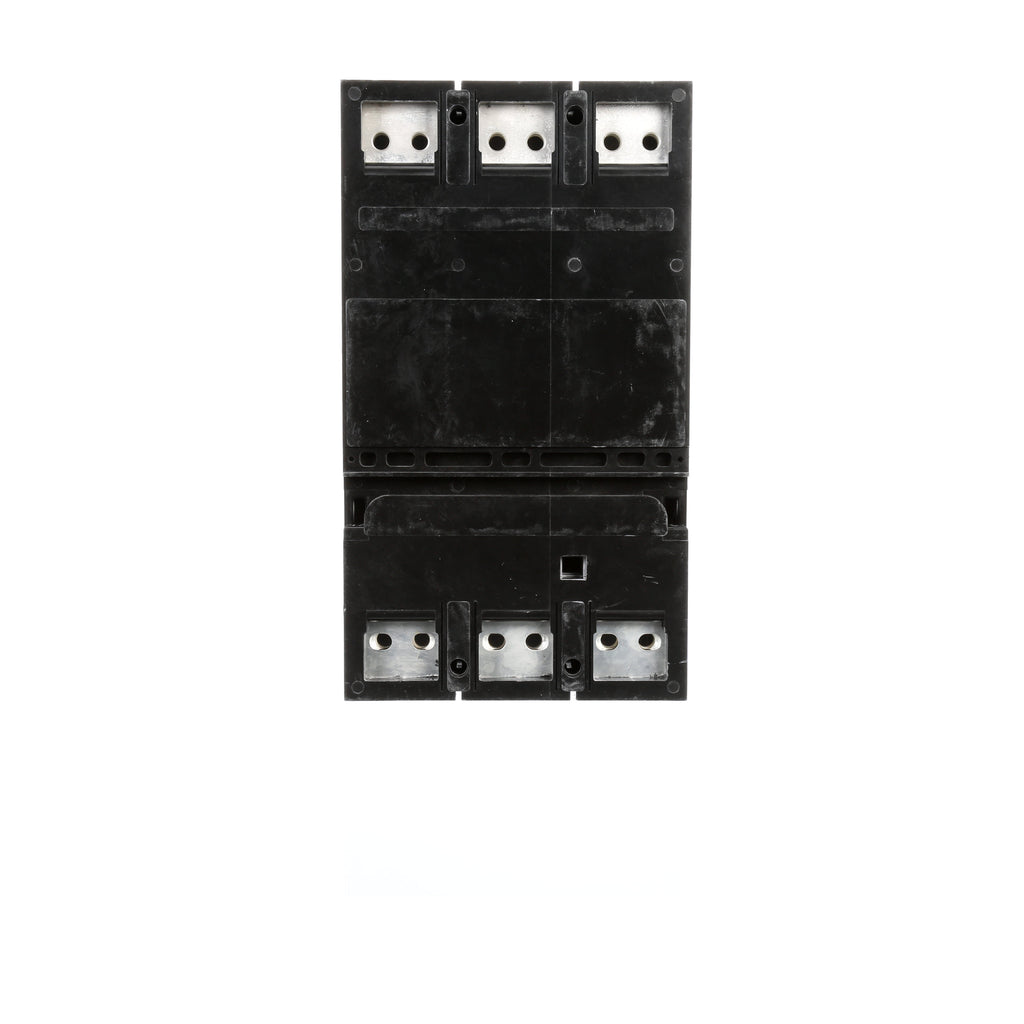

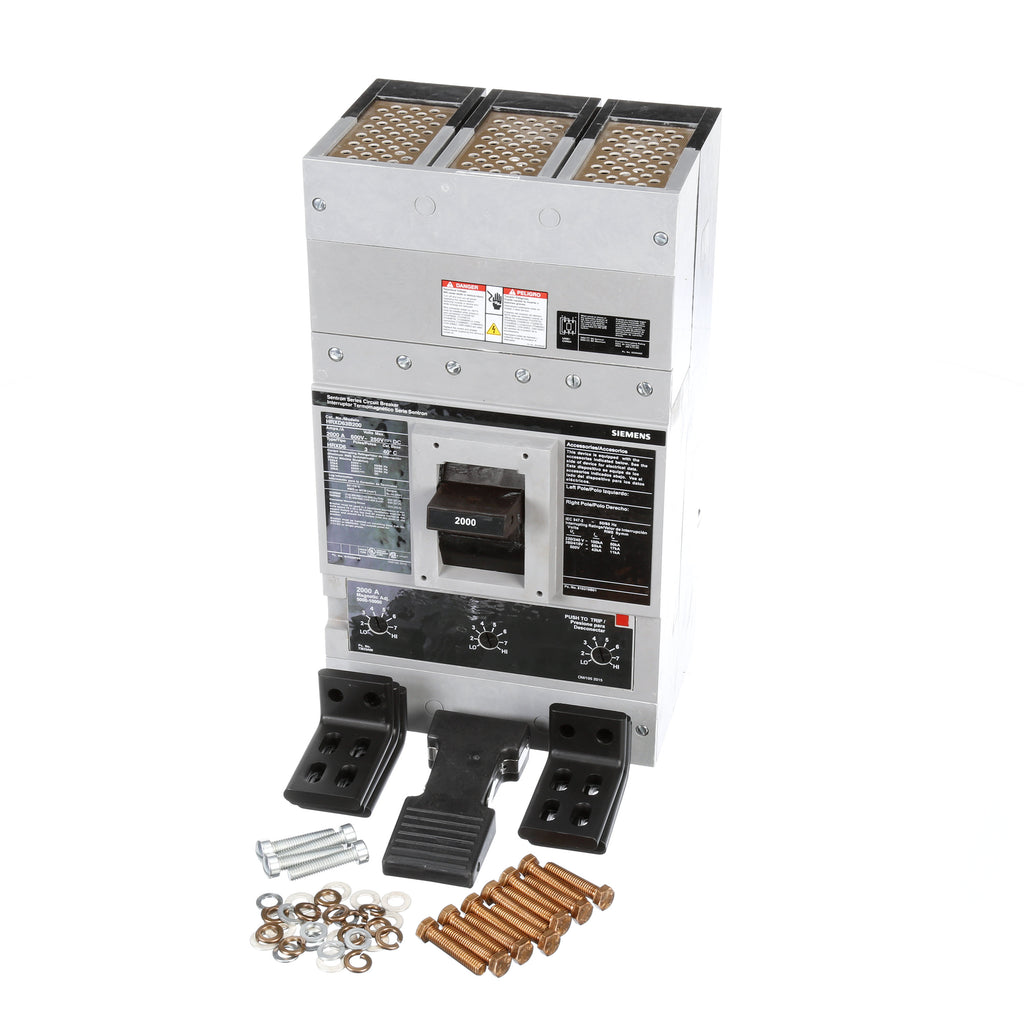

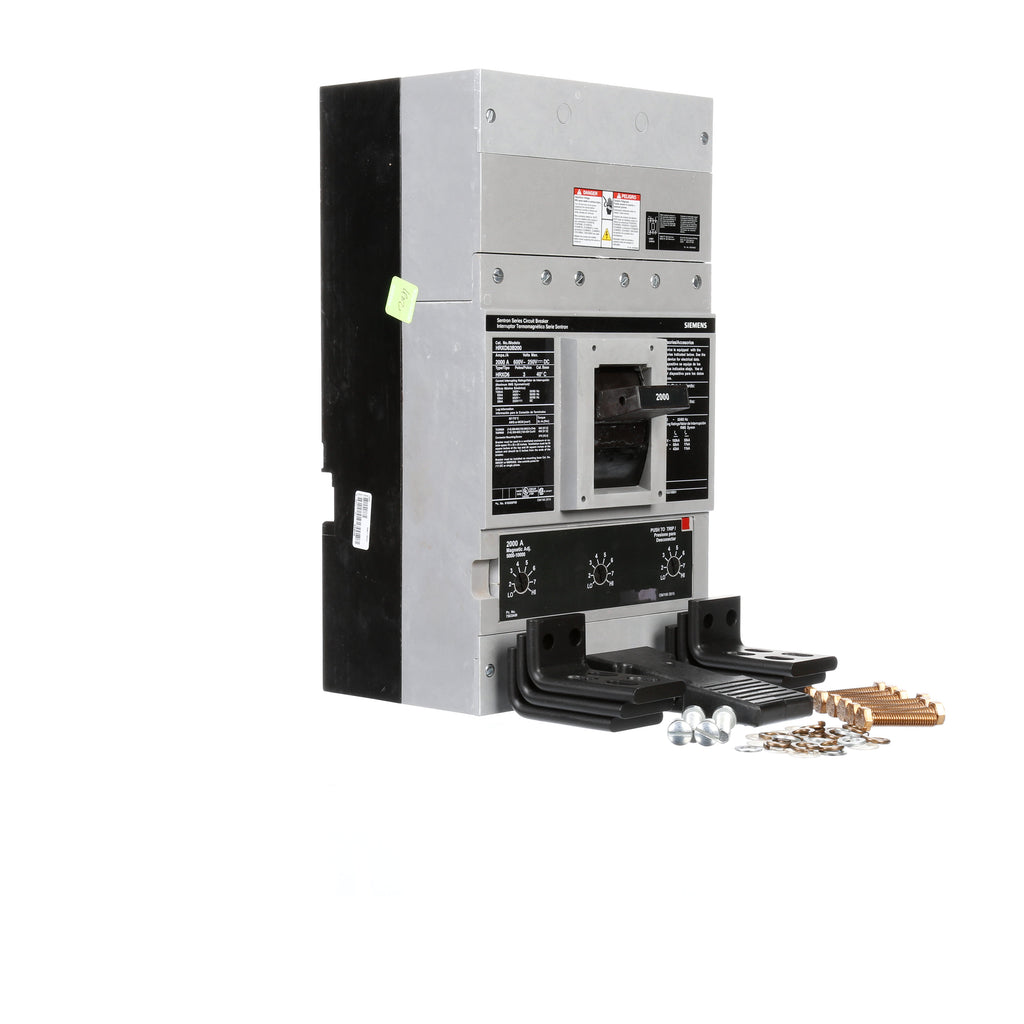

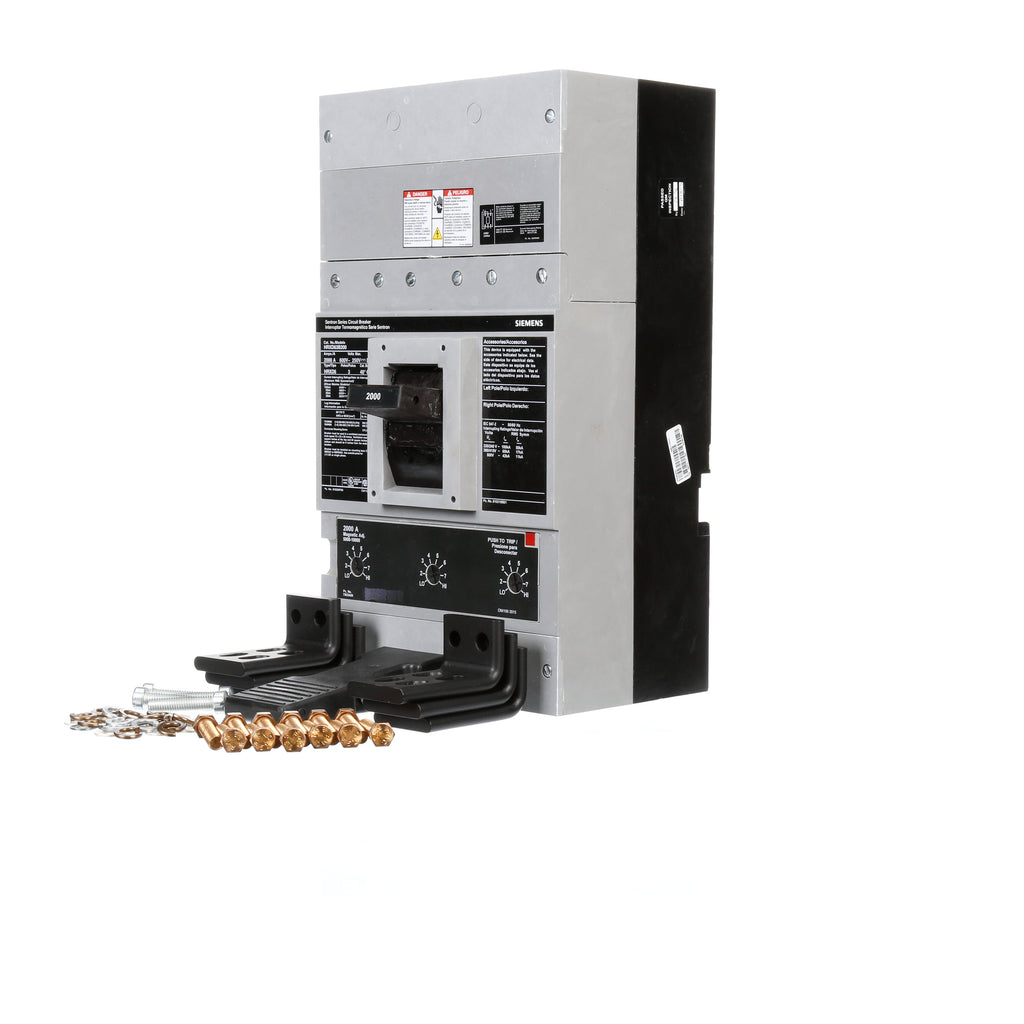

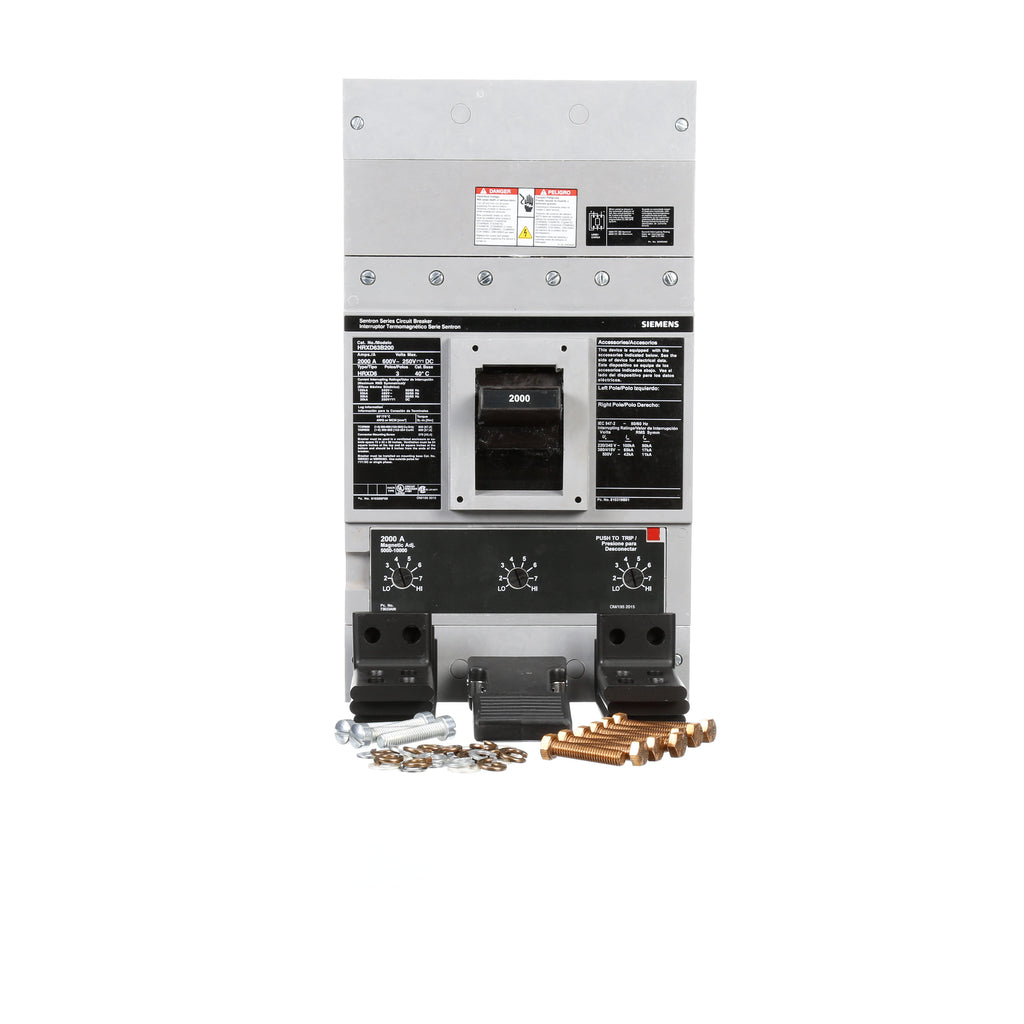

HRXD63B200 is a Siemens Sentron molded case circuit breaker designed for high-capacity power distribution with thermal-magnetic trip protection and exceptional breaking capacity.Technical Overview: This RD frame circuit breaker delivers 2000 amperes at 600VAC with a 3-pole configuration suitable for industrial and commercial applications. The unit features a non-interchangeable trip unit with long-time and instantaneous (LI) functions, assembled to standard 40 degree Celsius specifications. The high breaking capacity rating of 50 kAIC at 600V and 65 kAIC at 480V ensures reliable fault protection in demanding environments.Key Specifications
- Part Number: HRXD63B200
- Manufacturer: Siemens
- Amperage Rating: 2000 A
- Voltage: 600 VAC
- Poles: 3
- Frame Size: RD Frame
- Connection Type: Bolt-On
- Trip Functions: LI (Long-Time and Instantaneous)
- Interrupt Rating: 50 kAIC at 600V, 65 kAIC at 480V
- Trip Unit: Thermal-Magnetic, Non-Interchangeable
- Product Type: Molded Case Circuit Breaker
- Operating Temperature: Standard 40 degrees Celsius
Specifications
- Part Number: HRXD63B200
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HRXD
- Voltage : 600
- Amperage : 2000
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : RD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643247772
- GTIN : 00783643247772
- Country of Origin : Mexico
- Weight : 59.538
