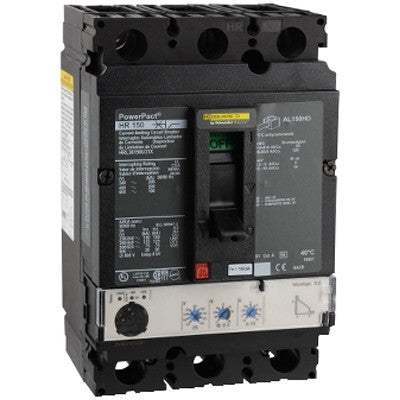

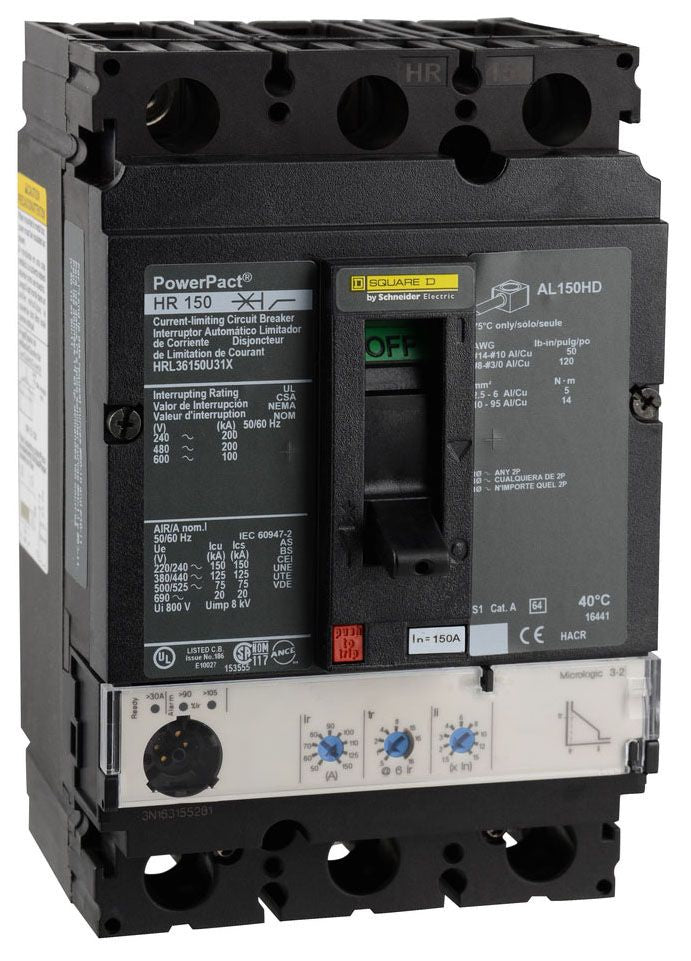

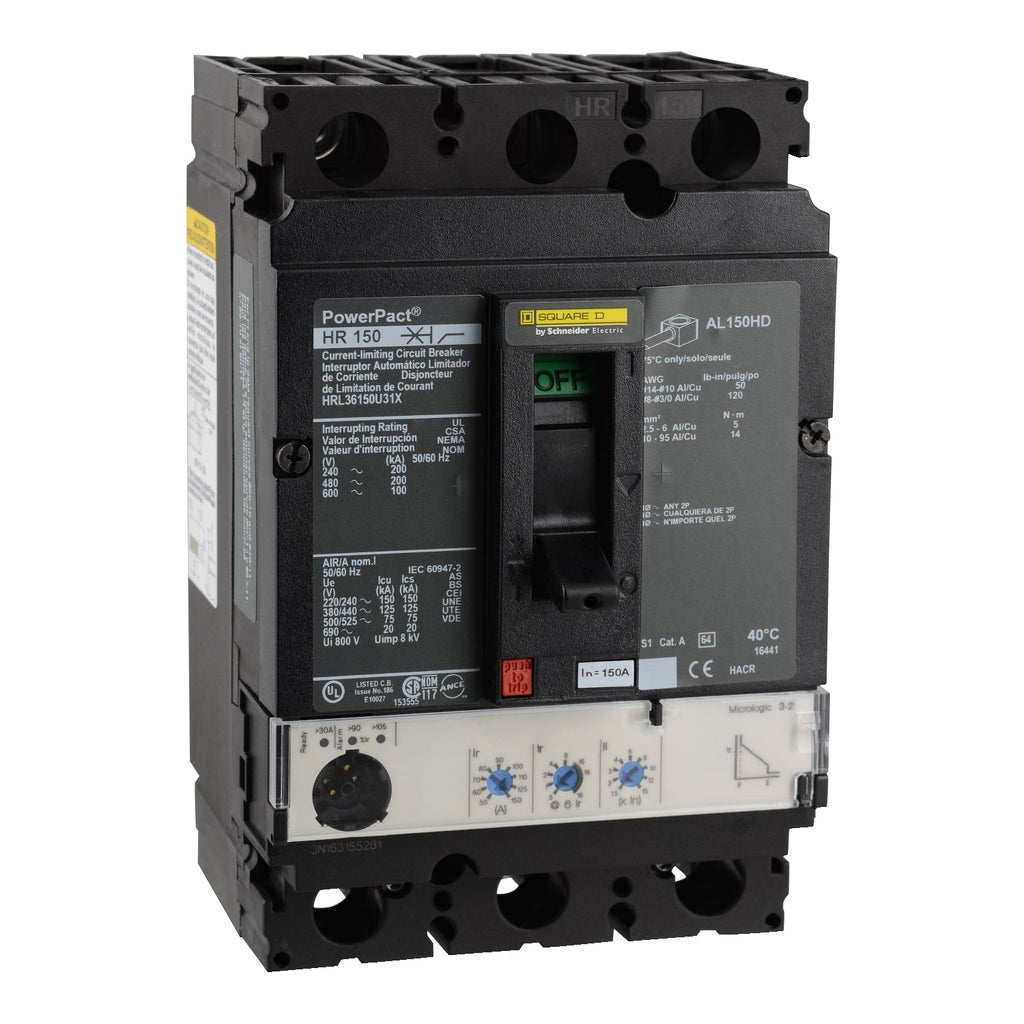

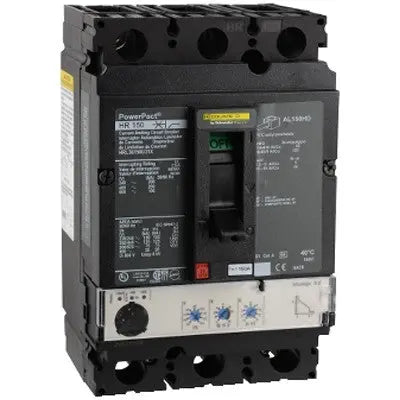

HRL36150U31X - Square D PowerPact H-Frame 150A 600V 3-Pole Molded Case Circuit Breaker

HRL36150U31X

HRL36150U31X is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable protection in commercial and industrial electrical systems. This breaker features electronic trip technology and is built for durability and safety in demanding environments.Engineered for use in panelboard and switchgear applications, the HRL36150U31X offers a 150A current rating, 600V AC voltage rating, and three poles for versatile circuit protection. The breaker is equipped with a Micrologic 3.2 trip unit for precise overload and short circuit protection, and it is current limiting for enhanced system safety. Its compact design allows for efficient panel space utilization.

• 150A rated current
• 600V AC rated voltage
• Three poles
• Electronic trip unit (Micrologic 3.2)
• Current limiting type
• PowerPact H-Frame series
• Panel mount configuration
• Short circuit interrupt rating: 150 kA
• Wire size: 14-3/0 AWG
• Terminal connection: Lug

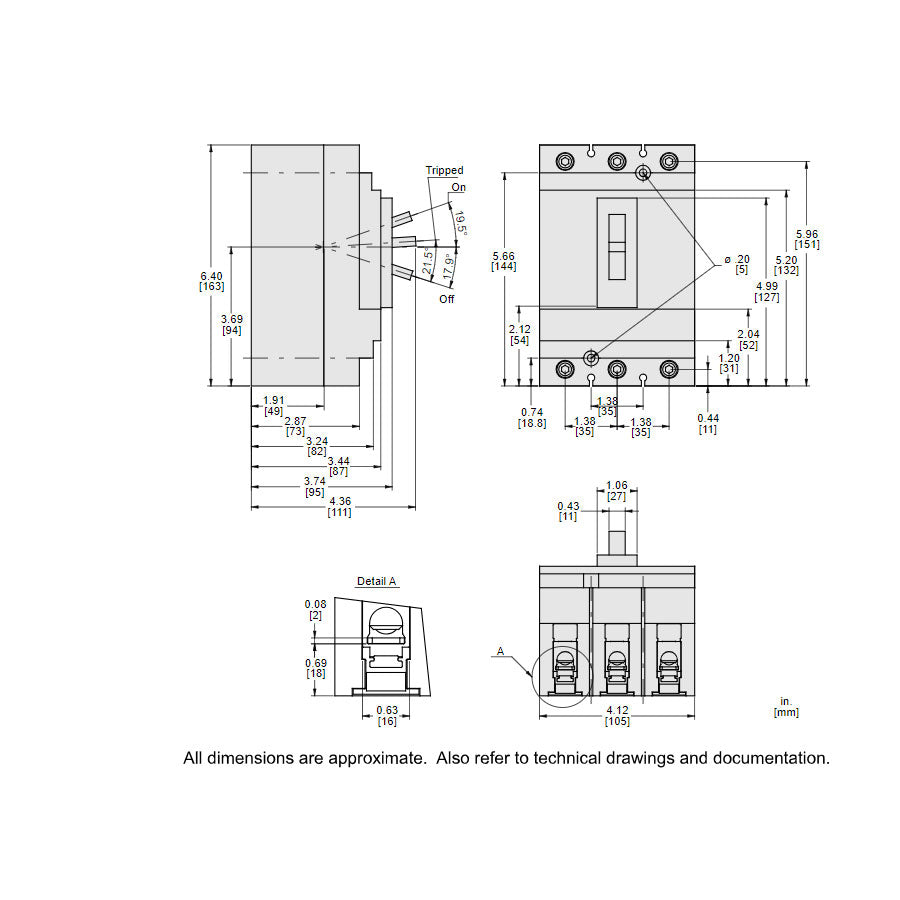

• Dimensions: 6.42" H x 4.09" W x 3.39" D
• Weight: 4.85 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HRL36150U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HRL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 078590194874
• GTIN : 00785901948742
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.376
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
