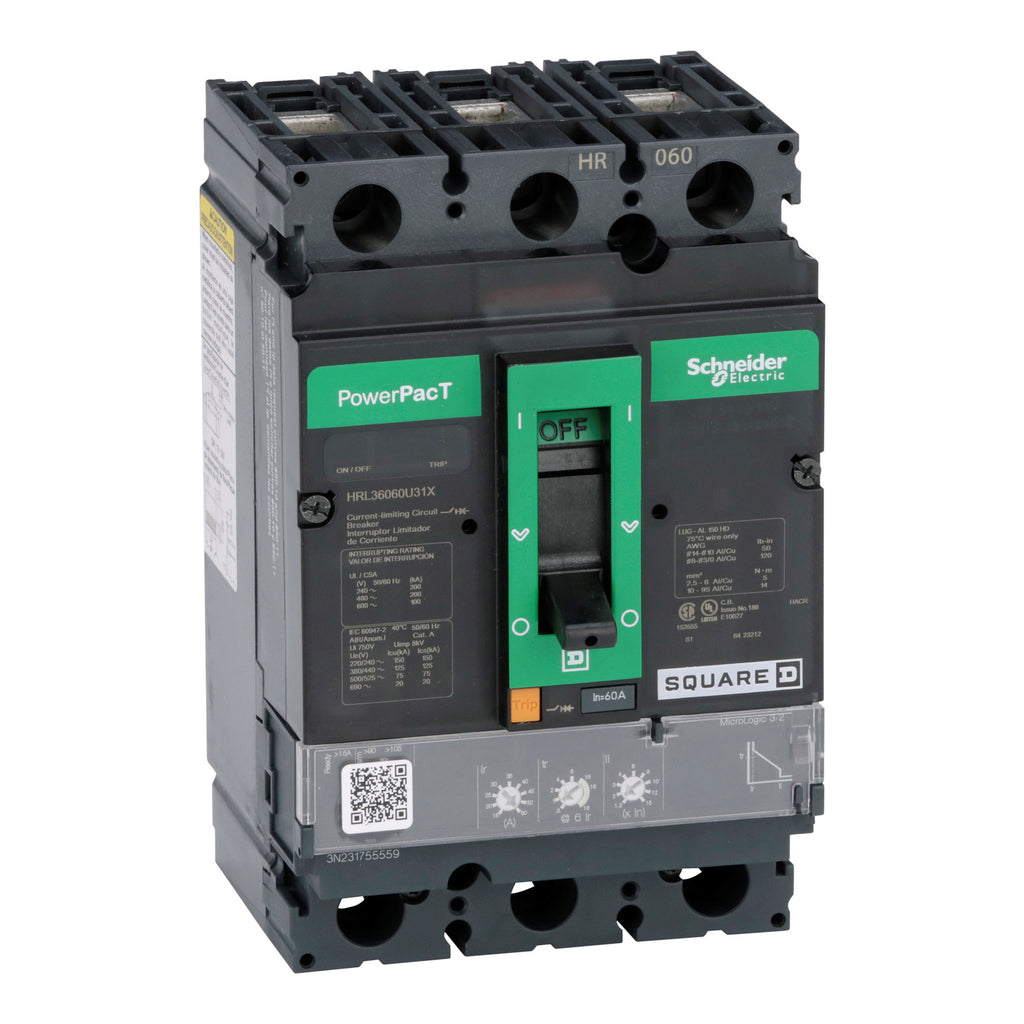

HRL36060U31X - Square D PowerPact H 60A 600VAC 3-Pole Molded Case Circuit Breaker R Frame Electronic Trip

HRL36060U31X

HRL36060U31X is a Square D PowerPact H molded case circuit breaker designed for reliable power distribution protection.This 3-pole circuit breaker features a 60 ampere rating and operates at up to 600 VAC with a high interrupt rating of 100/200 kA. It uses an electronic trip unit within the R frame series, providing precise and flexible protection. The breaker is unit mount type and certified to UL 489, CSA, CE, NEMA, and IEC standards, ensuring compliance and safety in industrial and commercial applications.

• Amperage: 60 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 100/200 kA
• Frame: R
• Trip Unit: Electronic (Micrologic 3.2)
• Mounting Type: Unit Mount
• Frequency: 50/60 Hz
• Certifications: UL 489, CSA, CE, NEMA, IEC
• Dimensions: Approx. 4.36" L x 4.48" W x 9.73" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HRL36060U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901146810
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.376
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
