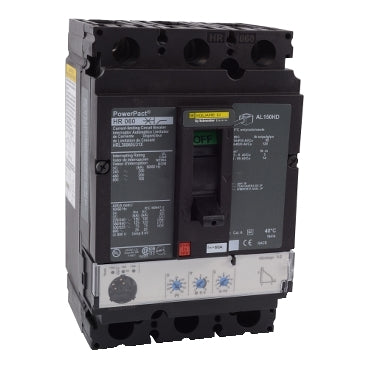

HRL36060CU31X - Square D 60A 600V AC 3-Pole PowerPact H-Frame Circuit Breaker with Micrologic Trip

HRL36060CU31X

HRL36060CU31X is a Square D PowerPact H-frame circuit breaker rated for 60 amps and 600 volts AC with 3 poles and an electronic Micrologic trip unit.This molded case circuit breaker is designed for panel mounting and provides reliable protection for industrial and commercial electrical systems. It features a 3-pole configuration suitable for three-phase power applications and a high interrupt rating of 100 kA at 600 VAC, ensuring safe interruption of fault currents. The breaker includes a Micrologic 3.2 electronic trip unit for precise and adjustable trip settings, enhancing system protection and coordination. It is UL 489 listed, confirming compliance with industry safety standards.

Key Specifications
• Amperage: 60 Amps
• Voltage Rating: 600V AC
• Number of Poles: 3
• Series/Frame: PowerPact H-frame (HRL series)
• Trip Unit: Micrologic 3.2 electronic trip
• Interrupt Rating: 100 kA at 600 VAC
• Mounting Type: Panel Mount
• Certification: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HRL36060CU31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HRL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State



Product Data

• UPC : 060648628300
• GTIN : 03606486283004
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
