HRL36050M72 - Square D 50A 3-Pole 600V PowerPact H Motor Circuit Protector, 100kA Interrupt Rating

HRL36050M72

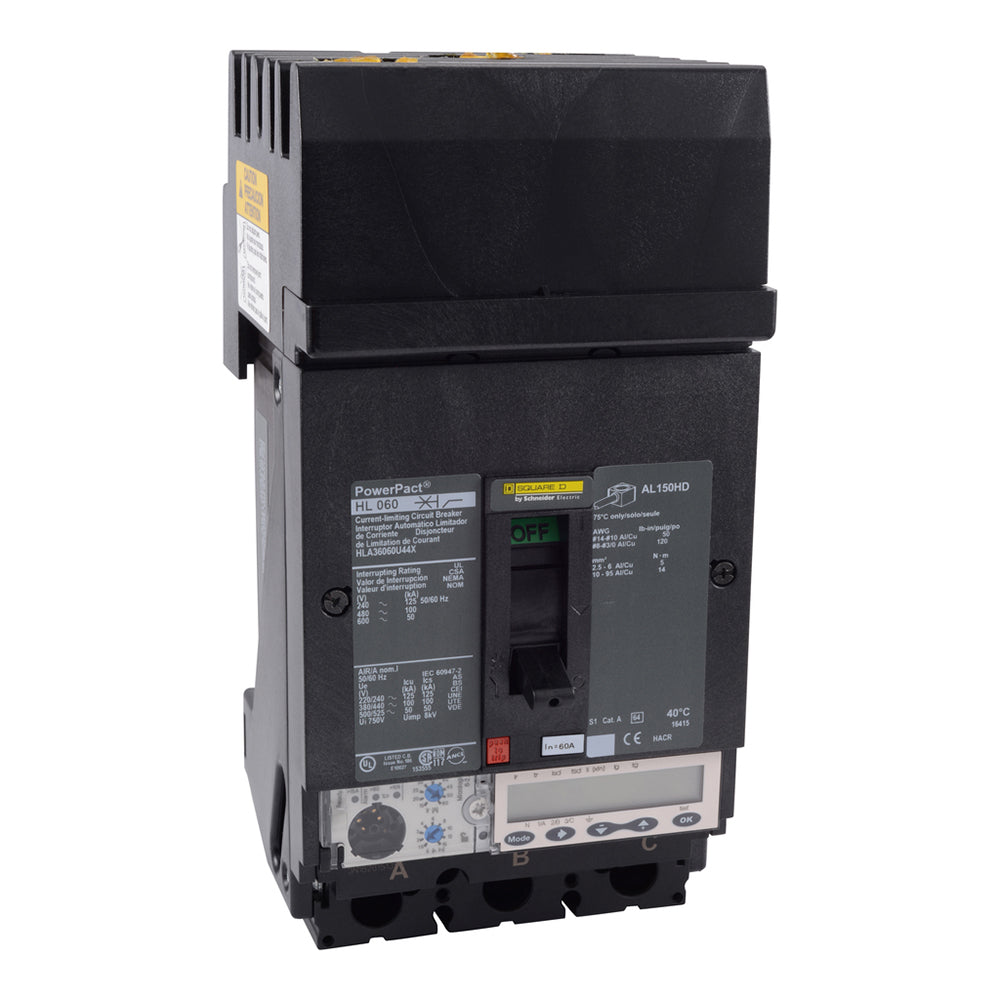

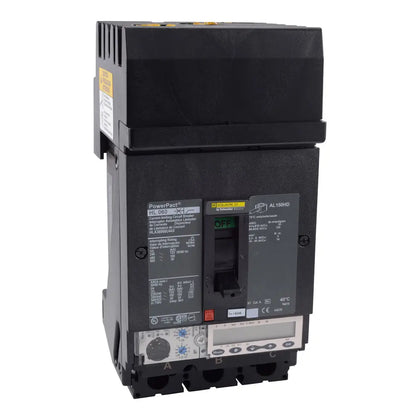

HRL36050M72 is a Square D PowerPact H motor circuit protector rated for 50 amps and 600 volts AC with a 3-pole configuration and a 100kA interrupt rating.

This motor circuit protector features a thermal magnetic trip unit with a trip range of 84 to 546 amps. It is designed for unit mount installation and includes line/load lug connections suitable for 14 to 3/0 AWG aluminum or copper wire. The device is housed in a NEMA AB1 enclosure and built on the H frame series, supporting applications in industrial, commercial, and OEM environments.

• Amperage Rating: 50 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Interrupt Rating: 100 kA
• Frame: H
• Trip Type: Thermal Magnetic
• Trip Range: 84 to 546 A
• Mounting Type: Unit Mount
• Connection Type: Line/Load Lugs
• Wire Size Range: 14 to 3/0 AWG Al/Cu
• Enclosure Type: NEMA AB1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HRL36050M72
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HRL
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Magnetic Only

Product Data

• UPC : 060648628299
• GTIN : 03606486282991
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
