HRA36100U33X - Square D PowerPact H 100A 3-Pole 600V Molded Case Circuit Breaker I-Line Plug-In

SKU: HRA36100U33X-New
Condition: New
Price:
$4,077.17
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

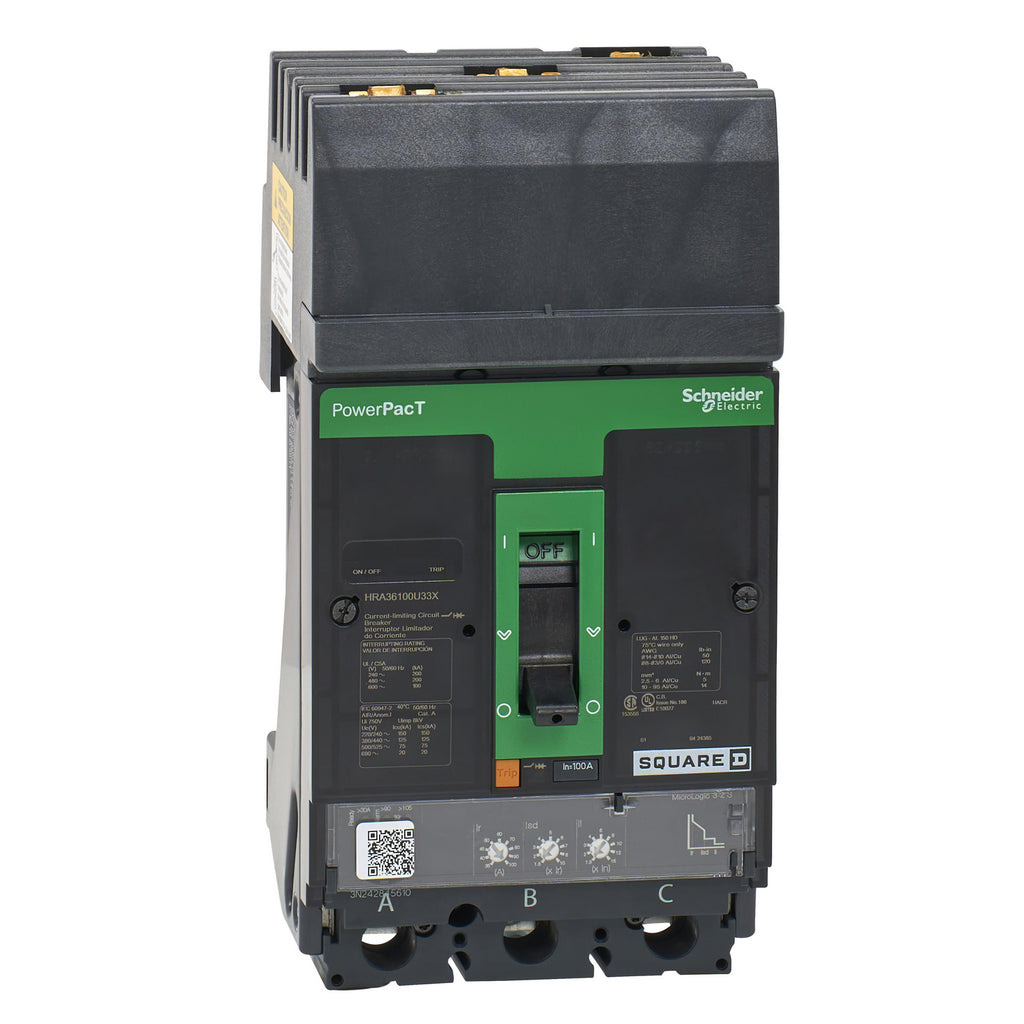

HRA36100U33X - Square D I-Line Style Plug-In 600V 100A 3 pole circuit breaker 200kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HRA36100U33X - Square D I-Line Style Plug-In 600V 100A 3 pole circuit breaker 200kA@480V - Essential Electric Supply

Description

HRA36100U33X


HRA36100U33X is a Square D PowerPact H series molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 3-pole breaker features a 100A current rating, 600V AC voltage rating, and is built with an I-Line style plug-in mounting for easy installation in compatible panels. It offers a high interrupting capacity and is suitable for use in demanding electrical environments. This breaker is part of the PowerPact H series, known for durability and performance. It features a non-interchangeable trip unit and is designed for use in I-Line bus systems. The breaker is rated for 200kA@480V AIC and 100kA@600VAC, ensuring robust protection in high fault current applications. It is UL listed and meets relevant industry standards for safety and reliability.
  • Part Number: HRA36100U33X
  • Manufacturer: Square D
  • Series: PowerPact H
  • Amperage: 100A
  • Voltage: 600V AC
  • Poles: 3
  • Mounting Type: I-Line Style Plug-In
  • Interrupt Rating: 200kA@480V, 100kA@600VAC
  • Trip Unit: Non-Interchangeable
  • Certifications: UL Listed
  • Application: Commercial, Industrial
  • UPC: 606486282222
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HRA36100U33X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HRA
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LSI - Long-Time, Short-Time and Instantaneous
  • Temp Rating : 28-158 °F (-2-70 °C)
  • Protection : Solid State

Product Data

  • UPC : 60648628222
  • GTIN : 03606486282229
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 5
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
