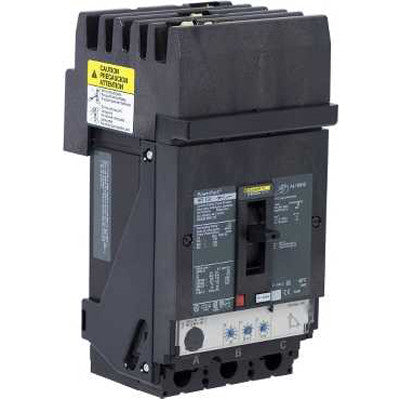

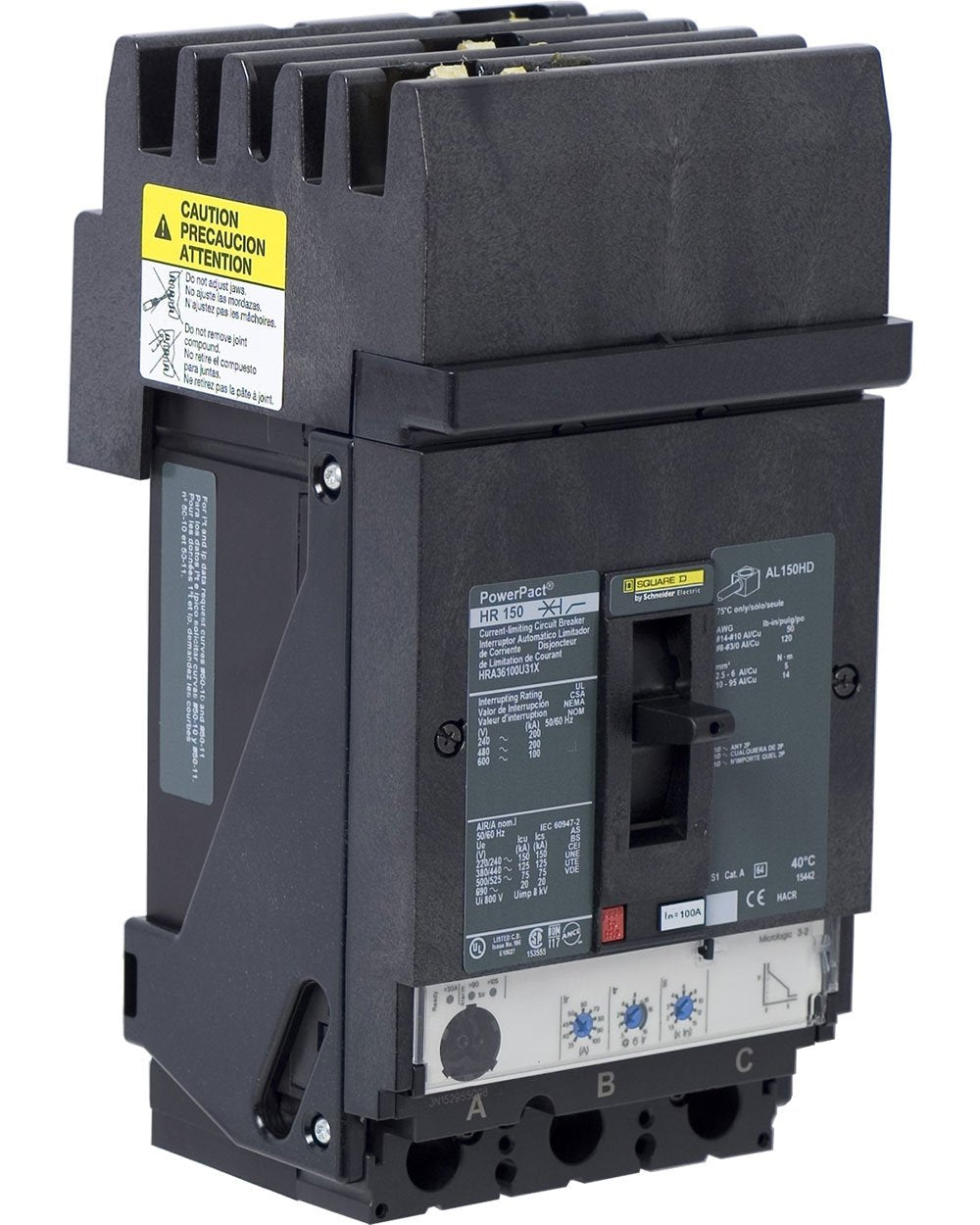

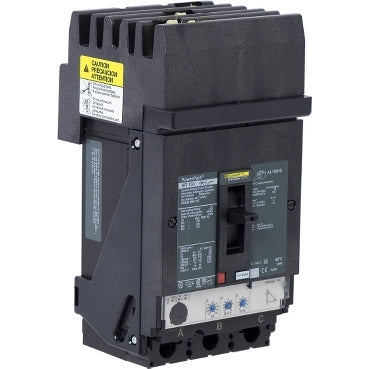

HRA36100U31X - Square D PowerPact H 100A 3 Pole 600V I-Line Circuit Breaker Micrologic 3.2 100kA

HRA36100U31X

HRA36100U31X is a Square D PowerPact H molded case circuit breaker with a 100 amp rating and 3 poles designed for I-Line mounting.This circuit breaker features a Micrologic 3.2 electronic trip unit, an interrupt rating of 100kA at 600V AC, and is rated for 80% continuous current. It is UL 489 listed and certified to CSA, IEC, CCC, CE, NEMA, and other international standards. The breaker is suitable for three-phase ABC power systems and provides reliable overload and short circuit protection.

Key Specifications
• Amperage: 100 Amp
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 100kA at 600V AC
• Frame Type: H Frame
• Trip Unit: Micrologic 3.2 Electronic
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, IEC, CCC, CE, NEMA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HRA36100U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HRA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC



Product Data

• UPC : 785901710493
• GTIN : 00785901710493
• Country of Origin : Mexico

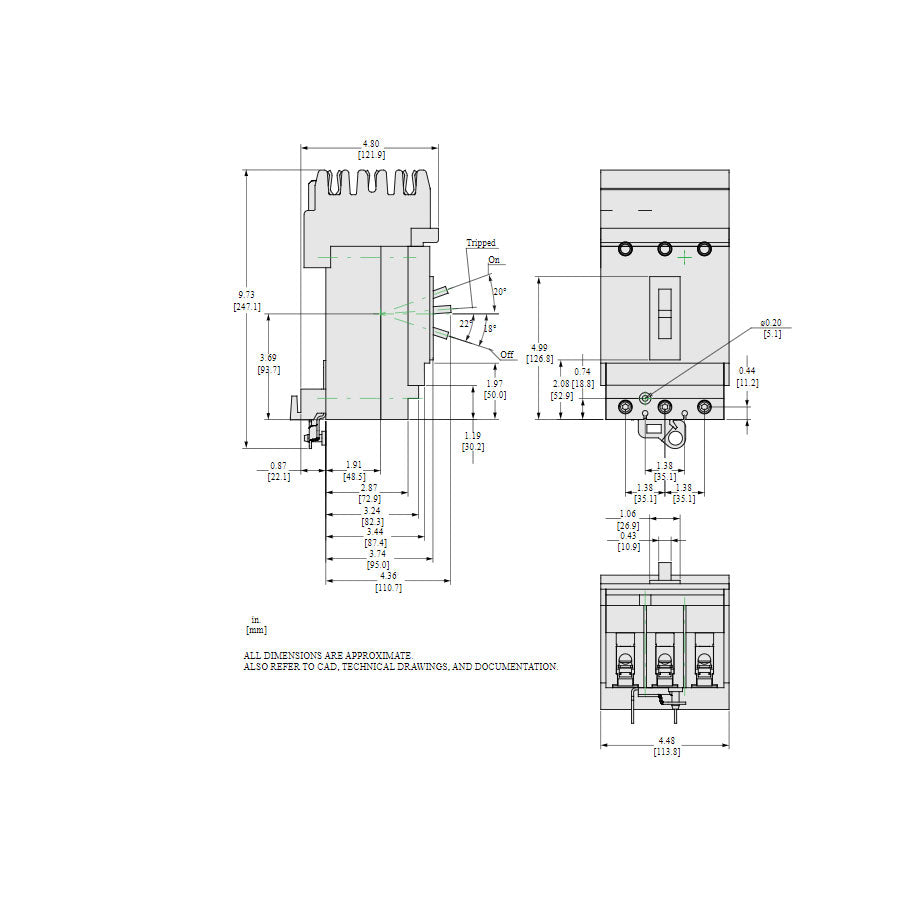

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.78 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
