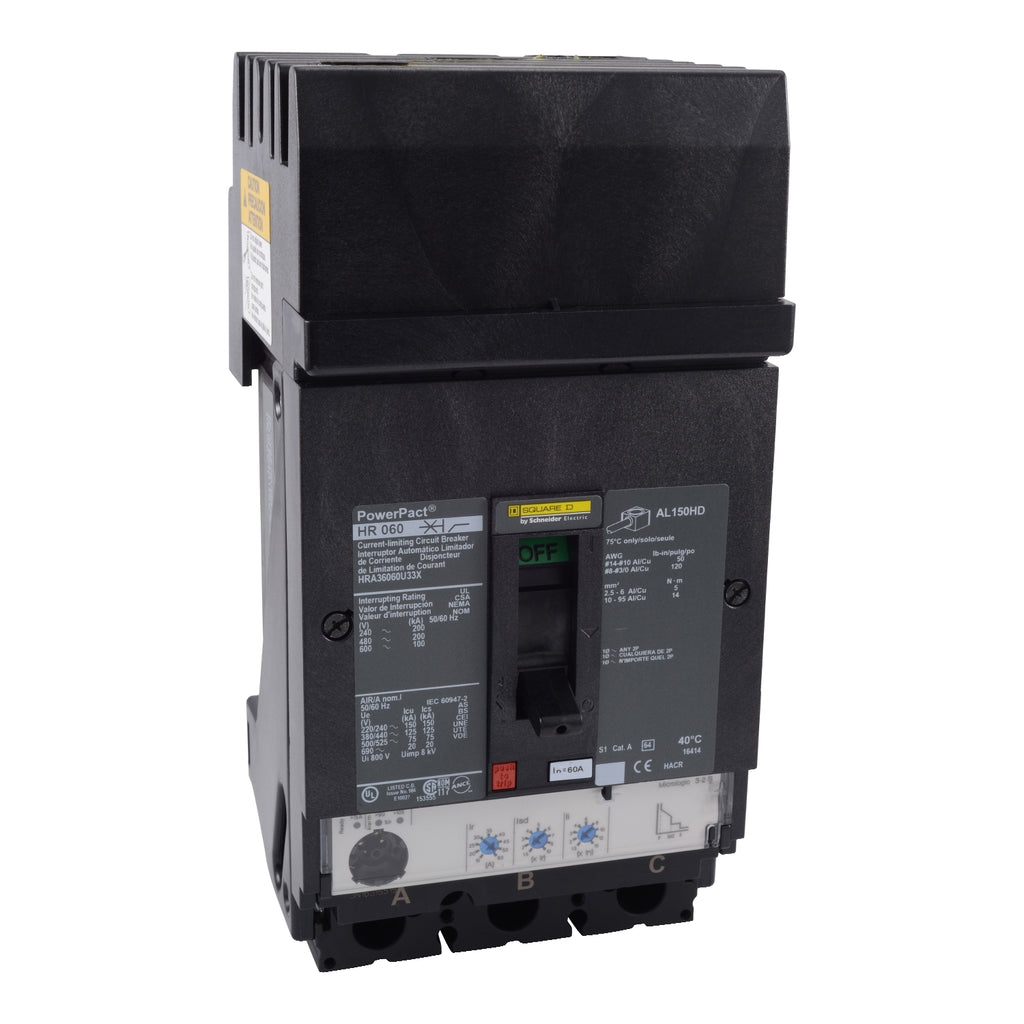

HRA36060U33X - Square D 60A 600V 3-Pole PowerPact H-Frame Circuit Breaker I-Line Plug-In

HRA36060U33X

HRA36060U33X is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable electrical system protection.This 3-pole circuit breaker features a 60 ampere rating and 600 volt AC capacity, suitable for three-phase power applications. It uses an I-Line style plug-in mounting and includes a Micrologic 3.2S electronic trip unit with an interrupt rating of 100kA. The breaker is rated for 80% rated current and complies with industry certifications for safety and performance.

• Manufacturer: Square D
• Part Number: HRA36060U33X
• Amperage: 60A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 100kA
• Series/Frame: PowerPact H-Frame
• Trip Unit: Micrologic 3.2S Electronic
• Rated Current: 80%
• Phase: 3
• Certifications: Industry Standard Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HRA36060U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HRA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 606486282208
• GTIN : 03606490000000
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
