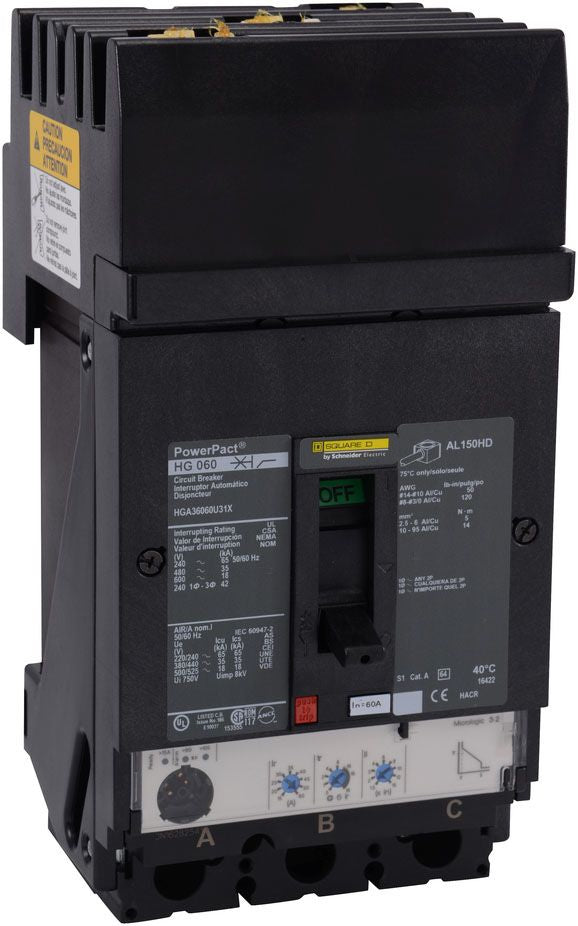

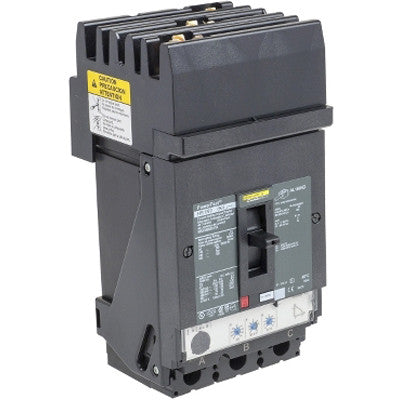

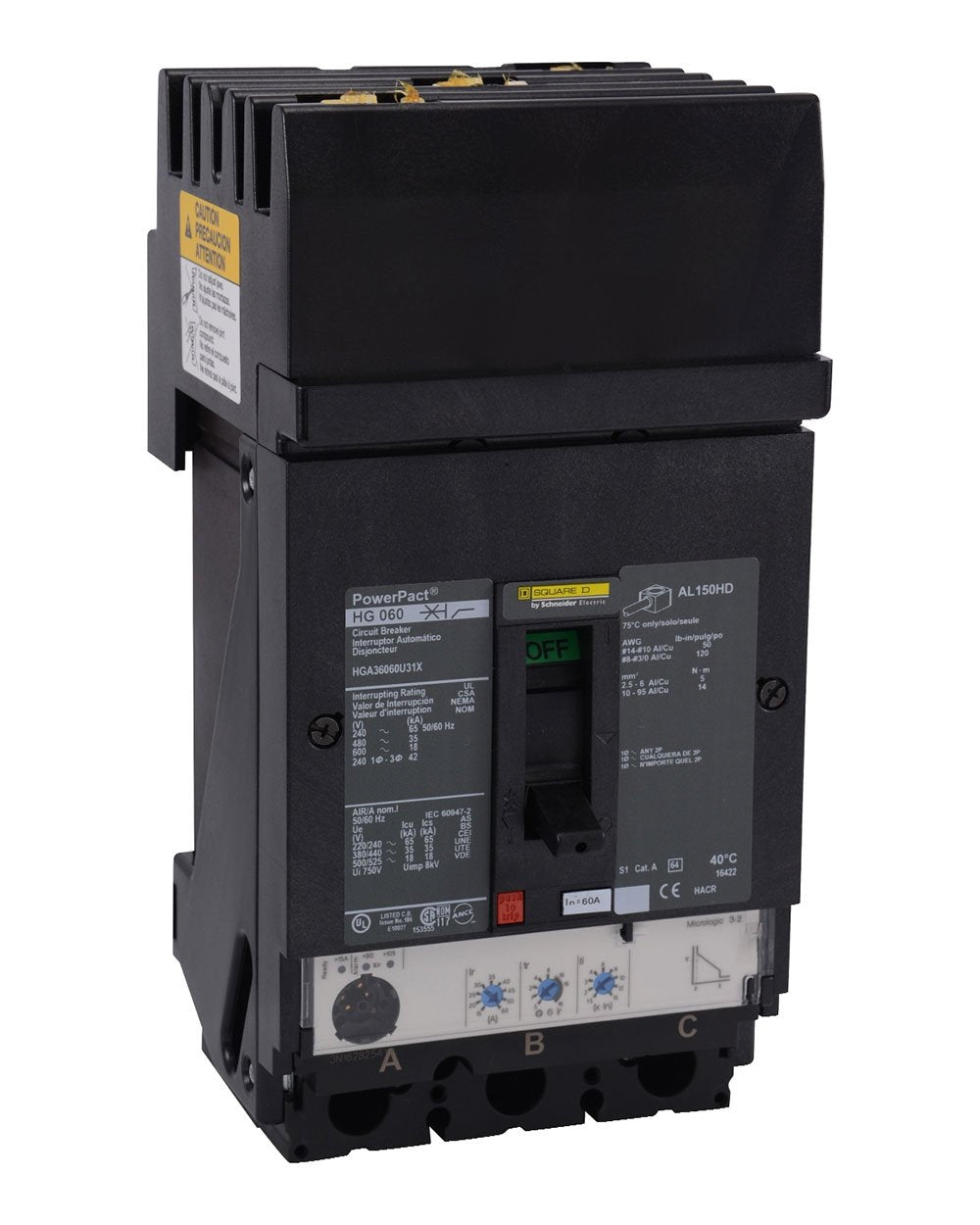

HRA36060U31X - Square D PowerPact H 60A 600V 3 Pole Molded Case Circuit Breaker, I-Line, Electronic Trip, 200/100 kA

HRA36060U31X

HRA36060U31X is a Square D PowerPact H series molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 3-pole breaker features an electronic trip unit with Micrologic 3.2 technology, providing long-time and instantaneous protection for circuits up to 600V AC. It is rated for 60A continuous current and offers an interrupt rating of 200 kA at 240/480V AC and 100 kA at 600V AC. The unit is designed for I-Line plug-in mounting and includes load lugs for secure connections. Engineered for durability and safety, the HRA36060U31X is suitable for use in a wide range of applications requiring high interrupt capacity and precise trip characteristics. It is certified to UL, CSA, IEC, CCC, and CE standards, ensuring compliance with international safety requirements. The breaker is constructed with a robust molded case for added protection and is suitable for surface mounting in panelboards or switchgear.

• Part Number: HRA36060U31X
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage Rating: 60A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 200 kA (240/480V AC), 100 kA (600V AC)
• Frame Size: R
• Wire Size: 14 to 3/0 AWG
• Temperature Rating: 104°F
• Approvals: UL, CSA, IEC, CCC, CE
• Country of Origin: MX, US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HRA36060U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HRA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901943778
• GTIN : 00785901943778
• Country of Origin : Mexico

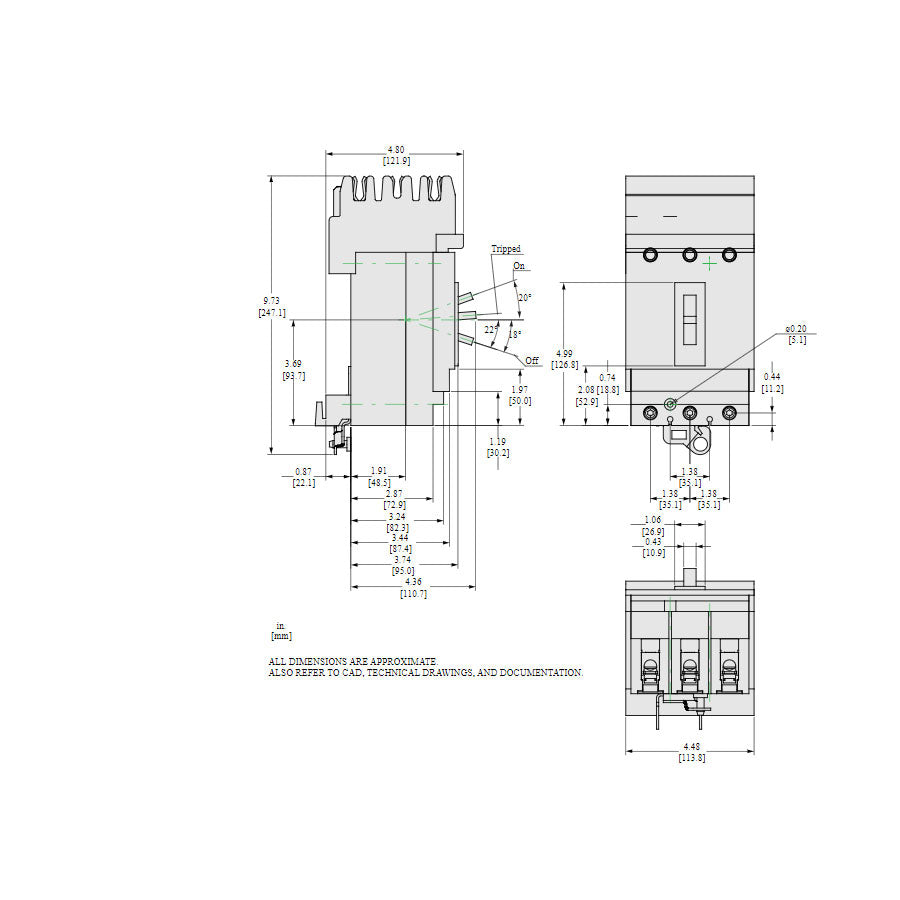

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.75
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
