Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

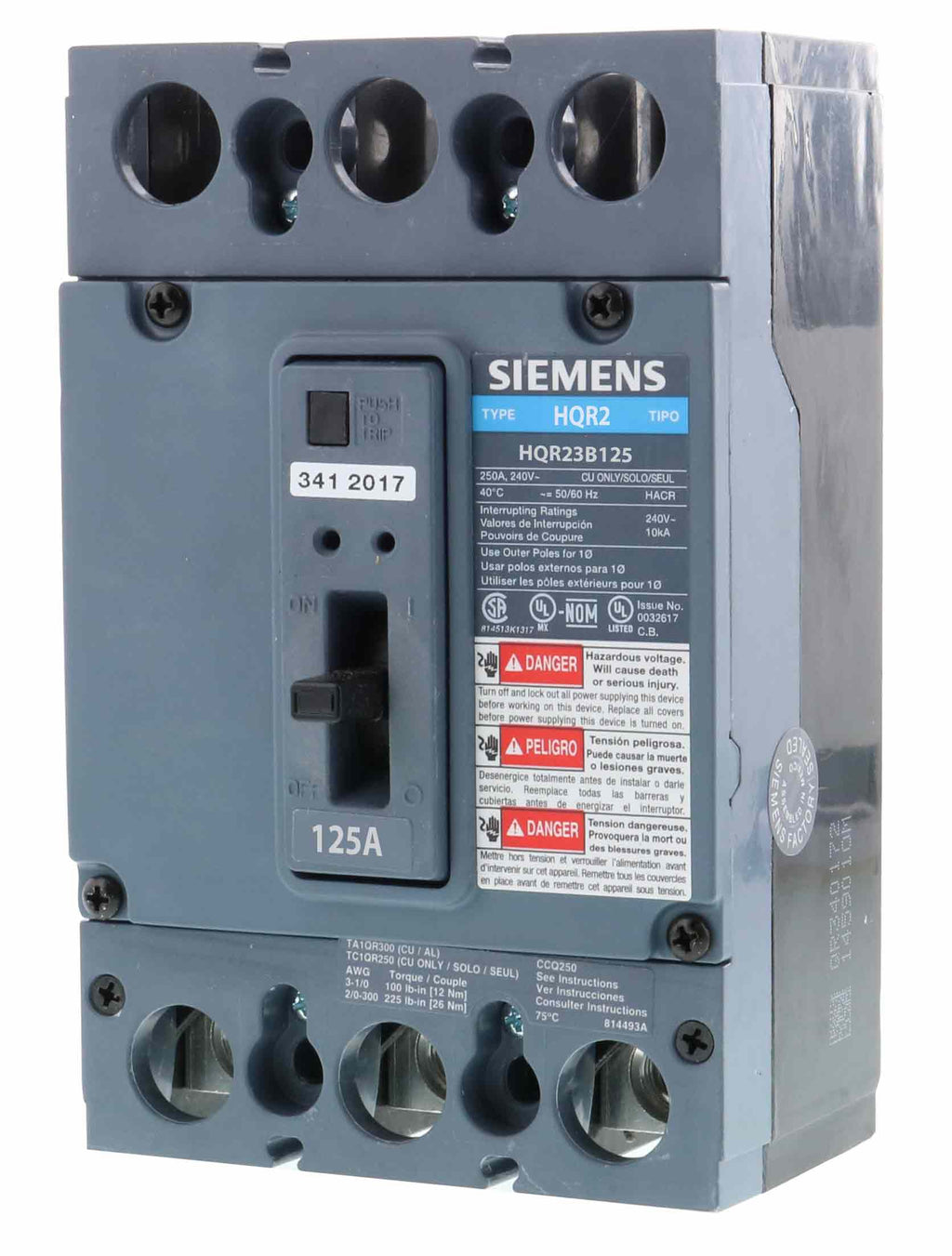

HQR23B125L
HQR23B125L is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 125 amps and 240 volts, designed for reliable power distribution protection.This Siemens circuit breaker features a QR frame with a standard 40°C rating, a 65kA interrupting capacity at 240V, and line/load lugs installed for easy feed-thru mounting. It includes a non-interchangeable thermal magnetic trip unit for dependable overload and short circuit protection.
- Amperage: 125A
- Voltage: 240V AC
- Poles: 3
- Interrupt Rating: 65kA at 240V
- Frame Type: QR Series (Standard 40°C)
- Trip Unit: Thermal Magnetic
- Mounting Type: Feed-Thru with Line/Load Lugs Installed
- Certifications: UL Listed
Specifications
- Part Number: HQR23B125L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : HQR2
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136986
- GTIN : 00804766136986
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 4.519
- Wire Size : 6AWS - 1/0 AWS (AL/CU)
