2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HQR22B200H

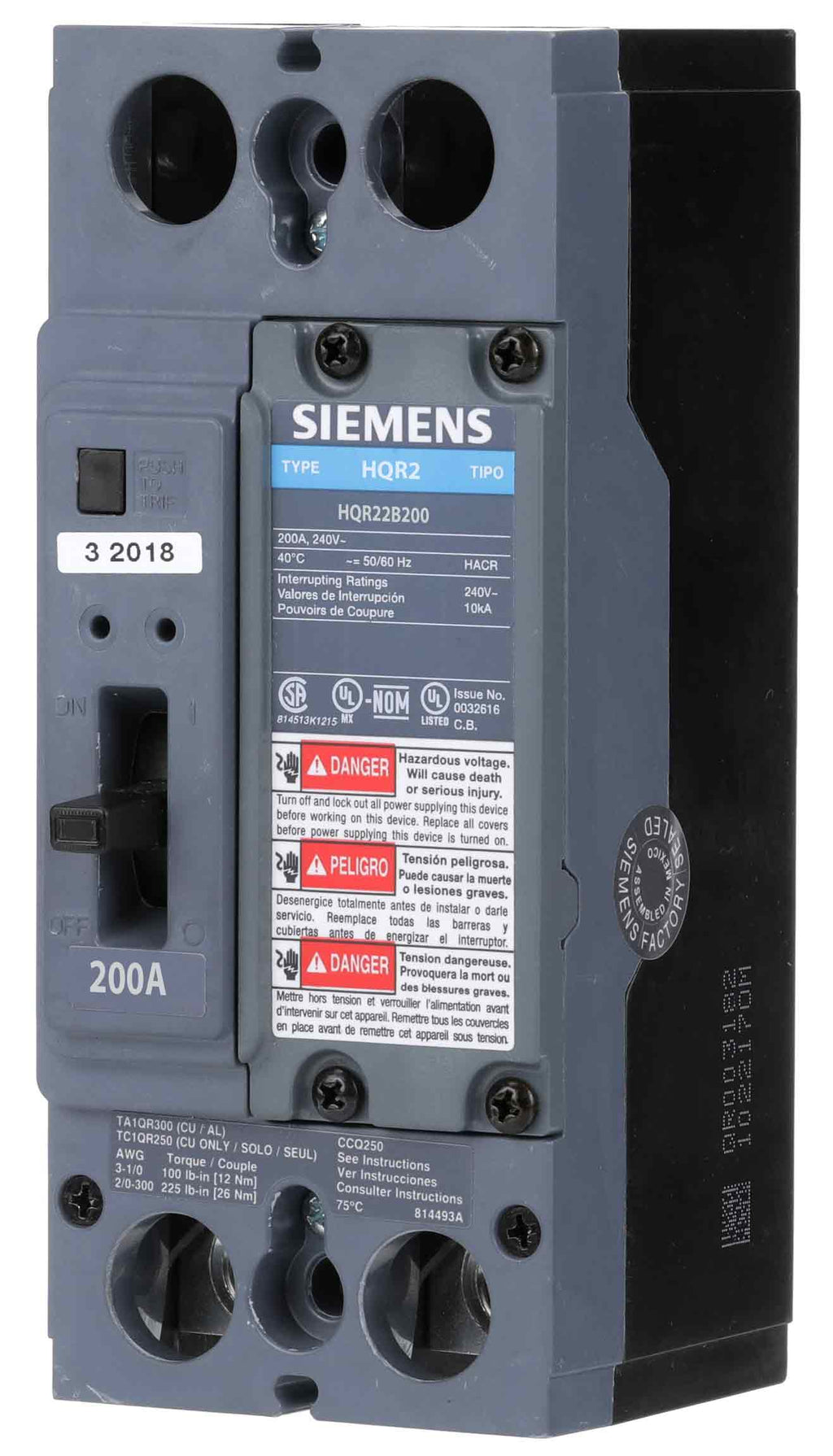

HQR22B200H is a Siemens 2 pole, 200 amp, 240 Volt thermal magnetic molded case circuit breaker with bolt-on mounting.HQR22B200H features a 100kA interrupting rating at 240V, long time and instantaneous trip functions, and load side lug terminals. It is part of the Siemens QR series with an HQR frame type, designed for 1 phase AC applications.
- Manufacturer: Siemens
- Amperage: 200A
- Voltage: 240VAC
- Poles: 2
- Interrupting Rating: 100kAIC @ 240V
- Frame Type: HQR (QR Series)
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Phase: Single Phase
- Terminal Connection: Load side lug
- Non-Interchangeable Trip
- Certifications: UL Listed (implied by Siemens standard product)
Specifications
- Part Number: HQR22B200H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : HQR2H
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136504
- GTIN : 00804766136504
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 3.197
