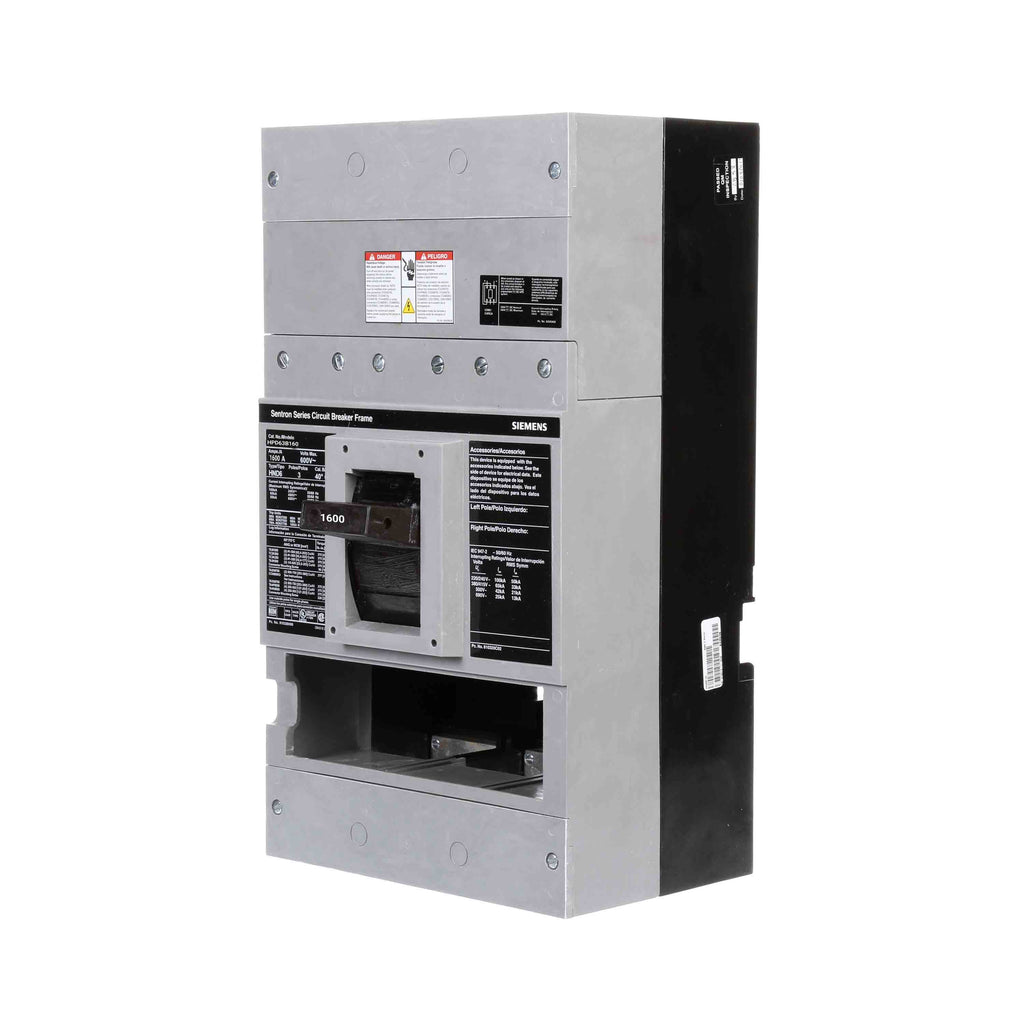

HPD63B160 - Siemens 1600A 600V 3-Pole Molded Case Circuit Breaker PD Frame

HPD63B160

HPD63B160 is a Siemens 3-pole molded case circuit breaker with a 1600 ampere rating and 600 volt AC capacity designed for industrial power distribution. This PD frame breaker features a thermal magnetic trip unit and is suitable for surface mounting in a NEMA Type 1 enclosure. It offers a high interrupt rating of 50kA at 600V and 65kA at 480V, meeting UL 489 and IEC 60947-2 standards for safety and performance. The trip unit is interchangeable, allowing flexible protection options.

Key Specifications
• Amperage: 1600 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: PD Frame
• Interrupt Rating: 50kA at 600V, 65kA at 480V
• Trip Unit: Thermal Magnetic, Interchangeable
• Mounting Type: Surface Mount, NEMA Type 1 Enclosure
• Standards: UL 489, IEC 60947-2
• Operating Temperature: Standard 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HPD63B160
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HPD
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : PD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643008892
• GTIN : 00783643008892
• Country of Origin : Mexico
• Weight : 0.022
• Wire Size : 300 to 600KCM, Cu/Al
