HOMT230250 - Schneider Electric Homeline Quad Tandem Miniature Circuit Breaker 30/50A 120/240V 2 Pole 10kA Plug-In

HOMT230250

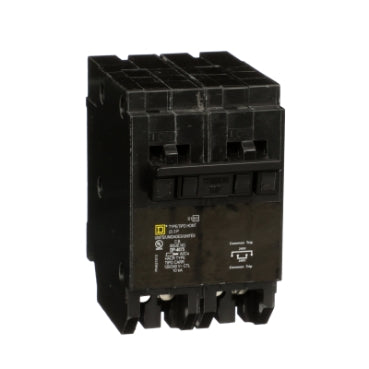

HOMT230250 is a Schneider Electric Homeline quad tandem miniature circuit breaker designed for reliable circuit protection in residential and light commercial applications.This breaker combines one 2-pole 30A and one 2-pole 50A thermal magnetic breaker in tandem, rated for 120/240 VAC with a 10 kA interrupt rating. It features plug-in mounting compatible with Homeline load centers and is HACR rated for HVAC applications. The breaker accepts copper or aluminum wire sizes from 14 AWG to 8 AWG for 30A and 14 AWG to 6 AWG for 50A circuits. It is UL listed and engineered for fast installation and superior protection.

Key Specifications
• Amperage: 30A and 50A (two tandem 2-pole breakers)
• Voltage Rating: 120/240 VAC
• Poles: 2 poles per breaker (quad tandem total)
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA
• Series/Frame: Homeline
• Trip Unit: Thermal magnetic
• Certifications: UL Listed, HACR rated
• Wire Size: 14 AWG to 8 AWG (30A), 14 AWG to 6 AWG (50A)
• Number of Spaces: 2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT230250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901970484
• GTIN : 00785901970484
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.29 in (83.57 mm) (Height x Width x Depth)
• Weight : 1
• Certification : UL
• Wire Size : AWG 14 to AWG 8, AWG 14 to AWG 6, Aluminum/Copper
