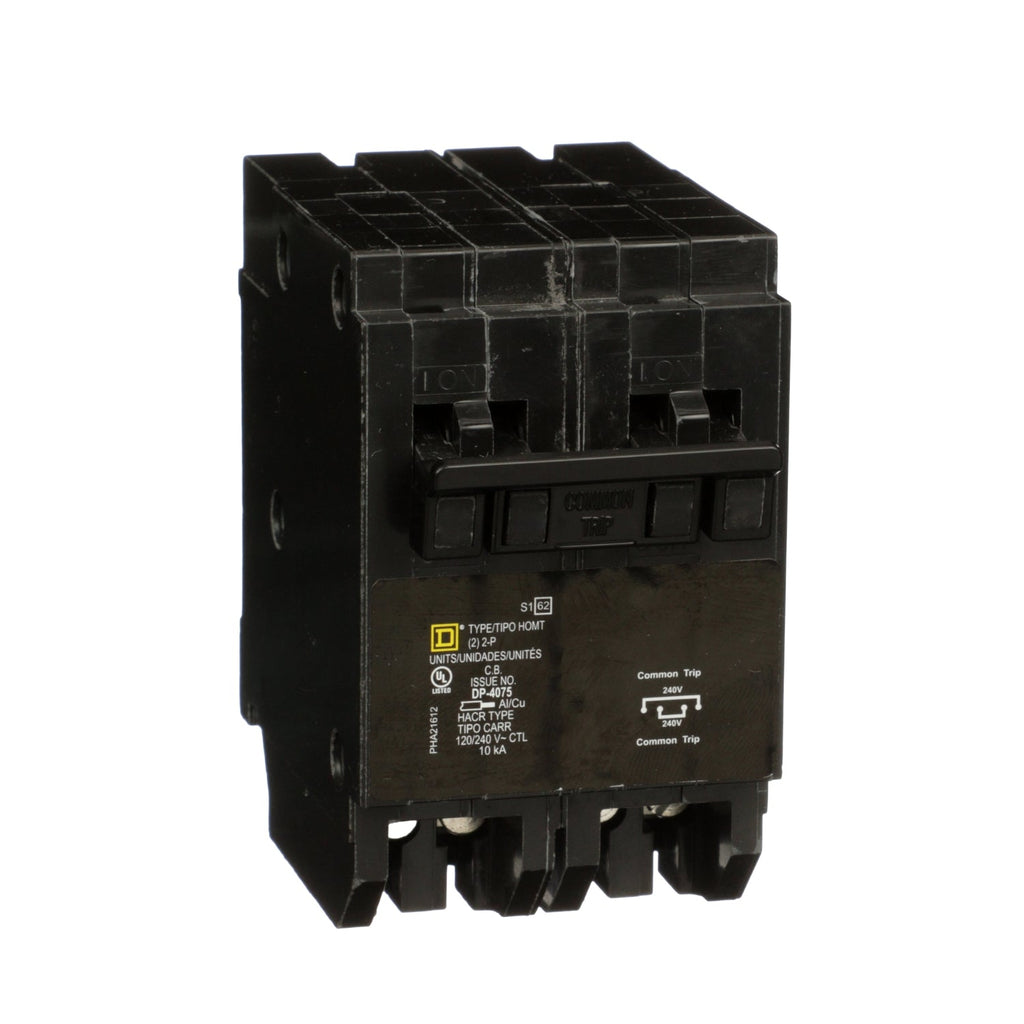

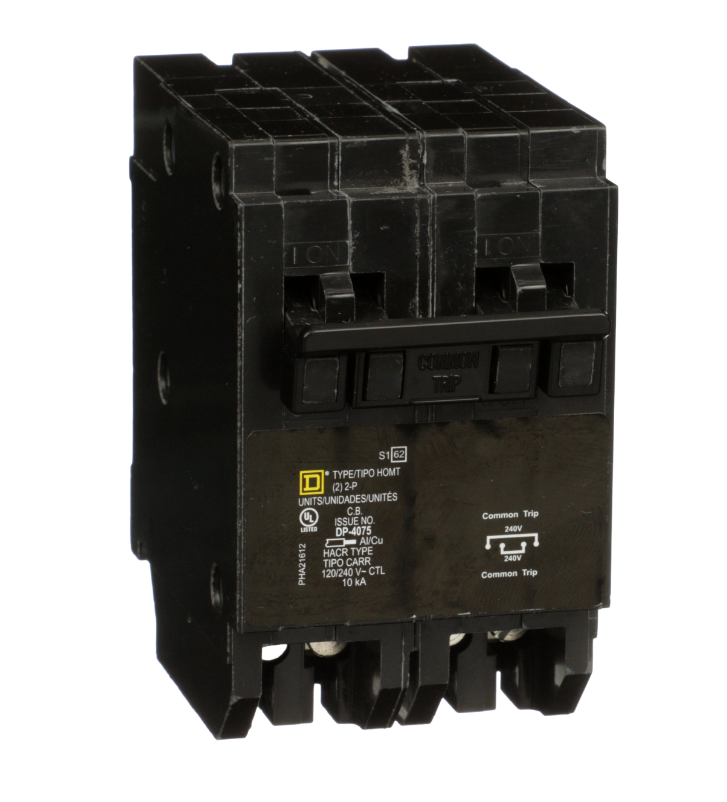

HOMT230230 - Schneider Electric Homeline Quad Tandem Circuit Breaker 2x2 Pole 30A 120/240V 10kA Plug-In

HOMT230230

HOMT230230 is a Schneider Electric Homeline quad tandem circuit breaker designed for reliable circuit protection in residential and commercial applications.This breaker features two tandem 2-pole thermal magnetic breakers combined into one unit, providing 30 amps per breaker at 120/240 volts AC with a 10 kA interrupt rating. It is HACR rated, UL listed, and designed for plug-in mounting in Homeline load centers. The breaker accepts 14 to 8 AWG copper or aluminum wire and occupies two Homeline pole spaces.

Key Specifications
• Manufacturer: Schneider Electric
• Series: Homeline
• Type: Quad Tandem Miniature Circuit Breaker
• Poles: 2 x 2 Pole (Quad Tandem)
• Amperage: 30 A per 2-pole breaker
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Wire Size: 14-8 AWG Copper/Aluminum
• Certifications: UL Listed, HACR Rated
• Dimensions: 1.97 in W x 3.23 in D x 3.13 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HOMT230230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901970453
• GTIN : 00785901970453
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 1 lb
• Certification : UL
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
