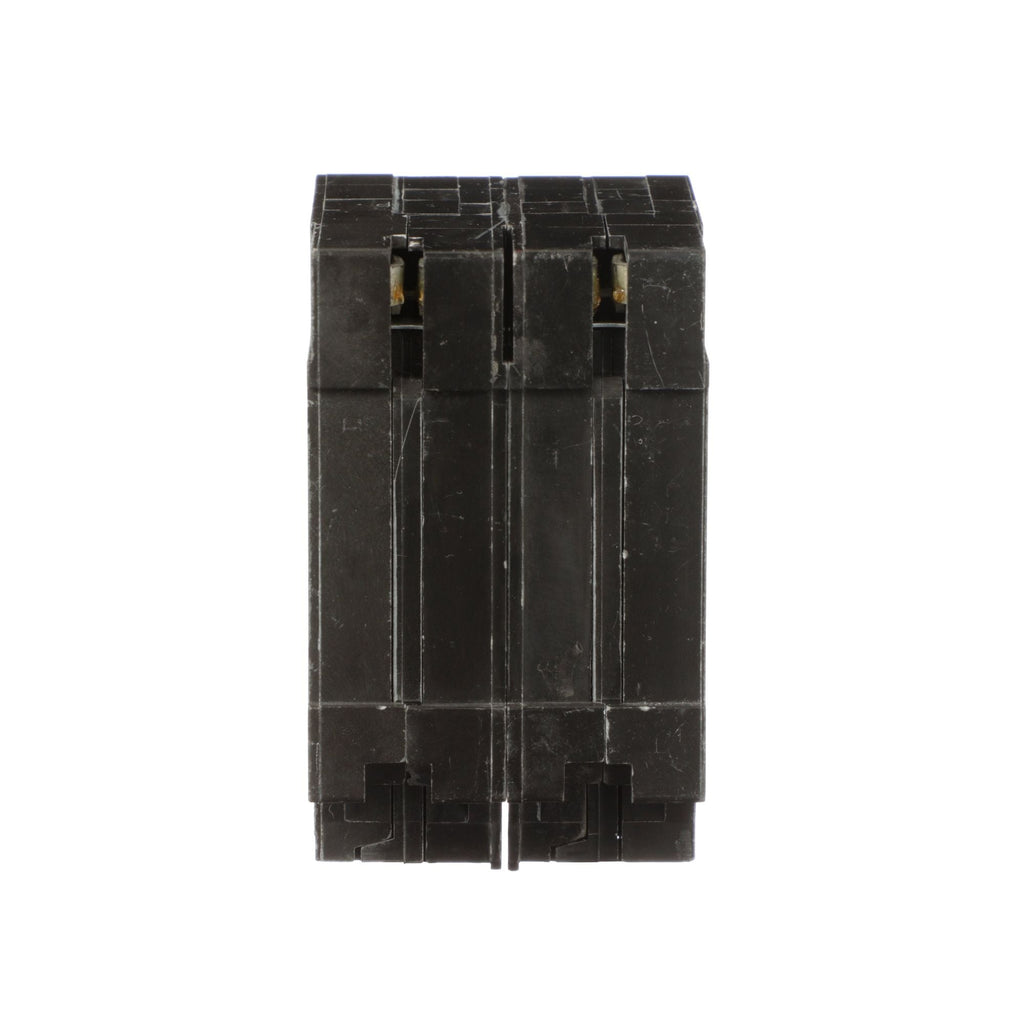

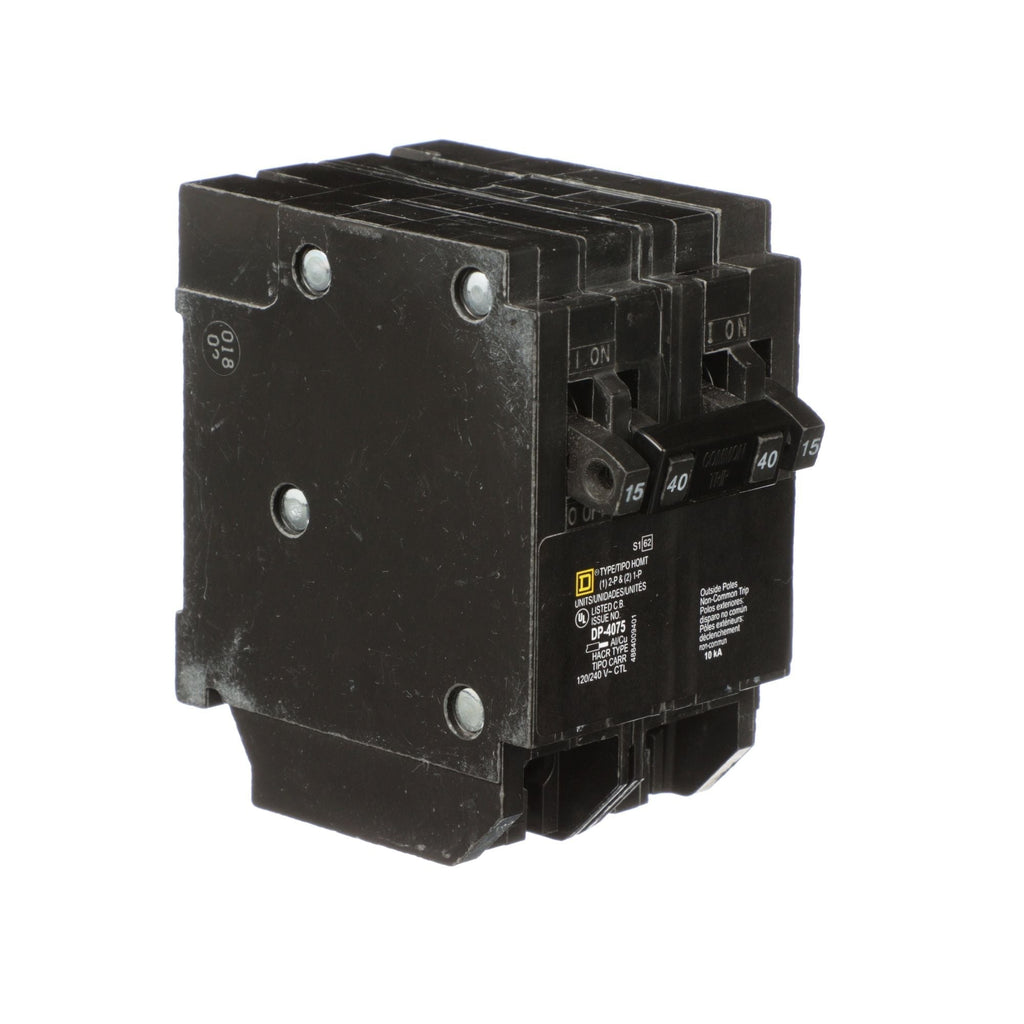

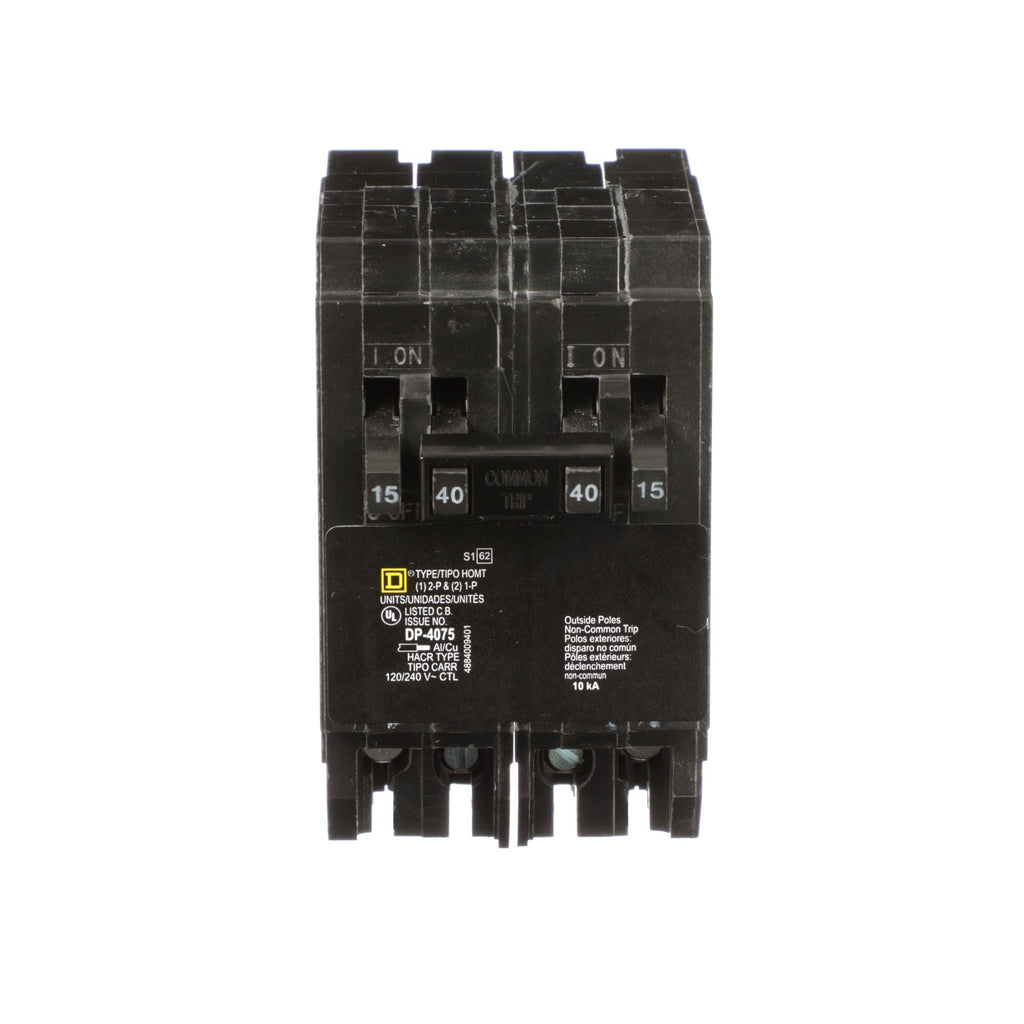

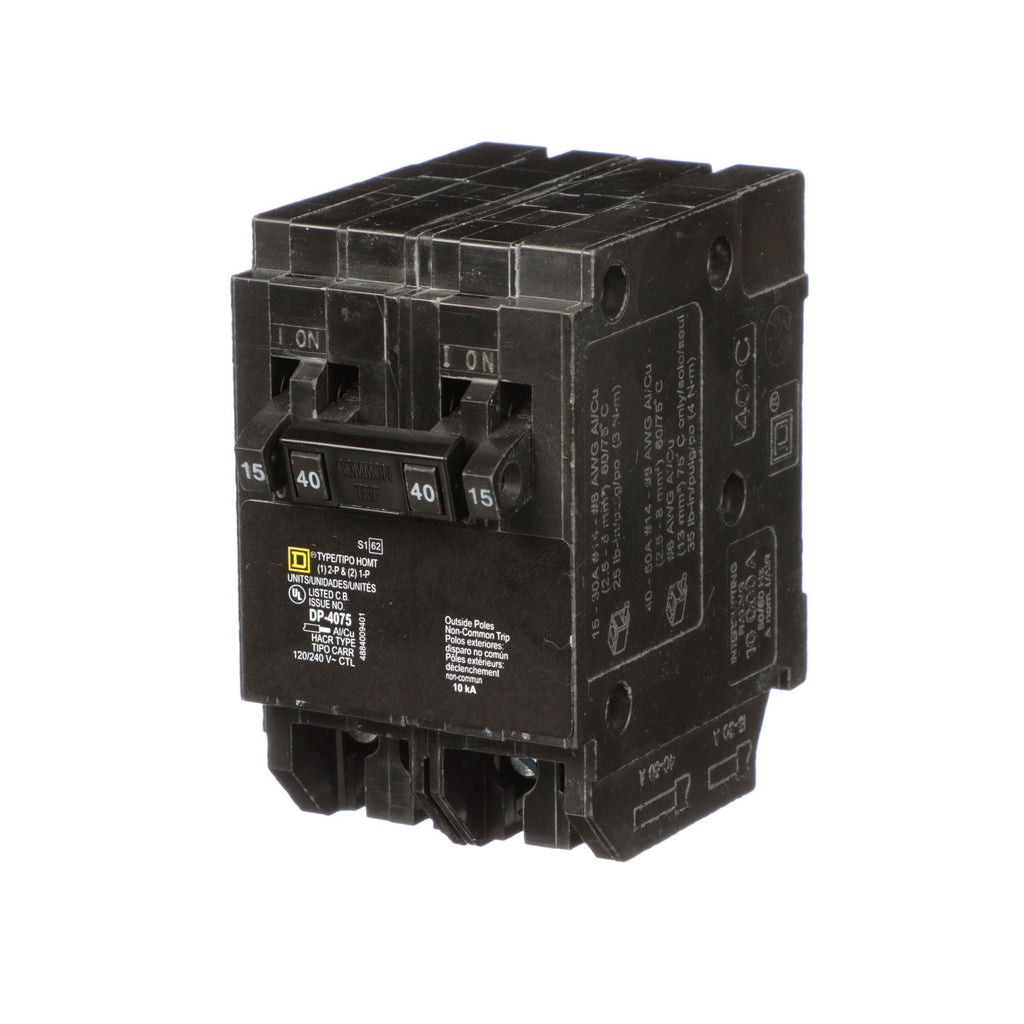

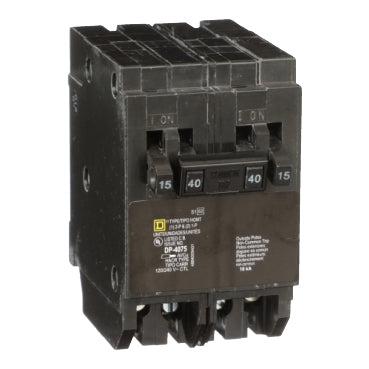

HOMT1515240 - Square D Homeline 40 Amp 240 Volt 4-Pole Quad Tandem Circuit Breaker 10kA Plug-In

HOMT1515240

HOMT1515240 is a Square D Homeline quad tandem circuit breaker designed for reliable circuit protection in residential and light commercial applications.This 4-pole breaker includes a 2-pole 40 Amp breaker and two 1-pole 15 Amp breakers rated for 120/240 VAC with a 10 kA interrupt rating. It features a plug-in mounting type compatible with Homeline load centers and thermal magnetic trip units for long-time and instantaneous protection. The breaker supports copper and aluminum wiring from 14 AWG to 6 AWG and is UL Listed and HACR rated.

• Manufacturer: Square D Homeline
• Part Number: HOMT1515240
• Amperage: 40A (2-pole), 15A (1-pole x2)
• Voltage: 120/240 VAC
• Poles: 4 (quad tandem configuration)
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA at 240V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Wire Size: 14 AWG to 6 AWG copper/aluminum (2-pole), 14 AWG to 8 AWG (1-pole)
• Dimensions: 3.13" H x 2" W x 2.98" D
• Certifications: UL Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT1515240
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 4
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901377023
• GTIN : 00785901377023
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.85
• Certification : UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 1x AWG 14 to AWG 6, Aluminum/Copper, 1x AWG 12 to AWG 6, Aluminum
